Speed:
4 passes: 32 sqm/h
6 passes: 20 sqm/h
Key Features:
| Feature | Benefit |
| Micro Piezo Tech | Non – Contact printing; produce realistic, delicate pictures with vivid depth |
| Gigabit Data Port | Eliminates transmission bottlenecks for large, high – definition files |
| 3 – Section Drying | Segmented heat control for immediate drying, reducing energy waste |
| Ai Compatibility | Smart design integrates seamlessly with multiple professional print RIP softwares |
| 3L Ink Bottles | Industrial – scale capacity for long -term, high – volume production cycles. |
High Accuracy: Achieve photo realistic detail with every pass.
Rapid Processing: Optimized for high-speed workflows without sacrificing quality.
Stable Architecture: A robust structural design built for long-term industrial durability.
Uninterrupted Workflow: The Gigabit Network Port ensures rapid data transmission of high-resolution files, while the Power Failure Continuity feature acts as a digital safety net, allowing the printer to resume immediately from its last position.
Industrial Endurance: Equipped with a Constant Pressure CISS (Continuous Ink Supply System) and four industrial-grade 3L ink bottles, it supports massive print runs without the frequent need for ink replacement.
Operational Parameters

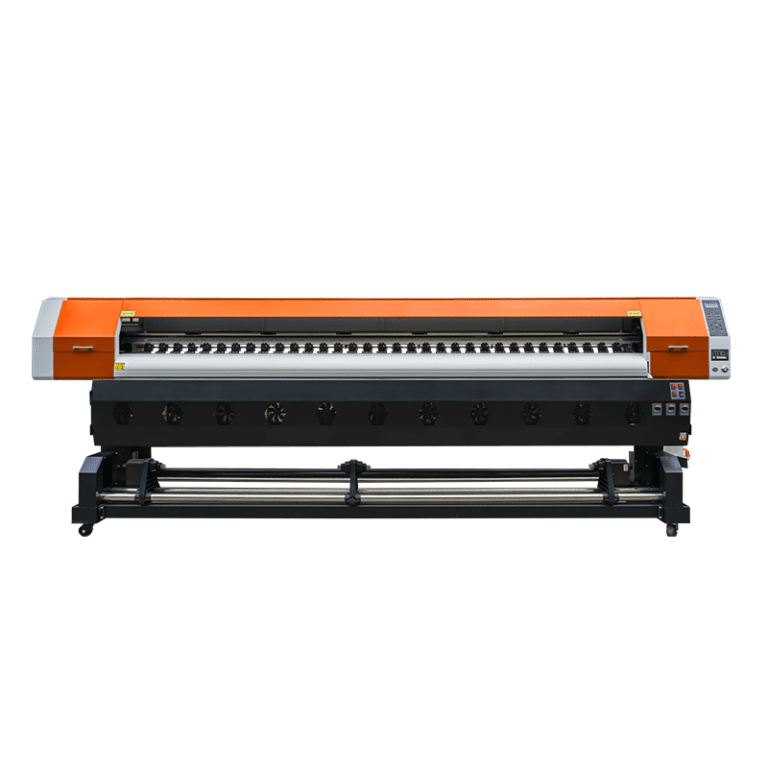

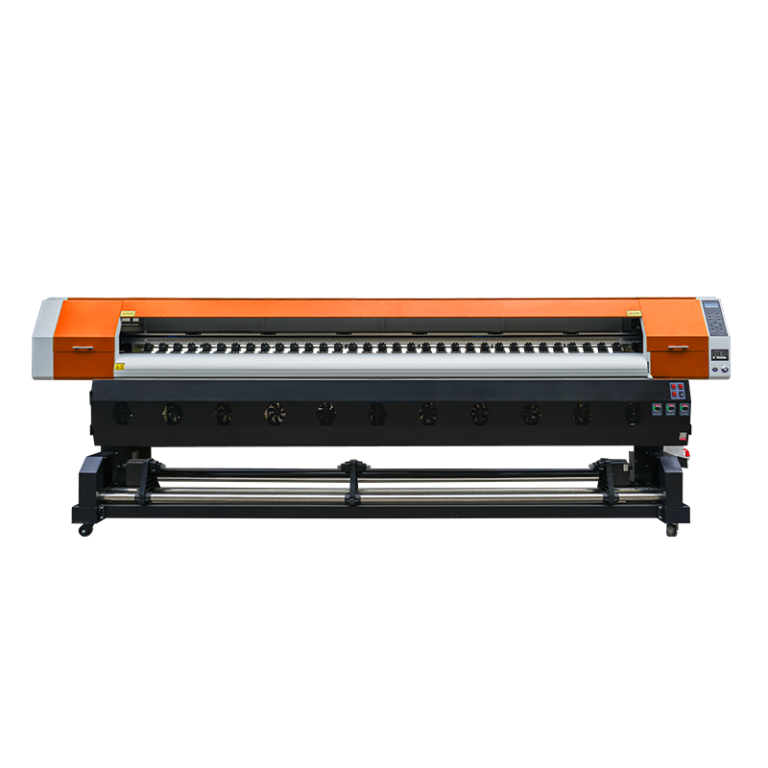

| Printer Model | HOLDWIN – A3202 E1/A1/F1080 |
| Printer Head | 2 X i3200 |
| Printing Media | PP / Photo paper / Light film / Adhesive / Eco solvent cloth / Flex banner / Car sticker |
| Feed Width | 3200 mm |
| Head Cleaning | automatic lifting and lowering ink station |
| Working Environment | Temperature: 18 – 30°C, Humidity: 40 – 60% |
| Ink Type | Eco – solvent, water based dye, sublimation |
| Equipment weight | Net weight: 720 kg |
| Interface | Gigabit Ethernet port |
| Media Transmission | Automatic damping feeding system |
| Heating Method | Front and back heating |
| Power Specifications | AC 220V, 50Hz/60Hz |
| Equipment Size | 4395 * 874 * 1475 mm |
| Package Size | 4490 * 950 * 1700 mm |
Q&A
Q: What is the model number of the first printer?
A: The model number of the first printer is HOLDWIN-3202.
Q: How many print heads does the second printer have?
A: The second printer has four i3200-E1/A1/F1080 print heads.
Q: What is the maximum width of the acceptable media for both printers?
A: Both printers accept media up to 3200 mm wide.
Q: What is the maximum thickness of the acceptable media for both printers?
A: The maximum thickness of the acceptable media for both printers is 1 mm.
Q: What is the maximum weight of the acceptable media for both printers?
A: The maximum weight of the acceptable media for both printers is 80 kg.
Q: What is the print resolution of both printers?
A: Both printers have a print resolution of 3600 dpi
Q: What types of ink can be used with the printers?
A: Both printers can use Eco Solvent Ink or Water base Dye Ink.
Q: What is the capacity of the ink supply system for each printer?
A: The first printer has a Continual Ink Supply System with a 1L ink tank, while the second printer has a 3L ink tank.
Q: How many color options do the printers offer?
A: Both printers offer either 4 colors (Cyan, Magenta, Yellow, Black) or 8 colors.
Q: What is the media heating system of both printers?
A: Both printers have an Integrated post heater & Infrared Dryer & Fan system.
Q: What is the interface of both printers?
A: Both printers have a LAN interface.
Q: What is the power supply of both printers?
A: Both printers require AC 220V±10%, 16A, 50/60 HZ.
Q: What is the RIP software of both printers?
A: Both printers use Riprint/PhotoPrint as their RIP software.
Q: What are the dimensions of the machines with their brackets?
A: The dimensions of the first printer with its bracket are 4395x874x1475mm, and the dimensions of the second printer with its bracket are 4490x950x1700mm
Q: What is the weight of the machines with their brackets?
A: The weight of the first printer with its bracket is 80kg, and the weight of the second printer with its bracket is 720kg.
Q: What is the power consumption of both printers during operation?
A: The power consumption of both printers during operation is 2800W.
Q: What is the recommended temperature range for the printers when they’re turned on?
A: The recommended temperature range for both printers when they’re turned on is 18℃-30℃.
Q: What are some examples of accessories that come with the printers?
A: Some examples of accessories that come with the printers include USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software.
