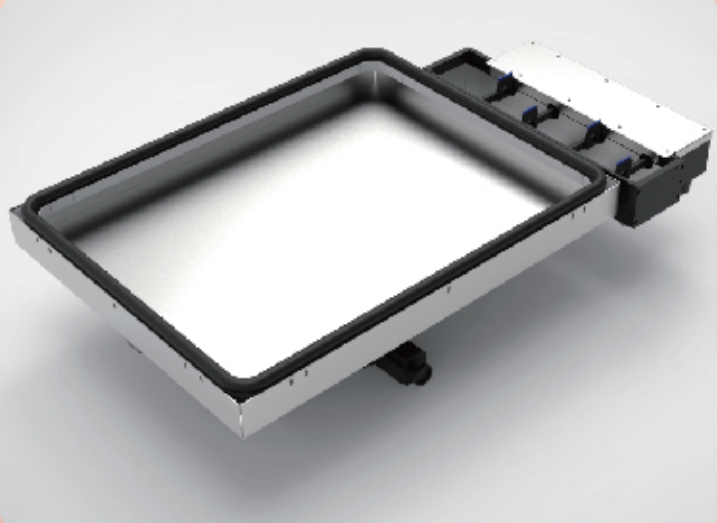

One-piece liquid silicone, corrosion and aging resistant; Slow leakage process, antioxidant coating, less ink residue, easier to clean

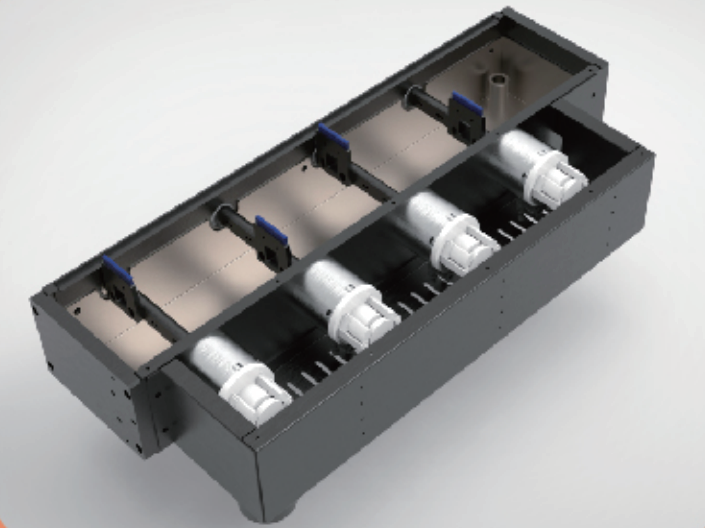

The internal layout of the three-layer independent space trolley effectively prevents flying ink and dust from entering; the industry-specific cooling fan optimizes the temperature of the circuit, and the exclusive water-cooling system precisely controls the temperature of the printhead.

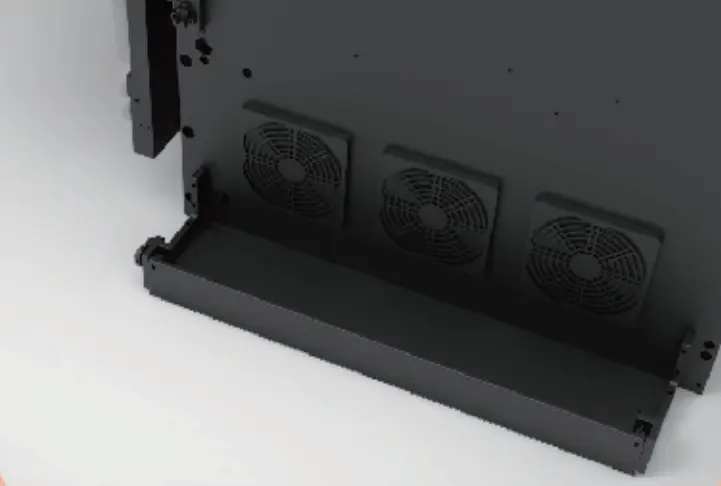

Three-stage fabric thickness detection system, triple anomaly monitoring structure, effective protection of printheads
Printhead original factory certified scraper, automatic adjustment of the height of the scraper, automatically adapted to the speed of the scraper, scraping ink without residue, does not hurt the spray surface layer, to protect the spray hole without damage.

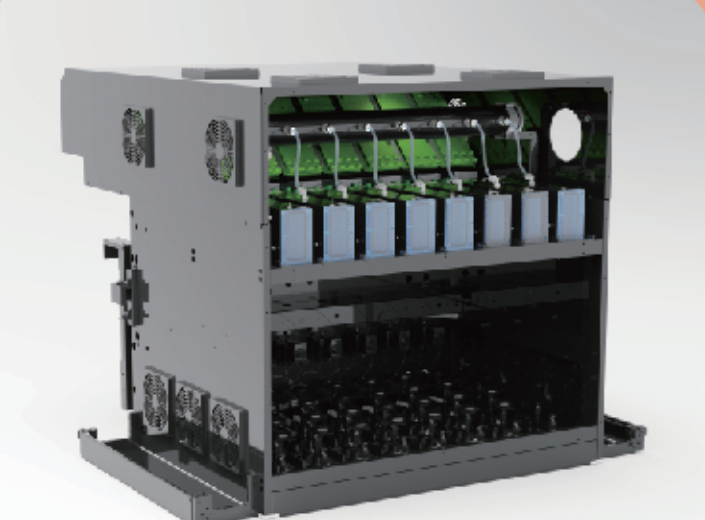

Max 32 industrial printheads, pigment/dye direct-to-textile printing solution
4~8 flexible color mode, 600r/hr. high speed production, fast response
Unique fully automatic fabric fuzz cleaning technology, remove lint without adhesion
One operator for multiple printers, easy production management remotely
Professional and eco-friendly inks, more textiles, more sustainable printing
| Model | HOLDWIN-SC1800 |
| Printhead Model | Kyocera |
| Print Heads | Up to 32 |
| Max. Resolution | 600*2400 dpi |
| Productivity | 500*1200 dpi (2pass): 600 M sq./H 600*1200 dpi (2pass) :470 M sq./H |
| Fabric Height | 0 – 30 mm |
| Feeding Method | Conveyor Belt continuous transmission, automatic constant tension feeding system, expanding format system, tension free fabric feeding frame (optional) |
| Max. Print Width | 1900mm |
| Max. Fabric Width | 1920mm |
| SIZE (L*W*H) | (Printer-only):4860mm x 2304mm x 2300mm (Package):4950mm x 2450mm x 2400mm |
| Ink Type | Reactive, Acid, Disperse, Pigment Ink |
| Ink color | CMYK + 4 extends color |
| Ink supply | Peristaltic pump ink supply, automatic degassing and automatic vacuum system |
| Fabrics | Cotton, linen, Silk, Nylon, Polyester, Blended, Elastic Fabric etc. |
| RiP | Neostampa, Texprint, Caldera |
| Working Environment | Temperature: 20C-28℃ (68*-77℃F) Relative Humidity: 45%-60% (non-condensing) |
| Water Supply | 0.6 MPa 10.9 m²/hr |
| Air Supply | 0.6MPa 10.15m²/hr (oil and vapor free) |
| Power Supply | Printer voltage: AC380V three-phase 14A (9KW) + 18.6A (12KW) 50Hz/60Hz
Dryer voltage: AC380V three-phase 22A (15.9kW) 50Hz/60Hz
Dryer voltage: AC380V three-phase system |
Holdwin is passionate about good products, good services, and good prices to let consumers know that choosing us is the right choice! For partners and end customers, we will provide one-on-one considerate smart services and provide you with more high-quality procurement solutions.
