Printing Speed: 6 Pass: 30 sqm/h, 8 Pass: 24 sqm/h
Micro piezoelectric inkjet printing technology

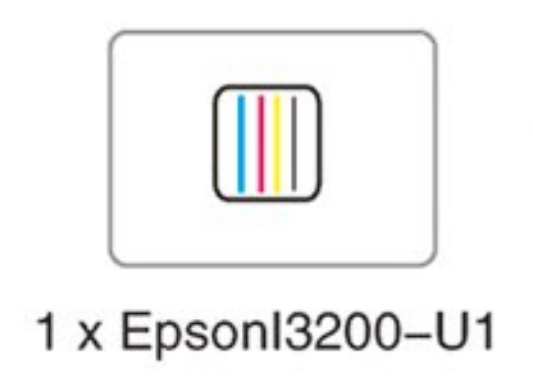

The HOLDWIN-1804UV is equipped with 4 Epson i3200 printing head, which adopts advanced board control technology, and the industrial-grade design ensures the durability of the print head. Epson i3200head, original authentic, high quality, more exquisite printing accuracy than picture quality output, more cost-effective.

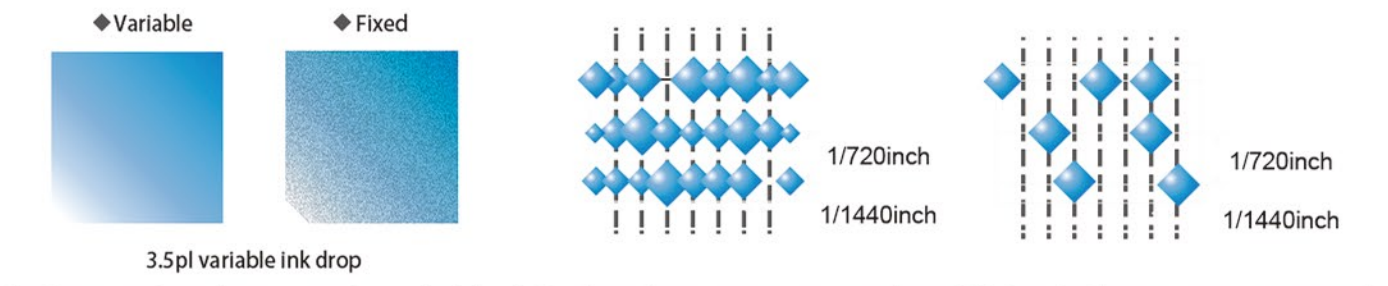

Intelligent inkjet printing technology and variable ink droplets ensure perfect UV printing output, improve picture quality, and greatly meet users’ requirements for printing quality and image quality.
High-precision printing imaging expert
UV is a printing process of curing ink through ultraviolet light, which can be used in various materials. The surface forms a high hardness and high gloss printing effect. Make UV printing have higher It is wear-resistant and waterproof, and it can present a brighter and three-dimensional color effect.
Features and advantages of UV printer
You can utilize this printer for various types of media — think about photo paper, PP with adhesive backing, oil-canvas, light fabric, and even transparent or ultra-clear materials. It’s excellent for printing items like car stickers, light-box films, canvas art, signage, banners… you name it. Want to make a bold impression? Transparent materials, laminates, or other unconventional surfaces are also entirely possible.
To sum it up: if you need printing on vinyl, film, canvas, sticker stock, or lightweight roll material — whether indoors or outdoors — this printer is here to meet your needs.
| Model | HOLDWIN-1804 UV | |
| Print head | Epson i3200-U1x4 | |
| Color | CMYK | |
| Printing mode | Piezoelectric inkjet printing | |
| Medium | Broad width | 1750 mm |
| Thickness | 1 mm | |
| Weight | 60 kg | |
| Print wide width | 1750 mm | |
| Ink cartridge | Kind | UV ink |
| Capacity | Direct supply system(1.5 liter ink barrel) | |
| Curing unit | Air-cooled UV lamp | |
| Printing accuracy | 2400 dpi | |
| Port | LAN | |
| Voltage | AC 220V±10%, 50/60 HZ | |
| Software | RIIN/PhotoPrint | |
| Machine size / weight | 3146X960X1760mm / 470KG | |
| Packaging size / weight | 3324X918X1092mm | |
| Environment | Temperature:18-30°C Humidity:40-60% | |
| Attachment | Data cable, paper press, user manual, waste ink cartridge, ink cartridge, RIP software, etc. |
Q&A
Q: What models of printers are we discussing?
A: We are discussing the HOLDWIN-1804 UV printer.
Q: What print head is utilized in these models?
A: Both models use the Epson 13200-U1 print head.
Q: What color scheme do these printers offer?
A: These printers offer a CMYK color scheme.
Q: What are the printing speeds for each model at their respective settings?
A: The HOLDWIN-1804 UV prints at 30 square meters per hour at 6-pass (720×1200 dpi), while the HOLDWIN-1801 UV prints at 24 square meters per hour at 8-pass (720×1800 dpi).
Q: What printing technology do these printers employ?
A: Both printers employ Piezoelectric inkjet printing technology.
Q: What is the maximum media width for each model?
A: The HOLDWIN-1804 UV can handle media up to 1750 mm wide
Q: What type of ink is used by these printers?
A: Both printers use UV ink.
Q: What is the ink cartridge capacity for these printers?
A: Both printers use a direct supply system with a 1.5 liter ink barrel.
Q: What curing unit is installed in these printers?
A: An air-cooled UV lamp is installed in both printers.
Q: What is the maximum printing accuracy for these printers?
A: Both printers have a maximum printing accuracy of 2400 dpi.
Q: What interface do these printers support?
A: Both printers support LAN connectivity.
Q: What are the voltage requirements for these printers?
A: Both require AC 220V±10%, 50/60 Hz.
Q: Which RIP software is compatible with these printers?
A: Both models are compatible with RIIN/PhotoPrint RIP software.
Q: What are the dimensions and weight of the machines?
A: The HOLDWIN-1804 UV measures3146X960X1760mm and weighs 470kg
Q: What are the dimensions and weight of the packaging for these models?
A: The HOLDWIN-1804 UV’s packaging measures 3324X918X1092mm
