HOLDWIN-1602/1802X

Name: HOLDWIN-1602/1802X
Brand: Holdwin
SKU: 4579
Rating: 5 (1 reviews)

Product Type: Large Format Inkjet Printer

Print Head: 2 x Epson i3200-A1 / E1

Ink Type: Water-based Dye / Eco-Solvent

Application: Light Box Posters, Car Stickers, Wall Cloth, Subway Ads

PRODUCT DETAILS

Overview:

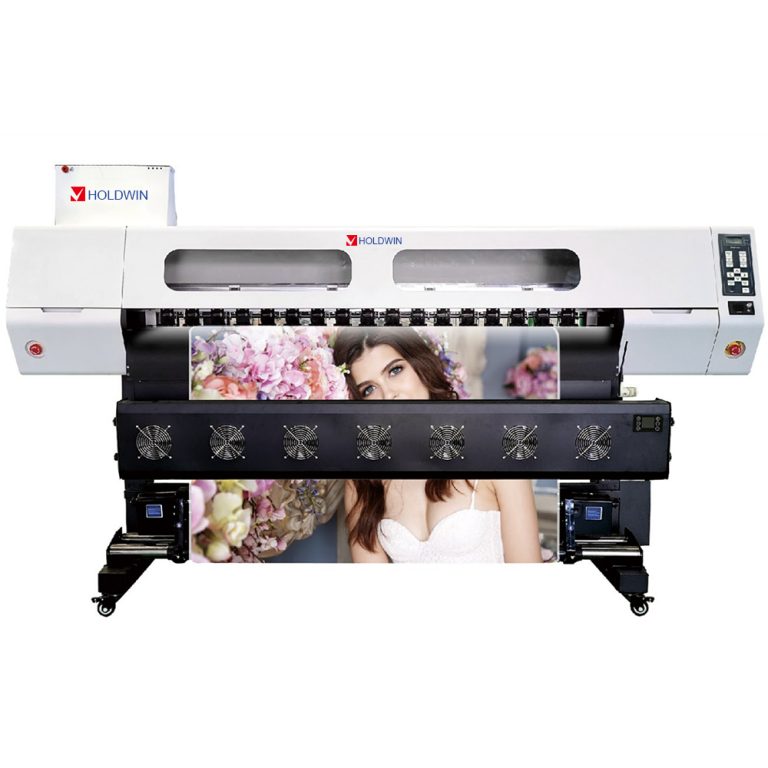

The HW-1602 / 1802X series is designed for print professionals who require the perfect balance between high-speed output and photorealistic detail. Available in both 1.6m (1602) and 1.8m (1802) widths, this machine is powered by dual Epson i3200-A1/E1 print heads.

Performance and Speed:

HW-1602X (Epsoni3200 – A1/E1 * 2) Printing speed:

3 pass – 360 * 1200 dpi	50 sqm/h
4 pass – 720 * 1200 dpi	38 sqm/h
6 pass – 720 * 1800 dpi	25 sqm/h

HW-1802X (Epsoni3200 – A1/E1 * 2) Printing speed:

3 pass – 360 * 1200 dpi	55 sqm/h
4 pass – 720 * 1200 dpi	40 sqm/h
6 pass – 720 * 1800 dpi	27 sqm/h

Features:

Flexible Operational Modes: Users have full control over the production workflow with the ability to choose between automatic or manual printing setups based on specific job requirements.
Real-Time Feeding Calibration: Maintain perfect alignment and accuracy without stopping; feeding calibration can be used during the printing process to save time and reduce waste.
Advanced Maintenance System: Features automatic continuous cleaning of ink tubes, ensuring the ink flow remains consistent and preventing clogs during long periods of operation.
Dual-Interface Control System: For maximum convenience, you can choose to control the printer directly from the dedicated printer panel or remotely via your computer workstation.

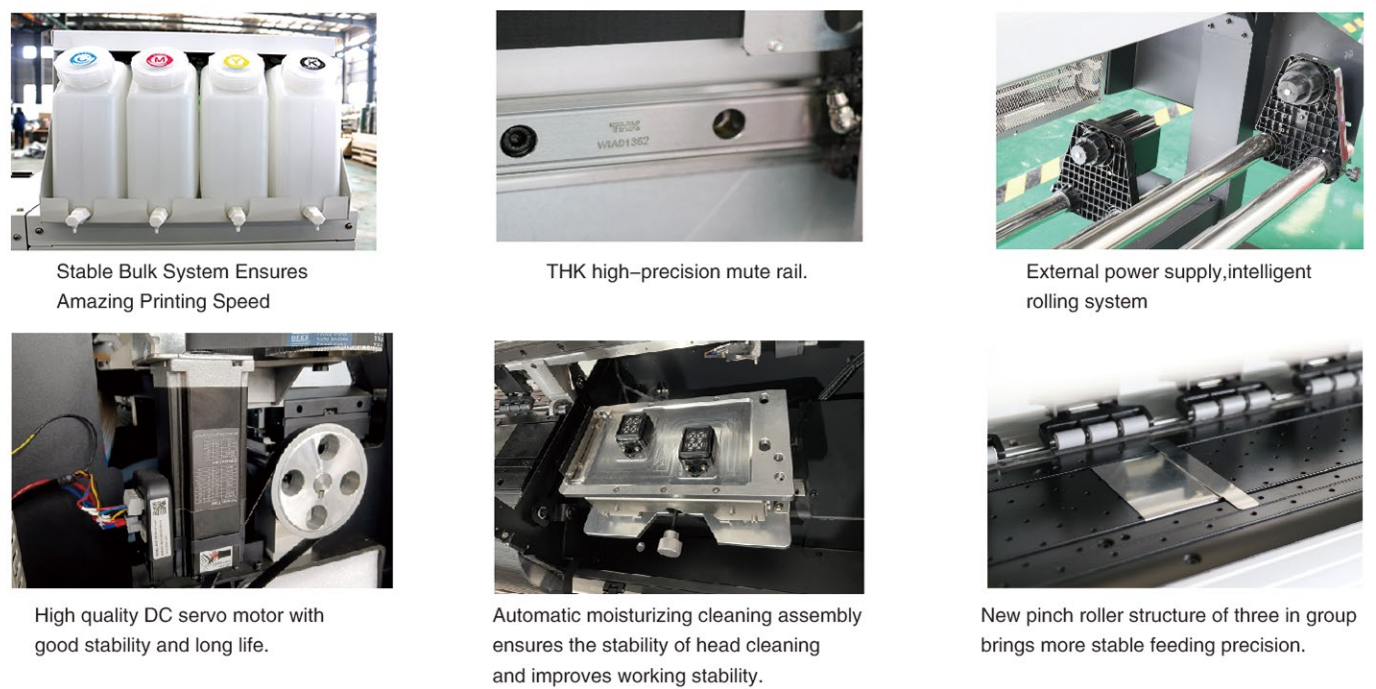

Industrial Stability: Built with high-quality DC Servo motors and THK silent rails for a quiet, stable, and long-lasting production environment.

Why opt for HOLDWIN-1602/1802X?

By combining Water-based Dye and Eco-Solvent capabilities with a smart control system, it allows businesses to switch between indoor light-box films and outdoor vinyl stickers with ease.

Applications

Suitable for: indoor and outdoor PP, indoor and outdoor photo paper, car sticker, water-based lightbox film, eco solvent lightbox film, canvas, non-woven, digital textile printing.

Technical Parameters

Model		HOLDWIN-1602X	HOLDWIN-1802X
Print head		Epson i3200-A1/E1×2
Color		CMYK/CMYKLCLMLKLLK
Printing speed		3-pass (360x1200dpi): 50 sqm/h	3-pass (360x1200dpi): 55 sqm/h
Printing mode		Piezoelectric inkjet printing
Medium	Broad width	1620 mm	1820 mm
	Thickness	1 mm
	Weight	60 kg
Print wide width		1600 mm	1800 mm
Ink cartridge	Kind	Eco Solvent Ink/Water base dye Ink/Sublimation Ink
Ink cartridge	Capacity	Direct supply system (1.5 liter ink barrel)
Power		Operating status: 6500W
Printing accuracy		3600 dpi
Port		LAN
Voltage		AC 220V±10%, 50/60 HZ
Software		Riprint
Machine size / weight		2585 x 685 x 1482 mm / 250 kg	2800 x 700 x 1500 mm / 280 kg
Packaging size / weight		2700 x 760x 760 mm / 280 kg	2920 x 760 x 760 mm / 310 kg
Environment	Power on	Temperature:15℃-32℃/Moisture content:35-80% (No condensation) Temperature:5℃-40℃/Moisture content:20-80% (No condensation)
Environment	Power off
Attachment		Data cable, paper press, user manual, waste ink cartridge, ink cartridge, RIP software, etc.

Q&A

Q: What is the model of the printer?
A: The model of the printer is HOLDWIN-1602X or HOLDWIN-1802X.

Q: Which print head does the printer use?
A: The printer uses an Epson 13200-A1/E1×2 print head.

Q: What color options are available for printing?
A: The printer supports CMYK, CMYKL, and CMYKLKL colors.

Q: What is the printing speed of the printer?
A: The printing speed of the printer is 3 pass (360x1200dpi): 50 sqm/h in 3 pass mode.

Q: What type of printing mode does the printer use?
A: The printer uses piezoelectric inkjet printing mode.

Q: What is the maximum thickness of the medium that can be printed on?
A: The maximum thickness of the medium that can be printed on is 1 mm.

Q: What is the weight limit for the medium that can be printed on?
A: The weight limit for the medium that can be printed on is 60 kg.

Q: What types of ink cartridges are compatible with the printer?
A: The printer is compatible with Eco Solvent Ink, Water base dye Ink, and Sublimation Ink.

Q: How much ink capacity does each ink cartridge have?
A: Each ink cartridge has a direct supply system with a 1.5-liter ink barrel.

Q: What is the power status required for operating the printer?
A: The power status required for operating the printer is 6500W.

Q: What is the printing accuracy of the printer?
A: The printing accuracy of the printer is 3600 dpi.

Q: What software is used to operate the printer?
A: The printer operates using Riprint or PhotoPrint software.

Q: What are the dimensions of the machine when it is fully assembled?
A: The dimensions of the machine when fully assembled are 2585x685x1482 mm/250 kg for the HOLDWIN-1602X model and 2800x700x1500 mm/280 kg for the HOLDWIN-1802X model.

Q: What are the dimensions of the packaging for the printer?
A: The dimensions of the packaging for the printer are 2700x760x760 mm/280 kg for the HOLDWIN-1602X model and 2920x760x760 mm/310 kg for the HOLDWIN-1802X model.

Q: What is the recommended temperature range for operating the printer?
A: The recommended temperature range for operating the printer is between 15℃ and 32℃.

Q: What is the recommended moisture content for operating the printer?
A: The recommended moisture content for operating the printer is between 35% and 80%, without condensation.

Q: What attachments come with the printer?
A: The attachments that come with the printer include data cable, paper press, user manual, waste ink cartridge, and ink.
