HOLDWIN-1804E1/A1

Name: HOLDWIN-1804E1/A1
Brand: Holdwin
SKU: 4610
Rating: 5 (1 reviews)

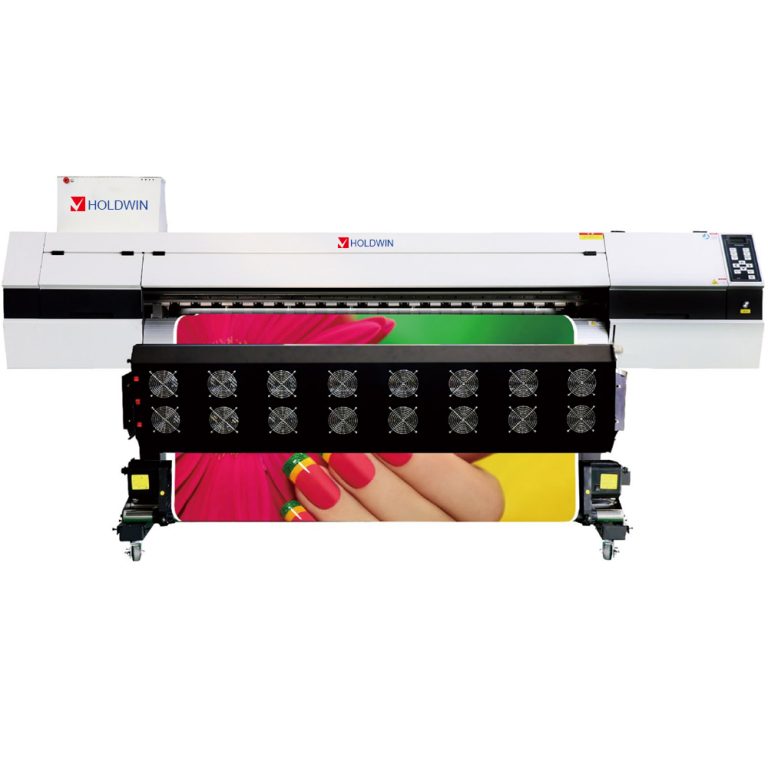

The HW-1804 is a high-performance, 1.8-meter industrial printer designed for versatility and precision.

Printer Model: HOLDWIN-1804E1/A1

Specification: Digital Micro-Piezoelectric wide Format eco-solvent printer

Feed width: 1800 mm

PRODUCT DETAILS

Features

Performance and Speed:

4-pass – 360*2400dpi: 64 sqm/h
6-pass – 720*1800dpi: 50 sqm/h

Key Features:

High-End Configuration & HD Printing: Utilizing advanced Micro-Piezoelectric Inkjet Technology, the HW-1804 produces delicate, life-like imagery.
Variable Ink Drop Technology: Automatically adjusts droplet sizes to ensure smooth gradients, rich layers, and photographic detail.
Stunning Resolution: Capable of up to 3600 DPI for crisp text and vibrant colors.
Industrial Stability: A robust, high-accuracy structure designed for vibration-free, high-speed operation.
AI & Intelligent Efficiency: AI Intelligent Workflow: Integrated software optimizations improve work efficiency and reduce manual intervention.
Universal Compatibility: Smart design ensures seamless integration with a wide variety of professional RIP and printing software.
High-Speed Data Transmission: Equipped with a Gigabit Network Port for lightning-fast file transfers; includes “Power Failure Resume” capabilities to prevent wasted media and time.
Advanced Hardware Design: Futuristic Aesthetics – A sleek, curvy exterior design that is both fashionable and ergonomic.
Intuitive Interface: A user-friendly control panel makes operation simple and accessible for all skill levels.
Smart Drying System: Three-section controllable heating (Pre, Mid, Post) allows for “Print & Dry” functionality, significantly reducing energy consumption.
Stable Ink Delivery: Features a constant-pressure Continuous Ink Supply System (CISS) with four high-capacity 3L ink bottles for uninterrupted, long-term production.

Equipment Characteristics

Why Choose Holdwin?

Worry-Free After-Sales: We provide comprehensive technical support and professional maintenance services to ensure your production never stops.
Multi-Purpose: Ideal for high-speed dye-sublimation (textiles), durable outdoor signage (eco-solvent), and premium photographic printing.

Applications

Suitable for: indoor and outdoor PP, indoor and outdoor photo paper, car sticker, water-based lightbox film, eco solvent lightbox film, canvas, non-woven, digital textile printing. The gorgeousness of eight colors will be relatively high, more expressive, and more suitable for wedding studios, high-end exhibitions, antique calligraphy and painting and other high-demand fields.

Technical Parameters

Printer Model	HOLDWIN – 1804 E1 / A1
Printing Media	PP / Photo paper / Light film / Adhesive / Eco solvent cloth / Flex banner / Car Sticker
Feed Width	1800mm
Head Cleaning	automatic lifting and lowering ink station
Working Environment	Temperature: 18 – 30°C, Humidity: 40 – 60%
Ink Color	Four colors (C/M/Y/K)
Equipment Weight	Net weight: 747Kg
Interface	Gigabit Ethernet port
Media Transmission	Automatic damping feeding system
Equipment Size	3146 * 960 * 1760 mm
Package Size	3324 * 918 * 1092 mm
Heating Method	Front, middle and back heating
Power Specifications	AC 220V, 50 Hz / 60 Hz
Power Specifications	1900w(Dryer6600w)(220V-10A/11óv-20A)

Q&A

Q: What is the model of the printer?
A: The model of the printer is HOLDWIN-1804.

Q: How many print heads does the printer have?
A: The printer has four i3200-E1/A1 print heads.

Q: What is the printing technology used by the printer?
A: The printer uses piezoelectric inkjet technology.

Q: What is the maximum width of the acceptable media?
A: The maximum width of the acceptable media is 1800 mm.

Q: What is the maximum thickness of the acceptable media?
A: The maximum thickness of the acceptable media is 1 mm.

Q: What is the maximum weight of the acceptable media?
A: The maximum weight of the acceptable media is 60 kg.

Q: What is the print resolution of the printer?
A: The print resolution of the printer is 3600 dpi.

Q: What is the printing width of the printer?
A: The printing width of the printer is 210-1800 mm.

Q: What types of ink can be used with the printer?
A: The printer can use Eco Solvent Ink, Sublimation Ink, or Water base Dye Ink.

Q: What is the capacity of the ink supply system?
A: The ink supply system has a capacity of 3L ink tank.

Q: How many colors of ink can be used with the printer?
A: The printer can use either 4 colors (Cyan, Magenta, Yellow, Black) or 8 colors.

Q: What is the media heating system of the printer?
A: The media heating system of the printer is an Integrated post heater & Infrared Dryer & Fan system.

Q: What is the interface of the printer?
A: The interface of the printer is LAN.

Q: What is the power supply of the printer?
A: The power supply of the printer is AC 220V±10%, 16A, 50/60 HZ.

Q: What is the RIP software of the printer?
A: The RIP software of the printer is Riprint / PhotoPrint.

Q: What are the dimensions of the machine with its bracket?
A: The dimensions of the machine with its bracket are 3146X960X1760mm

Q: What is the weight of the machine with its bracket?
A: The weight of the machine with its bracket is 400 kg.

Q: What are the dimensions of the package with its bracket?
A: The dimensions of the package with its bracket are 3350×760×1050 mm.

Q: What is the weight of the package with its bracket?
A: The weight of the package with its bracket is 450 kg.

Q: What is the power consumption of the printer during operation?
A: The power consumption of the printer during operation is 7500W.

Q: What is the recommended temperature range for the printer when it’s turned on?
A: The recommended temperature range for the printer when it’s turned on is 18℃-30℃.

Q: What is the recommended humidity range for the printer when it’s turned on?
A: The recommended humidity range for the printer when it’s turned on is 40-60% (no condensation).

Q: What are some examples of accessories that come with the printer?
A: Some examples of accessories that come with the printer include USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software.
