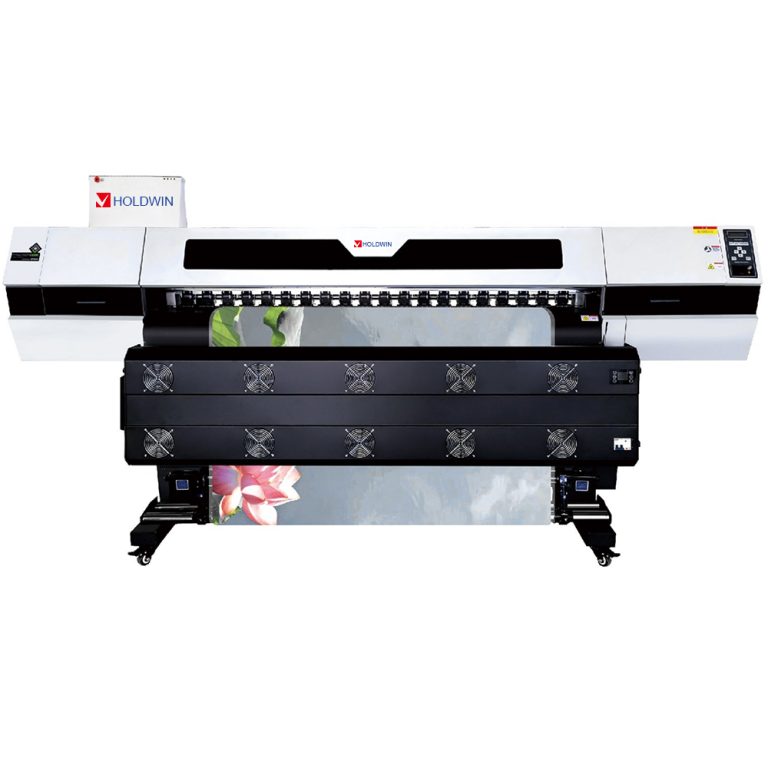

The HOLDWIN HW-1804/1806A series represents the next generation of eco-solvent and water-based printing. Designed for versatility and industrial-grade durability, these 1.8m printers deliver photographic quality at high speed.
Print Head: 4/6 i3200 – E1/A1
Ink Type: Eco solvent ink / Sublimation ink / Water base Dye ink

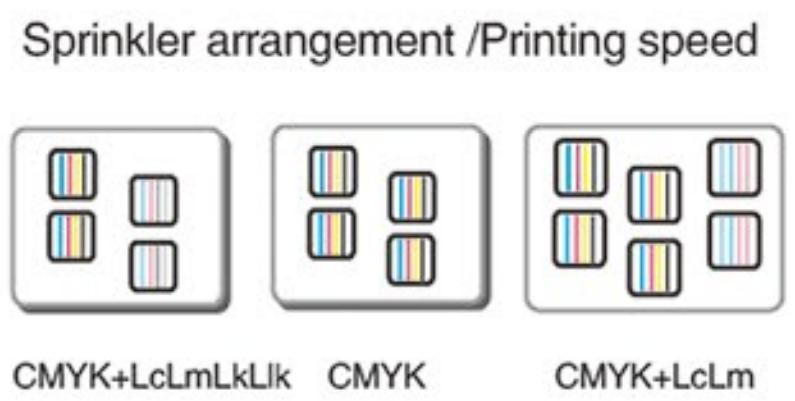

4 colors (Epson i3200 – A1 /E1 * 4) printing speed:
| 4-pass – 360 * 2400 dpi | 84 sqm/h |
| 6-pass – 720 * 1800 dpi | 62 sqm/h |
| 8-pass – 720 * 2400 dpi | 46 sqm /h |
8 colors (Epson i3200 – A1 /E1 * 4) printing speed:
| 4-pass – 360 * 2400 dpi | 42 sqm/h |
| 6-pass – 720 * 1800 dpi | 31 sqm/h |
| 8-pass – 720 * 2400 dpi | 23 sqm/h |
6 colors (Epson i3200 – A1 /E1 * 4) printing speed:
| 4-pass – 360 * 2400 dpi | 65 sqm/h |
| 8-pass – 720 * 2400 dpi | 33 sqm/h |
Equipment Characteristics
| Model | HOLDWIN-1804A | HOLDWIN-1806A | |
| Print Head | 4 i3200-E1/A1 | 6 i3200-E1/A1 | |
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 1820 mm | |
| Thickness | 1 mm | ||
| Weight | 60 kg | ||
| Print Resolution | 3600 dpi | ||
| Printing Width | 210-1800 mm | ||
| Ink | Type | Eco Solvent Ink / Sublimation Ink / Water base Dye Ink | |
| Capacity | Continual Ink Supply System(3L ink tank) | ||
| Color | 4 colors (Cyan, Magenta, Yellow, Black) / 6colors / 8colors | ||

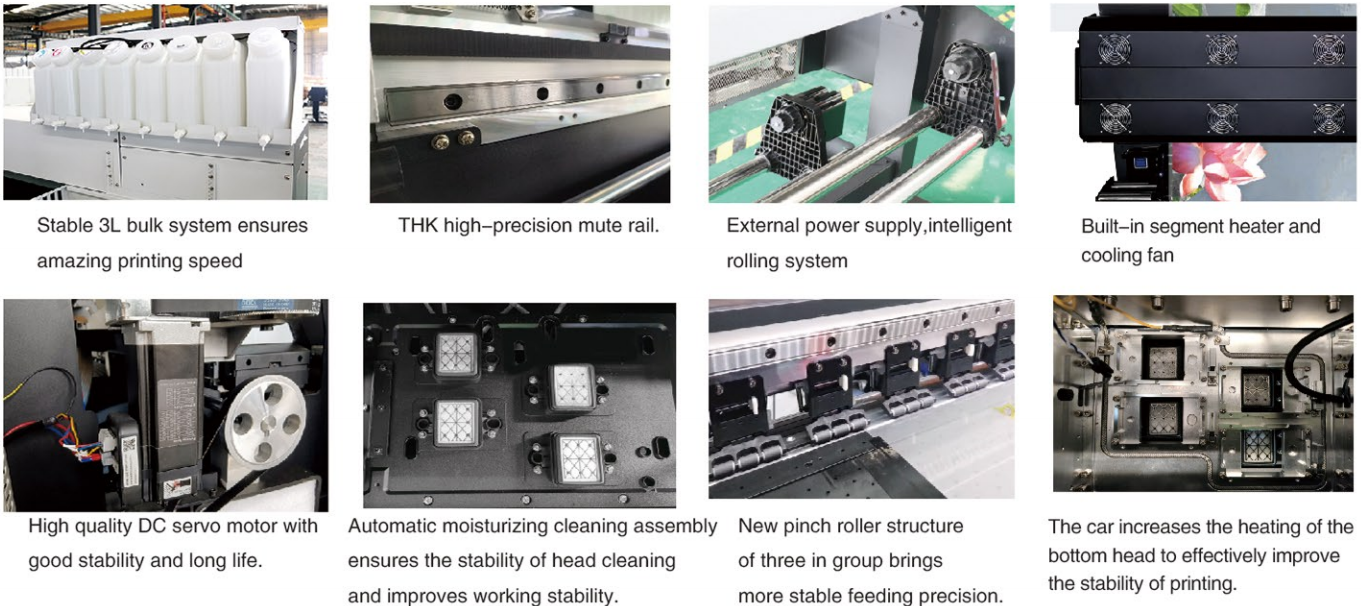

| Media Heating System | Integrated post heater &Infrared Dryer & Fan system | ||
| Interface | LAN | ||
| Power Supply | AC 220V ± 10%, 16A, 50/60 Hz | ||
| RIP | Riprint | ||
| Machine size/weight (with bracket) | 2670(W)×740(D)x1613(H)mm /400kg | ||
| Package size/weight (with bracket) | 2930(W)×760(D)×1170(H)mm /450kg | ||
| Power | Operating status: 7500W | ||
| Environment | Power on | Temperature:15℃-32℃/Moisture content:35-80%(No condensation) | |
| Power off | Temperature:5℃-40℃/Moisture content:20-80%(No condensation) | ||
| Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||
Q&A
Q: What are the models of the printers mentioned in the table?
A: The models are HOLDWIN-1804A and HOLDWIN-1806A.
Q: How many print heads does the HOLDWIN-1804A model have?
A: The HOLDWIN-1804A model has 4 i3200-E1/A1 print heads.
Q: What printing technology do both models use?
A: Both models use Piezoelectric Inkjet printing technology.
Q: What is the maximum width of the media that can be printed on?
A: The maximum width of the media is 1820 mm.
Q: What is the maximum thickness of the media that can be printed on?
A: The maximum thickness of the media is 1 mm.
Q: What is the weight limit for the media that can be handled by the HOLDWIN-1804A model?
A: The HOLDWIN-1804A model can handle media weighing up to 60 kg.
Q: What types of ink are compatible with the printers?
A: The printers are compatible with Eco Solvent, Sublimation Ink, and Water base Dye Ink.
Q: What is the capacity of the ink supply system?
A: The ink supply system is a continual system with a 3L ink tank.
Q: How many colors of ink can be used?
A: The number of ink colors that can be used is 4 (Cyan, Magenta, Yellow, Black), 6, or 8.
Q: What is included in the media heating system?
A: The media heating system includes an integrated post heater, Infrared Dryer, and fan system.
Q: What interface is available for connecting to the printer?
A: The available interface is LAN.
Q: What is the power supply requirement for the printer?
A: The power supply requirement is AC 220V ±10%, 16A, at 50/60 Hz.
Q: What RIP software is mentioned as being compatible?
A: The compatible RIP software includes Riprint.
Q: What are the dimensions and weight of the HOLDWIN-1804A model with its bracket?
A: The HOLDWIN-1804A model with its bracket measures 2670(W)×740(D)×1613(H)mm and weighs 400kg.
Q: What is the recommended operating temperature and moisture content when the printer is powered on?
A: The recommended operating temperature is 15℃-32℃ and the moisture content should be 35-80% (no condensation).
