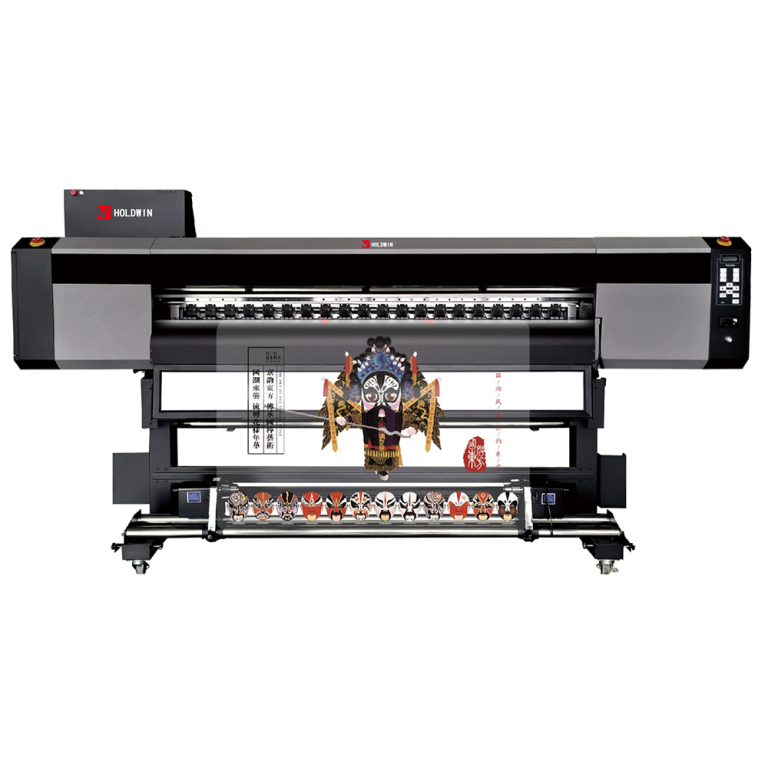

HOLDWIN-1804E UV

Name: HOLDWIN-1804E UV
Brand: Holdwin
SKU: 4539
Rating: 5 (1 reviews)

Printer Type: Holdwin UV roll – to – roll

Print Heads: Epson i3200-U1 * 4

Specification: Color White color scrub Glid LED – UV Inkjet printer

Printing Width: 1800 mm

PRODUCT DETAILS

Features

4* Epson I3200 – U1 (CMYK+W +CMYK/CMYK+W+CMYK+V1/ CMYK+W+CMYK+V/CMYK+W+CMYK+V+V1):

720*900 dpi	18 sqm/h
720*1200 dpi	12 sqm/h

4* Epson I3200 – U1 (CMYK):

720*900 dpi	33 sqm/h
720*1200 dpi	25 sqm/h

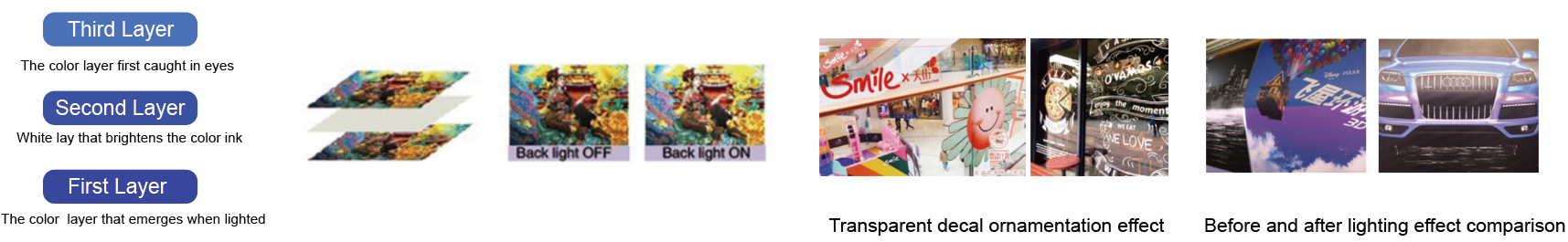

Layered printing delivers finer, more refined output

With the interior light switched on, the three-layer printing technology — Color + White + Color — creates a magical backlit transformation. The design changes visually from day to night, showcasing a modern advertising technique that significantly enhances visual appeal and adds value to your display.

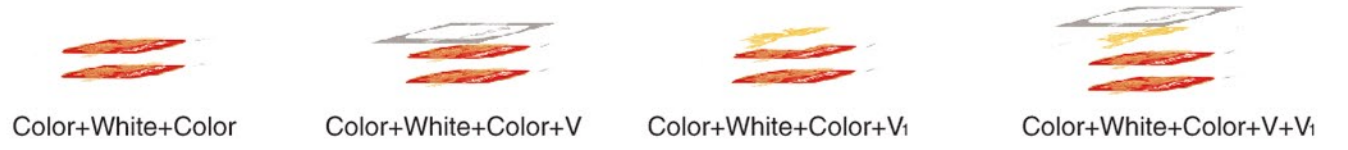

Advanced 3–5 layer printing for multi-effect output in one go

The 3–5 layer printing system enables multiple effects to be formed in a single print cycle.
Combinations such as Color–White–Color + Hollow, Color + Hollow + Bronzing, Color–White–Color + Frosting, Color–White–Color + Bronzing + Frosting, and many more can be achieved seamlessly.

Using the HOLDWIN-1804E UV, these complex multi-layer effects can be printed and shaped at once—perfect for ultra-transparent glass sticker applications. This meets diverse customer requirements, introduces new creative advertising styles, and increases the overall value of your visual displays.

Applications

Ultra-transparent glass stickers: Ideal for malls, showrooms, storefronts, and offices to create premium day–night visual effects.
Backlit advertising graphics: Perfect for lightboxes, menu boards, retail displays, and illuminated signage.
Window decoration films: Used for branding, privacy films, and decorative patterns on glass surfaces.
High-end advertising displays: Great for exhibitions, product launches, and luxury brand promotions requiring layered visual effects.
Interior décor graphics: Prints on glass partitions, acrylic panels, and decorative panels for hotels, offices, and homes.
Retail branding materials: Suitable for POP displays, promotional visuals, and storefront identity graphics.
Special-effect labels and stickers: Multi-layer effects like bronzing, frosting, and hollow printing for premium product labeling.
Architectural and commercial glass applications: Provides durable, vibrant designs for building interiors, lobbies, and corporate spaces.

Technical Parameters

Model		HOLDWIN-1804E UV
Print Head		4 Epson 13200-U1 Print Heads
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	1820 mm
	Thickness	1 mm
	Weight	60 kg
Printing Width		1800 mm
Ink	Type	UV Ink
	Capacity	Continual Ink Supply System(1.5L ink tank)
	Color	CMYK/CMYK+W/CMYK+W+CMYK/Scrub/Gild
Printing Resolution		Maximum 2400 dpi
Ink Curing Unit		Dual UV LED Lamps (Water-cooling UV lamp)
Interface		LAN
Power Supply		AC 220V ± 10%, 16A, 50/60 Hz
RIP		Riprint /PhotoPrint
Machine size / weight		3211×910×1634 mm / 420 kg
Package size / weight		3350×760×1050 mm / 480 kg
Environment	Power on	Temperature:15℃ to 32℃/Humidity:35 to 80%(no condensation)
Environment	Power off	Temperature:5℃ to 40℃/Humidity:20 to 80%(no condensation)
Accessories		USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.

Q&A

Q: What is the model of the printer?
A: The model of the printer is HOLDWIN-1804E UV.

Q: How many print heads does the HOLDWIN-1804E UV have and what type are they?
A: The HOLDWIN-1804E UV has 4 Epsonl3200-U1 print heads.

Q: What printing technology does the HOLDWIN-1804E UV use?
A: The HOLDWIN-1804E UV uses Piezoelectric Inkjet printing technology.

Q: What is the maximum width of media that the HOLDWIN-1804E UV can handle?
A: The HOLDWIN-1804E UV can handle media up to 1820 mm in width.

Q: What is the maximum thickness of media that the HOLDWIN-1804E UV can print on?
A: The HOLDWIN-1804E UV can print on media up to 1 mm thick.

Q: What is the weight of the printer itself?
A: The printer weighs 60 kg.

Q: What is the printing width of the HOLDWIN-1804E UV?
A: The printing width of the HOLDWIN-1804E UV is 1800 mm.

Q: What type of ink does the HOLDWIN-1804E UV use?
A: The HOLDWIN-1804E UV uses UV Ink.

Q: What is the capacity of the ink supply system?
A: The HOLDWIN-1804E UV has a Continual Ink Supply System with a 1.5L ink tank.

Q: What color configurations are available for printing?
A: The color configurations available for printing include CMYK, CMYK+W, CMYK+W+CMYK, Scrub, and Gild.

Q: What is the maximum printing resolution of the HOLDWIN-1804E UV?
A: The maximum printing resolution is 2400 dpi.

Q: What type of ink curing unit does the HOLDWIN-1804E UV have?
A: The HOLDWIN-1804E UV has Dual UV LED Lamps (Water-cooling UV lamp).

Q: What interface does the HOLDWIN-1804E UV support for data transfer?
A: The HOLDWIN-1804E UV supports LAN interface for data transfer.

Q: What are the power supply requirements for the HOLDWIN-1804E UV?
A: The HOLDWIN-1804E UV requires AC 220V ±10%, 16A, at 50/60 Hz.

Q: Which RIP software options are compatible with the HOLDWIN-1804E UV?
A: The HOLDWIN-1804E UV is compatible with Riprint / PhotoPrint RIP software.

Q: What are the dimensions and weight of the machine?
A: The machine size is 3211×910×1634 mm and it weighs 420 kg.

Q: What are the dimensions and weight of the packaging?
A: The package size is 3350×760×1050 mm and it weighs 480 kg.

Q: What are the environmental conditions required when the HOLDWIN-1804E UV is powered on?
A: When powered on, the HOLDWIN-1804E UV requires a temperature range of 15℃ to 32℃ and humidity of 35 to 80% (no condensation).

Q: What are the environmental conditions required when the HOLDWIN-1804E UV is powered off?
A: When powered off, the HOLDWIN-1804E UV can tolerate a temperature range of 5℃ to 40℃ and humidity of 20 to 80% (no condensation).

Q: What accessories come with the HOLDWIN-1804E UV?
A: The accessories included are a USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
