10*KM1024a (CMYK):
| 479*1440 dpi | 40 sqm/h |
| 479*2160 dpi | 20 sqm/h |
10* KM1024a (CMYK+W+CMYK):
| 479*1440 dpi | 20 sqm/h |
| 479*2160 dpi | 10 sqm/h |

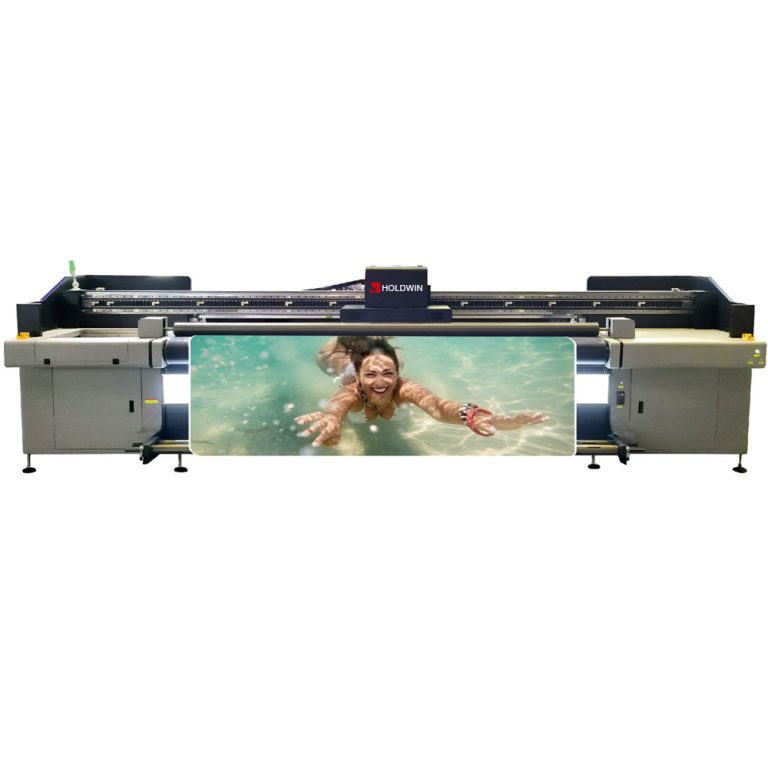

A 3200 UV Pro typically refers to a large-format UV roll-to-roll or hybrid printer.
LED curing doesn’t produce much heat. So, heat-sensitive media can be printed and cured without material damage. The curing power is adjustable. Besides, UV-LED curing system also has a longer lifetime. And it is maintenance free and eco-friendly.
Three lines of print heads in a staggered layout achieves the highest productivity and allows for various applications with optional color modes including CMYK, W+CMYK, CMYK+W, CMYK+W+CMYK (three layers) and W+CMYK+V (three layers).
Advantages:
User-Friendly Operation
Includes automatic media alignment, tension control, and an easy-to-use interface for quick setup and efficient workflow.
Perfect for 24/7 Production
Built with a solid, heavy-duty frame and continuous operation capability for long printing runs.
Stable Printing with Precision Control
Equipped with industrial-grade printheads, reliable feeding system, and advanced negative pressure control for consistent and smooth output.
Low Maintenance Design
Self-cleaning nozzles, durable ink system, and efficient ink circulation help reduce downtime and extend printhead life.
One machine for multiple printing solutions under different color modes, can meet requirements from different customers. It can also replace some high-end ecosolvent printers which can be efficient and environmentally friendly.
Wide applications in light box, soft film, 3P fabric, scraping fabric, vinyl, light film, wallpaper, wall fabric, canvas, silk fabric, leather and etc.
| Model | HOLDWIN-3200H | |
| Print Head | 10 Konica-1024a Print Heads (RicohG5/G6 Optional) | |
| Printing Technology | Gray scale piezoelectric inkjet technology | |
| Acceptable Media | Width | 3250 mm |
| Thickness | 1-35 mm | |
| Weight | 200kg paper tube, standard front and rear gas rise shafts | |
| Printing Width | 3200 mm | |
| Ink | Type | LED UV Ink |
| Capacity | Continual Ink Supply Systems (2.5L Ink Tank) | |
| Color | CMYK/W | |
| Color Control | It conforms to the international standard ICC color control, with curve and density adjustment functions. | |
| Ink Curing Unit | Dual UV LED Lamps (Water-cooling UV lamp) | |
| Interface | AND | |
| Power Supply | AC 220V ± 10%, 16A, 50/60 Hz | |
| RIP | Royal | |
| Machine size / weight | 5720x1840x1590 mm / 2000 kg | |
| Package size / weight | 5910x1930x1940 mm / 2200 kg | |
| Environment | Power on | Temperature:59F to90F[15C to 32C](68 F[20C]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41F to 104 F[5C to 40C]/Humidity:20 to 80%(no condensation) | |
| Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. |
Q&A
Q: What is the model number of the printing machine?
A: The model number is HOLDWIN-3200H.
Q: How many Konica-1024a print heads are used in this machine?
A: Ten Konica-1024a print heads are used in this machine.
Q: What type of inkjet technology is used by the machine?
A: Gray scale piezoelectric inkjet technology is used by the machine.
Q: What is the acceptable media width for this printer?
A: The acceptable media width is 3250 mm.
Q: What is the maximum thickness of paper that can be printed on using this machine?
A: The maximum thickness of paper that can be printed on using this machine is 35 mm.
Q: What is the weight capacity of the paper tube used in this machine?
A: The weight capacity of the paper tube used in this machine is 200 kg.
Q: What is the printing width of the machine?
A: The printing width of the machine is 3200 mm.
Q: What type of ink is used in this machine?
A: LED UV ink is used in this machine.
Q: What is the capacity of the ink tank used in this machine?
A: The capacity of the ink tank used in this machine is 2.5 L.
Q: What color options are available with this machine?
A: CMYK/W colors are available with this machine.
Q: Does this machine conform to international standards for color control?
A: Yes, this machine conforms to international standard ICC color control.
Q: Are there any curve and density adjustment functions available with this machine?
A: Yes, curve and density adjustment functions are available with this machine.
Q: What type of ink curing unit is used in this machine?
A: Dual UV LED lamps (water-cooling UV lamp) are used in this machine.
Q: What interface is used for connecting this machine to a computer?
A: LAN is used as the interface for connecting this machine to a computer.
Q: What is the power supply requirement for this machine?
A: AC 220V ±10%, 16A, 50/60 Hz is required for this machine.
Q: What software is used for RIP processing with this machine?
A: PhotoPrint software is used for RIP processing with this machine.
Q: What is the size and weight of the machine when it is turned off?
A: The size of the machine when it is turned off is 5910x1930x1940 mm and its weight is 2200 kg.
Q: What is the size and weight of the package when it is shipped?
A: The size of the package when it is shipped is 5910x1930x1940 mm and its weight is 2200 kg.
Q: What is the recommended temperature range for operating this machine?
A: The recommended temperature range for operating this machine is 15C to 32C.
Q: What is the recommended humidity range for operating this machine?
A: The recommended humidity range for operating this machine is 35 to 80% (no condensation).
