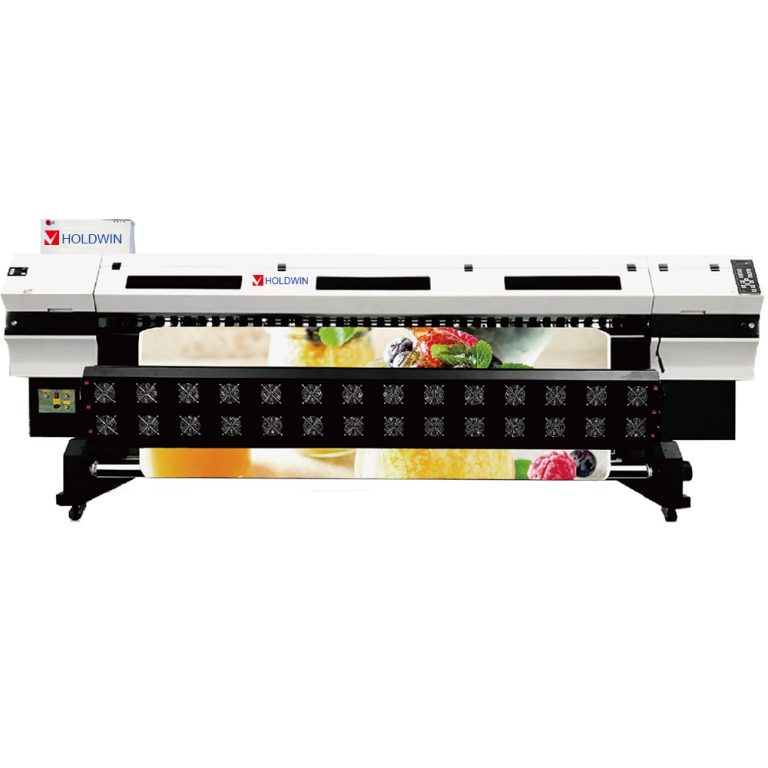

The HOLDWIN-3204E1/A1 i perfectly balances a heavy-duty industrial chassis with smart automation and precision piezoelectric technology to deliver gallery-quality graphics at scale.
Key Specification:
Product Type: Holdwin Eco Solvent Printer
Head: 4 * I3200-E1/A1
Width: 3200 mm
PRODUCT EFFICIENCY:
Print Speed: 4pass: 64 sqm/h, 6pass: 50 sqm/h
Max Printing Width: 3200mm (Ideal for seamless super-wide graphics)
Ink System: High-capacity CMYK Continuous Ink Supply (CISS)
PRODUCT DETAILS
Equipment Parameters
This commercial-grade printer is compatible with a wide range of digital substrates:
Signage & Advertising: Flex banners, mesh, and outdoor vinyl.
Vehicle Graphics: High-tack car stickers and transit wraps.
Interior Décor: Custom wallpaper, photo paper, and textile backdrops.
Specialty Media: Light film (backlit), adhesive vinyl, and glass decoration .

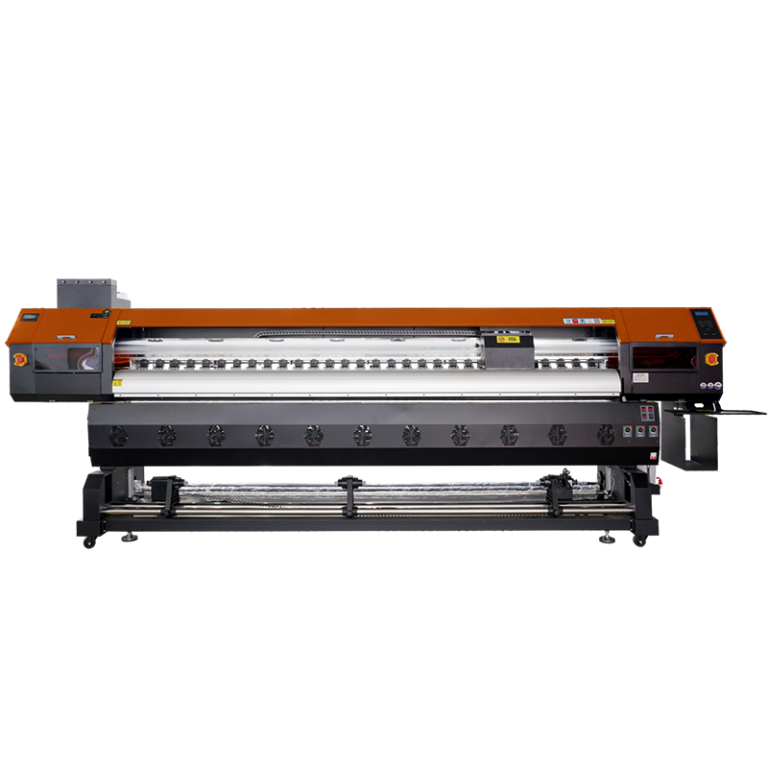

| Printer Model | HOLDWIN – 3204 E1/A1 |
| Printing Media | PP / Photo Paper / Light Film / Adhesive / Flex banner / Car sticker |
| Feed Width | 3200 mm |
| Head Cleaning | automatic lifting and lowering ink station |
| Working Environment | Temperature: 18 – 30°C Humidity: 40-60% |
| Ink Color | Four colors (C / M / Y / K) |
| Equipment Weight | Net Weight 920kg |
| Interface | Gigabit Ethernet Port |
| Media Transmission | Automatic damping feeding system |
| Heating Method | Front, middle and back heating |
| Power Specification | AC 220V, 50 Hz/60Hz |
| Equipment Size | 4656 x 910 x 1755 mm |
| Package Size | 4750 x 1000 x 1820 mm |
Q&A
Q: What is the model number of the first printer?
A: The model number of the first printer is HOLDWIN-3204.
Q: How many print heads does the second printer have?
A: The second printer has four i3200-E1/A1 print heads.
Q: What is the maximum width of the acceptable media for both printers?
A: Both printers accept media up to 3200 mm wide.
Q: What is the maximum thickness of the acceptable media for both printers?
A: The maximum thickness of the acceptable media for both printers is 1 mm.
Q: What is the maximum weight of the acceptable media for both printers?
A: The maximum weight of the acceptable media for both printers is 80 kg.
Q: What is the print resolution of both printers?
A: Both printers have a print resolution of 3600 dpi
Q: What types of ink can be used with the printers?
A: Both printers can use Eco Solvent Ink or Water base Dye Ink.
Q: What is the capacity of the ink supply system for each printer?
A: The first printer has a Continual Ink Supply System with a 1L ink tank, while the second printer has a 3L ink tank.
Q: How many color options do the printers offer?
A: Both printers offer either 4 colors (Cyan, Magenta, Yellow, Black) or 8 colors.
Q: What is the media heating system of both printers?
A: Both printers have an Integrated post heater & Infrared Dryer & Fan system.
Q: What is the interface of both printers?
A: Both printers have a LAN interface.
Q: What is the power supply of both printers?
A: Both printers require AC 220V±10%, 16A, 50/60 HZ.
Q: What is the RIP software of both printers?
A: Both printers use Riprint/PhotoPrint as their RIP software.
Q: What are the dimensions of the machines with their brackets?
A: The dimensions of the first printer with its bracket are 4656X910X1755mm, and the dimensions of the second printer with its bracket are 4750X1000X1820mm
Q: What is the weight of the machines with their brackets?
A: The weight of the first printer with its bracket is 80kg, and the weight of the second printer with its bracket is 790kg.
Q: What is the power consumption of both printers during operation?
A: The power consumption of both printers during operation is 2800W.
Q: What is the recommended temperature range for the printers when they’re turned on?
A: The recommended temperature range for both printers when they’re turned on is 18℃-30℃.
Q: What is the recommended humidity range for the printers when they’re turned on?
A: The recommended humidity range for both printers when they’re turned on is 40-60% (no condensation).
Q: What are some examples of accessories that come with the printers?
A: Some examples of accessories that come with the printers include USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software.
