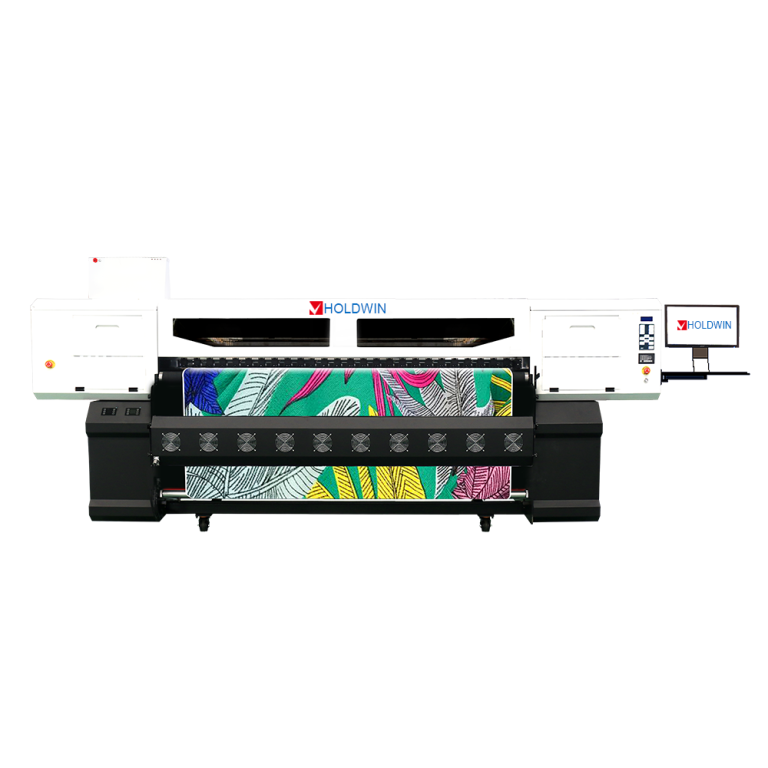

This industrial-grade sublimation printer is designed for maximum uptime and output, integrating seamlessly into automated workflows.
Machine Parameters
Our printing solutions deliver photo-realistic quality and wash-resistant durability. Perfect for applying full-color designs to:
Transform everyday textile fabrics into extraordinary, high-value products.
Simply Put, This sublimation printer is perfect for businesses in fashion, promotions, and home furnishings, providing a complete digital printing solution for transforming textiles.
| Model | HOLDWIN-2215TX | HOLDWIN-2615TX | ||
| speed | 1Pass | 560m²/h | 600m²/h | |
| 2Pass | 280m²/h | 300m²/h | ||

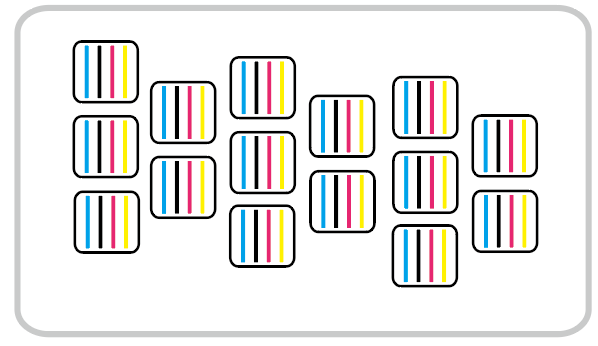

| Print Head | 15 I3200-A1 Print Heads | |||
| Printing Technology | Piezoelectric Inkjet | |||
| Print Width | ≤2250 |
≤2650 | ||
| ink Cartridges | Kind | High-concentration heat transfer ink | ||
| Color | CMYK | |||
| Supply | Siphon | |||
| Capacity | 10L | |||
| Printer Media | Heat Transfer Paper | |||
| Moisturizing Unit | Automatic Cleaning and Moisturizing Integrated Dryer | |||
| Drying structure | External multi-stage automatic control wind and heat all-in-one dryer | |||
| RIP Software | Riprint | |||
| Support image | JPG / TIFF / PDF, etc. | |||
| Computer Configuration | Operating System | Win7 64-bit / Win10 64-bit | ||
| Hardware Requirements | CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g, Graphics Card: ATI display 4G memory, Motherboard: ASUS, Gigabyte |
|||
| Data transmission | USB 3.0 | |||
| Power | Input Voltage | AC 220V ±5%, 16A, 50HZ±1 | ||
| Printing system | 1500W | |||
| Drying unit power | Maximun 13KW | Maximun 20KW | ||
| Weight | 750kg | 900kg | ||
| Dimensions | 3900×1250×1850 | 4500x1250x1850 mm | ||
| Package weight | 800kg | 950kg | ||
| Package size | 4300x1130x1750 mm | 4650x1130x1750 mm |
| Environment | Power On: Temperature:59F to90F [15C to 32C] / Humidity: 35 to 80% (no condensation)
Power Off: Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation) |
|
QA
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the model number of the two printers?
A: The model numbers are HOLDWIN-2215TX and HOLDWIN-2615TX.
Q: What is the print speed of the HOLDWIN-2215TX for 1Pass?
A: The print speed for 1Pass is 560m²/h.
Q: What is the print speed of the HOLDWIN-2615TX for 1Pass?
A: The print speed for 1Pass is 600m²/h.
Q: What type of print heads do these printers use?
A: They use 15 I3200-A1 Print Heads.
Q: What is the maximum print width for the HOLDWIN-2215TX?
A: The maximum print width is ≤2250mm.
Q: What is the maximum print width for the HOLDWIN-2615TX?
A: The maximum print width is ≤2650mm.
Q: What kind of ink do these printers use?
A: They use high-concentration heat transfer ink.
Q: What are the supported colors for the ink cartridges?
A: The supported colors are CMYK.
Q: What kind of printer media is used?
A: The printer media used is heat transfer paper.
Q: What kind of RIP software is compatible with these printers?
A: The compatible RIP software is Riprint.
Q: What image formats are supported?
A: The supported image formats are JPG, TIFF, and PDF.
Q: What operating systems are supported?
A: The supported operating systems are Windows 7 64-bit and Windows 10 64-bit.
Q: What are the hardware requirements for the computer configuration?
A: The hardware requirements are an i7 processor (9th generation or higher), a hard disk with 500GB+ (solid-state disk), 16GB of operating memory, an ATI display graphics card with 4GB memory, and a motherboard from ASUS or Gigabyte.
Q: What kind of data transmission is required?
A: USB 3.0 data transmission is required.
Q: What is the input voltage for these printers?
A: The input voltage is AC 220V ± 5%, 16A, 50Hz ± 1.
Q: What is the printing system power consumption for the HOLDWIN-2215TX?
A: The printing system power consumption is 1500W.
Q: What is the maximum power consumption for the HOLDWIN-2615TX?
A: The maximum power consumption is 20KW.
Q: What is the weight of the HOLDWIN-2215TX?
A: The weight is 750kg.
Q: What is the weight of the HOLDWIN-2615TX?
A: The weight is 900kg.
Q: What is the package weight of the HOLDWIN-2215TX?
A: The package weight is 800kg.
Q: What is the package weight of the HOLDWIN-2615TX?
A: The package weight is 950kg.
Q: What are the dimensions of the HOLDWIN-2215TX?
A: The dimensions are 3900x1250x1850mm.
Q: What are the dimensions of the HOLDWIN-2615TX?
A: The dimensions are 4500x1250x1850mm.
Q: What is the package size for the HOLDWIN-2215TX?
A: The package size is 4300x1130x1750mm.
Q: What is the package size for the HOLDWIN-2615TX?
A: The package size is 4650x1130x1750mm.
Q: What are the environmental requirements for the printer when turned on?
A: The environmental requirements when turned on are a temperature of 59F to 90F (15C to 32C) and humidity of 35% to 80% (no condensation).
Q: What are the environmental requirements for the printer when turned off?
A: The environmental requirements when turned off are a temperature of 41F to 104F (5C to 40C) and humidity of 20% to 80% (no condensation).
