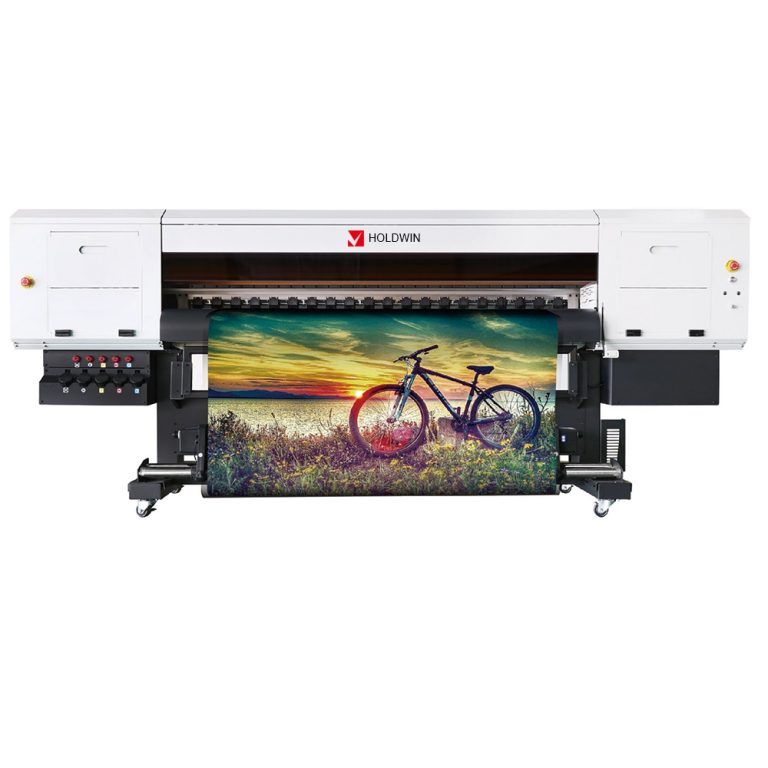

HOLDWIN-6800 UV

Name: HOLDWIN-6800 UV
Brand: Holdwin
SKU: 4727
Rating: 5 (1 reviews)

Printer Type: UV roll to roll printing machine

Specification: LED-UV Inkjet Printer (Gen5 / Gen6 optional)

Printing Technology: Piezoelectric Inkjet

PRODUCT DETAILS

Features

What is roll to roll UV printer?

In the UV roll-to-roll printing process, ultraviolet (UV) light is used to print ink onto a flexible substrate, curing or drying it at the same time. This technology is well-suited for large printing projects where the material is supplied to the printer in continuous rolls. UV roll-to-roll printers are adept at handling different types of media, such as vinyl, fabric, and paper, making them an adaptable option for enterprises looking to produce superior quality prints.

	HW – 6800V (4* Gen5) W+CMYK+V	HW – 6800S (5* Gen5) W+ CMYK +V	HW – 6800Q (6* Gen5) W+ CMYK+V
720*600 dpi	14.8 sqm/h	14.8 Sqm/h	28 Sqm/h
720*900 dpi	12.8 Sqm/h	12.8 Sqm/h	24 Sqm/h
720*1200 dpi	10 Sqm/h	10 Sqm/h	20 Sqm/h

	HW – 6800V (4* Gen6) W+CMYK+V	HW – 6800S (5* Gen5) W+ CMYK +V	HW – 6800Q (6* Gen6) W+ CMYK+V
720*600 dpi	19 sqm/h	19 Sqm/h	36 Sqm/h
720*900 dpi	16.5 Sqm/h	16.5 Sqm/h	31 Sqm/h
720*1200 dpi	13 Sqm/h	13 Sqm/h	26 Sqm/h

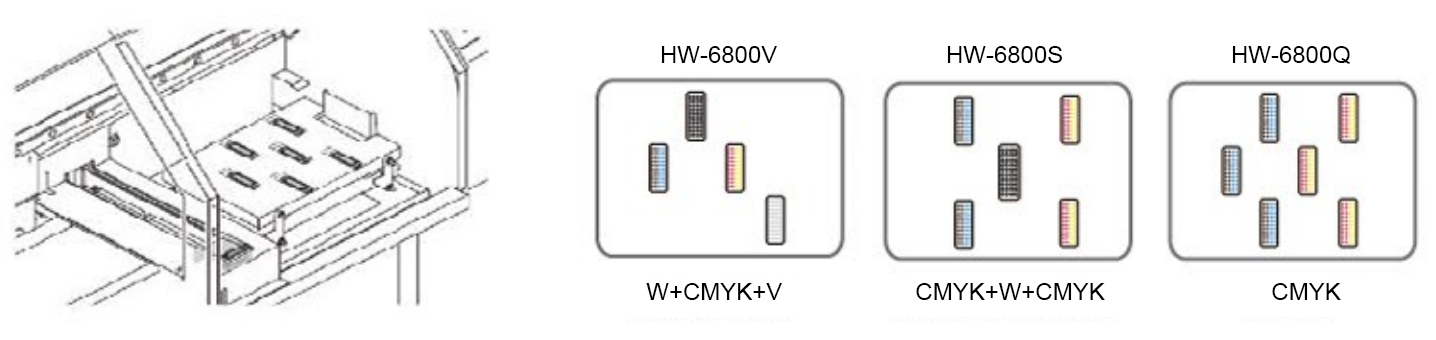

Industrial Heads, Massive Production Capacity for Bulk Order

Equipped with three staggered lined industrial print heads, making it your best weapon to improve profit margins with its high speed output.

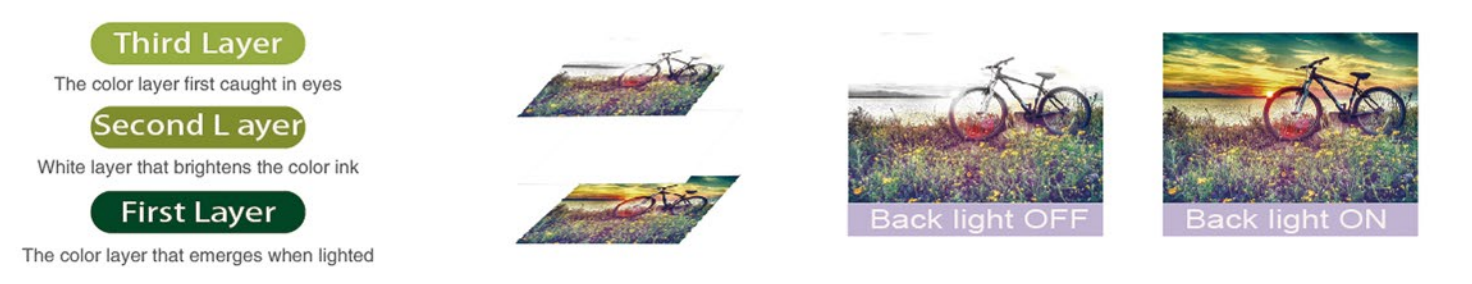

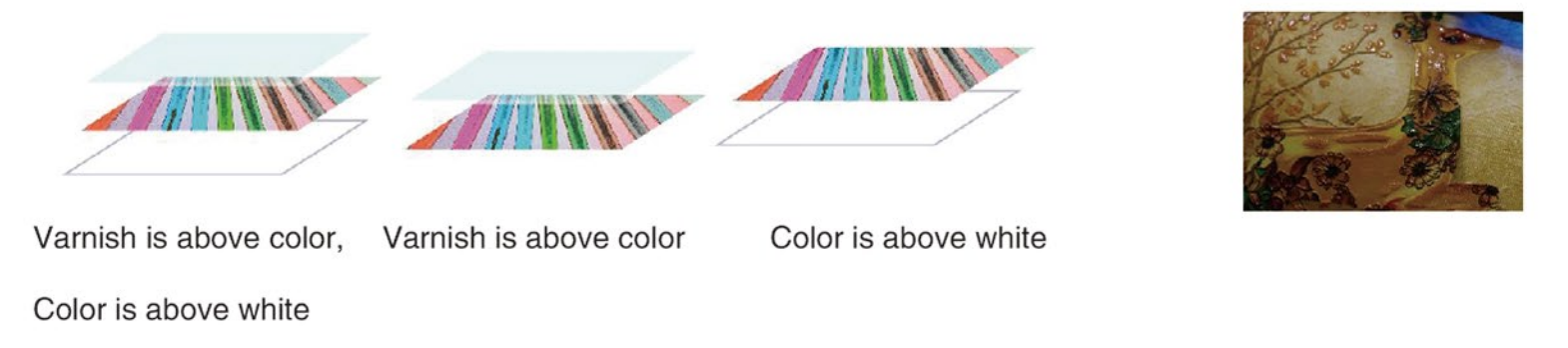

4 Industrial Heads, Varnish output, more personalized applications customization

One machine for multiple printing solutions under different color modes, can meet requirements from different customers. It can also replace some high-end eco solvent printers which can be efficient and environmentally friendly.

Advantages of UV roll-to-roll printing

Speed and Efficiency: A major advantage of UV roll-to-roll printing is its impressive speed. It facilitates continuous printing on rolls, which significantly enhances production speed compared to traditional printing methods. This efficiency is essential for businesses that need to complete projects swiftly.
High-quality output: UV roll-to-roll printers are known for their bright colors and clear images. The UV curing process ensures that the ink adheres well to the substrate, resulting in prints that are both visually striking and durable. This quality is crucial for applications like banners, signage, and vehicle wraps, where visibility and longevity are key.
Versatility: UV roll-to-roll printers can accommodate a diverse range of materials, making them suitable for numerous applications. Whether you need to print on flexible materials such as banners and textiles or on rigid substrates like foam board, UV roll-to-roll technology can fulfill your needs. This versatility allows businesses to expand their service offerings and reach a wider customer base.
An eco-friendly choice: Many UV inks are created to be more environmentally friendly than traditional solvent-based inks. They emit fewer volatile organic compounds (VOCs) during the printing process, making them safer for the environment and for worker health. Moreover, UV curing processes reduce waste due to less ink spillage and the need for fewer cleaning solvents.
Cost-effectiveness: While the initial cost of a UV roll-to-roll printer may be higher than that of a traditional printer, the long-term savings are significant. The durability of UV prints means less frequent replacements, and the efficient printing process also cuts down on labor costs. Over time, businesses can enjoy a substantial return on their investment.
Customization and personalization: With UV roll-to-roll technology, businesses can easily modify print materials to meet specific client demands.

Technical Parameters

Model		HOLDWIN-6800V	HOLDWIN-6800S	HOLDWIN-6800Q
Print Head		4 Industrial Print Heads	5 Industrial Print Heads	6 Industrial Print Heads
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	1820 mm
	Thickness	1 mm
	Weight	80 kg
Printing Width		1800 mm
Ink Cartridges	Type	UV Ink
	Capacity	Continual Ink Supply System(1.5L ink tank)
	Color	W+CMYK+Vainish	CMYK+W+CMYK	CMYK
Printing Resolution		1200 dpi
Ink Curing Unit		Dual UV LED Lamps
Interface		LAN
Power Supply		AC 220V ± 10%, 50/60 Hz
RIP		Riprint /Onyx(Caldera Optional)
Machine Size / Weight		3210×1048×1420 mm / 700 kg
Package Size / Weight		3340×1080×1490 mm / 800 kg
Environment	Power on	Temperature:15℃ to 32℃ / Humidity:35 to 80%(no condensation)
	Power off	Temperature:5℃to 40℃ / Humidity:20 to 80%(no condensation)
Accessories		USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.

Q&A

Q: What is the printing technology used in the HOLDWIN-6800V model?
A: The printing technology used in the HOLDWIN-6800V model is Piezoelectric Inkjet.

Q: How many industrial print heads does the HOLDWIN-6800S model have?
A: The HOLDWIN-6800S model has 5 industrial print heads.

Q: What is the maximum printing width of the HOLDWIN-6800Q model?
A: The maximum printing width of the HOLDWIN-6800Q model is 1800 mm.

Q: What type of ink is used in the HOLDWIN-6800V model?
A: The HOLDWIN-6800V model uses UV ink.

Q: What is the capacity of the continual ink supply system (CISS) for the HOLDWIN-6800S model?
A: The CISS capacity for the HOLDWIN-6800S model is 1.5L ink tank.

Q: What color options are available for the ink cartridges in the HOLDWIN-6800Q model?
A: The ink cartridges for the HOLDWIN-6800Q model come in CMYK colors only.

Q: What is the printing resolution of the HOLDWIN-6800V model?
A: The printing resolution of the HOLDWIN-6800V model is 1200 dpi.

Q: How many UV LED lamps are included in the ink curing unit of the HOLDWIN-6800S model?
A: The ink curing unit of the HOLDWIN-6800S model includes dual UV LED lamps.

Q: Which RIP software is included with the HOLDWIN-6800V model?
A: The HOLDWIN-6800V model comes with Riprint/Rip software.

Q: What is the power supply voltage required for the HOLDWIN-6800Q model?
A: The power supply voltage required for the HOLDWIN-6800Q model is AC 220V±10%,50/60 HZ.

Q: What is the package size and weight of the HOLDWIN-6800V model?
A: The package size of the HOLDWIN-6800V model is 3210x1048x1420 mm, and its weight is 700 kg.

Q: What is the recommended temperature range for operating the HOLDWIN-6800S model when it is powered on?
A: The recommended temperature range for operating the HOLDWIN-6800S model when it is powered on is between 15℃ to 32℃.

Q: What is the recommended humidity range for operating the HOLDWIN-6800Q model when it is powered off?
A: The recommended humidity range for operating the HOLDWIN-6800Q model when it is powered off is between 35% to 80%(no condensation).

Q: What accessories are included with the HOLDWIN-6800V model?
A: The HOLDWIN-6800V model comes with USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software.

Q: What is the maximum acceptable thickness of media for the HOLDWIN-6800S model?
A: The maximum acceptable thickness of media for the HOLDWIN-6800S model is 1 mm.

Q: What is the weight of the HOLDWIN-6800Q model?
A: The weight of the HOLDWIN-6800Q model is 80 kg.

Q: What is the minimum acceptable temperature for operating the HOLDWIN-6800V model when it is powered on?
A: The minimum acceptable temperature for operating the HOLDWIN-6800V model when it is powered on is 15℃.

Q: What is the maximum acceptable humidity for operating the HOLDWIN-6800S model when it is powered on?
A: The maximum acceptable humidity for operating the HOLDWIN-6800S model when it is powered on is 80%(no condensation).
