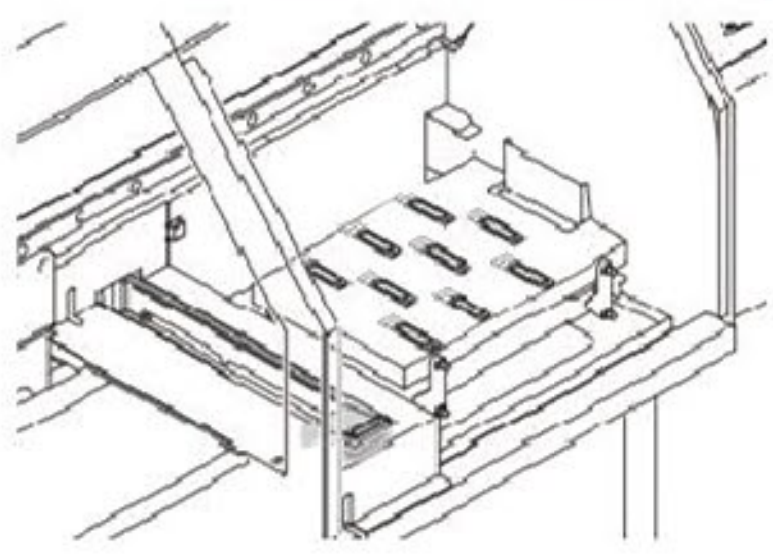

Equipped with three staggered industrial printheads, this model delivers exceptional, helping you boost production efficiency and profit margins. The new Gen6 head technology maintains impressive image clarity even in faster modes, producing refined and lifelike results. UV roll-to-roll printers tend to produce more vivid, saturated colors and better contrast compared to many solvent or eco-solvent speed printers. This makes printed graphics pop — ideal for advertising, retail, POP displays, or any application needing high visibility.
| HW – 8800V (3* Gen5) CMYK + W + Black + W + CMYK | HW – 8800V (4/5* Gen5) W+ CMYK+ V , W+ CMYKLcLm+ V | HW – 8800S (5/7* Gen5) CMYK+W+CMYK, CMYKLcLm+W+CMYKLcLm | HW – 8800Q (5/7* Gen5) CMYK, CMYKLcLm | |
| 720*600 dpi | 7 sqm/h | 14.8 Sqm/h | 14.8 Sqm/h | 42 Sqm/h |
| 720*900 dpi | 6 Sqm/h | 12.8 Sqm/h | 12.8 Sqm/h | 36 Sqm/h |
| 720*1200 dpi | 5 Sqm/h | 10 Sqm/h | 10 Sqm/h | 30 Sqm/h |
| HW – 8800V (3* Gen6) CMYK + W + Black + W + CMYK | HW – 8800V (4/5* Gen6) W+ CMYK+ V , W+ CMYKLcLm+ V | HW – 8800S (5/7* Gen6) CMYK+W+CMYK, CMYKLcLm+W+CMYKLcLm | HW – 8800Q (5/7* Gen6) CMYK, CMYKLcLm | |
| 720*600 dpi | 9 sqm/h | 18.8 sqm/h | 18.8 sqm/h | 52 sqm/h |
| 720*900 dpi | 7.8 sqm/h | 15.6 sqm/h | 15.6 sqm/h | 45 sqm/h |
| 720*1200 dpi | 6.5 sqm/h | 13 sqm/h | 13 sqm/h | 38 sqm/h |

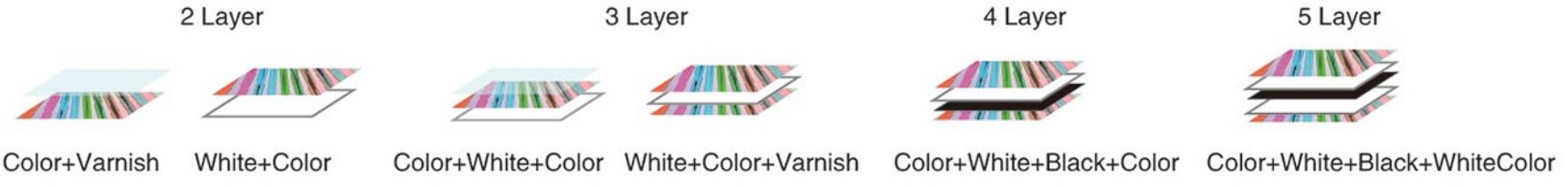

4-9 Industrial Heads, designed for high quality six color and multi-layer orders
Capable of printing on many flexible roll media — vinyl, mesh, backlit/frontlit films, synthetic papers, soft textile-style banners, window films, etc. This makes the printer useful across signage, décor, packaging, and promotional graphics sectors.

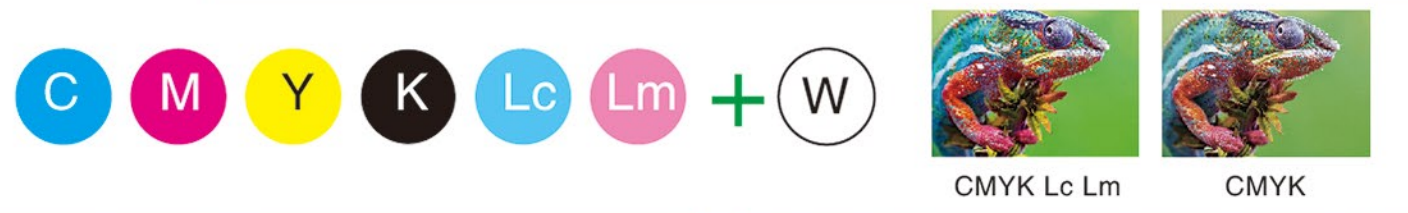

6 COLOR Optional six-color + white print mode, exquisite color output

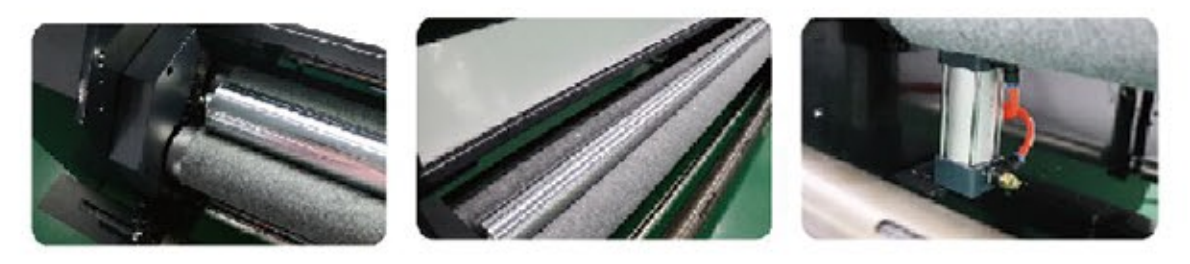

1. Air-Driven Moisture System with Pinch Roller Support
The combination of an air-driven moisture system and precision pinch rollers improves media traction and reduces friction. This helps maintain consistent feeding, especially during long-format printing jobs.

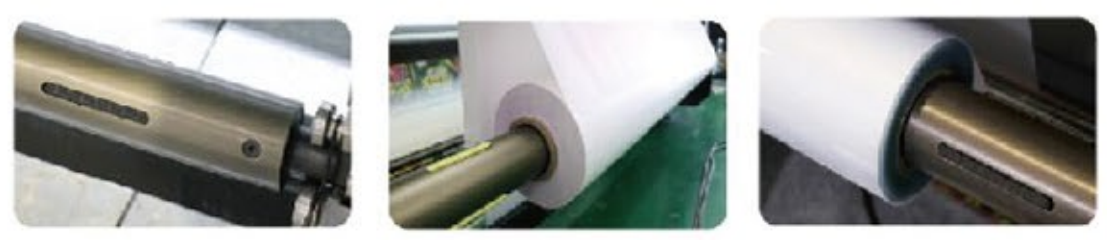

2. Dual Air-Shaft System (Front & Back)
Front and rear adjustable air-shafts allow easy installation and quick alignment of roll media. The system keeps the material evenly tensioned, ensuring smooth transport and reducing the risk of skewing.

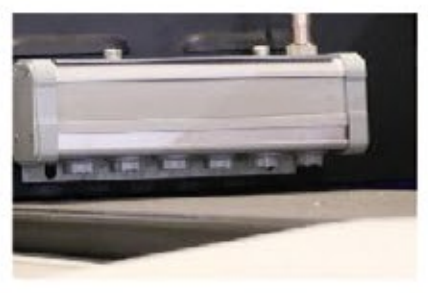

3. Integrated Anti-Static Bar
A standard anti-static bar neutralizes static charge on the substrate, preventing ink misting and enhancing dot accuracy. This results in cleaner edges, sharper text, and overall higher print clarity.

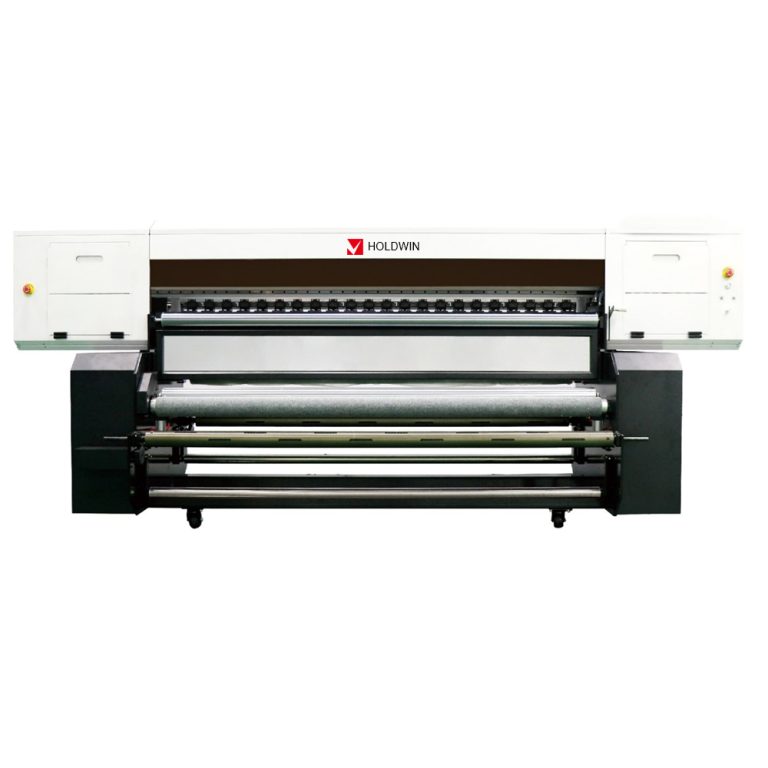

| Model | HOLDWIN-8800V | HOLDWIN-8800S | HOLDWIN-8800Q | |
| Prnt Head | 4/5 Print Heads | 5/7 Print Heads | 6/9 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |||
| Acceptable Media | Width | 2050 mm | ||
| Thickness | 1 mm | |||
| Weight | 100kg | |||
| Printing Width | 2000 mm | |||
| Ink Cartridges | Type | UV Ink | ||
| Capacity | Continual Ink SupplySystem(1.5L ink tank) | |||
| Color | W+CMYK+Varnish W+CMYKLcLm+Varnish | CMYK+W+CMYK CMYKLcLm+W+CMYKLcLm |
CMYK CMYKLcLm |
|
| Printing Resolution | 1200 dpi | |||
| Ink Curing Unit | Dual UV LED Lamps | |||
| nterface | LAN | |||
| Power Supply | AC 220V ± 10%, 50/60 Hz | |||
| RIP | Riprint/Onyx(Caldera Optional) | |||
| Machine Size/Weight | 3520×1050×1520 mm / 900 kg | |||
| Package Size/Weight | 3760x1150x1650 mm / 1000 kg | |||
| Environment | Power on | Temperature:15℃ to 32℃ / Humidity:35 to 80%(no condensation) | ||
| Power off | Temperature:5℃ to 40℃ / Humidity:20 to 80% (no condensation) | |||
| Accessories | USB cable, media clamp, manual, drain bottle, inkcartridges, RIP software, etc | |||
Q&A
Q: What is the printing technology used in HOLDWIN-8800V?
A: The printing technology used in HOLDWIN-8800V is Piezoelectric Inkjet.
Q: What is the acceptable media thickness for HOLDWIN-8800S?
A: The acceptable media thickness for HOLDWIN-8800S is 1 mm.
Q: What is the printing width of HOLDWIN-8800Q?
A: The printing width of HOLDWIN-8800Q is 2000 mm.
Q: What type of ink cartridges does HOLDWIN-8800V use?
A: HOLDWIN-8800V uses CMYK+Vainish ink cartridges.
Q: What is the capacity of the ink cartridges used in HOLDWIN-8800S?
A: The capacity of the ink cartridges used in HOLDWIN-8800S is Continual Ink SupplySystem(1.5L ink tank).
Q: What is the printing resolution of HOLDWIN-8800Q?
A: The printing resolution of HOLDWIN-8800Q is 1200 dpi.
Q: What is the ink curing unit used in HOLDWIN-8800V?
A: The ink curing unit used in HOLDWIN-8800V is Dual UV LED Lamps.
Q: What is the power supply required for HOLDWIN-8800S?
A: The power supply required for HOLDWIN-8800S is AC 220V±10%,50/60 HZ.
Q: What is the RIP used in HOLDWIN-8800Q?
A: The RIP used in HOLDWIN-8800Q is Riprint/Onyx(Caldera Optional).
Q: What is the machine size and weight of HOLDWIN-8800V?
A: The machine size of HOLDWIN-8800V is 3520x1050x1520 mm and its weight is 900 kg.
Q: What is the package size and weight of HOLDWIN-8800S?
A: The package size of HOLDWIN-8800S is 3760x1150x1650 mm and its weight is 1000 kg.
Q: What is the environment requirement for HOLDWIN-8800Q when it’s powered on?
A: When HOLDWIN-8800Q is powered on, the temperature should be between 15℃ to 32℃ and humidity should be between 35 to 80% (no condensation).
Q: What is the environment requirement for HOLDWIN-8800V when it’s powered off?
A: When HOLDWIN-8800V is powered off, the temperature should be between 5℃ to 40℃ and humidity should be between 20 to 80% (no condensation).
Q: What accessories come with HOLDWIN-8800S?
A: The accessories that come with HOLDWIN-8800S include USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP.
