HOLDWIN-CK32-512i

Name: HOLDWIN-CK32-512i
Brand: Holdwin
SKU: 4618
Rating: 5 (1 reviews)

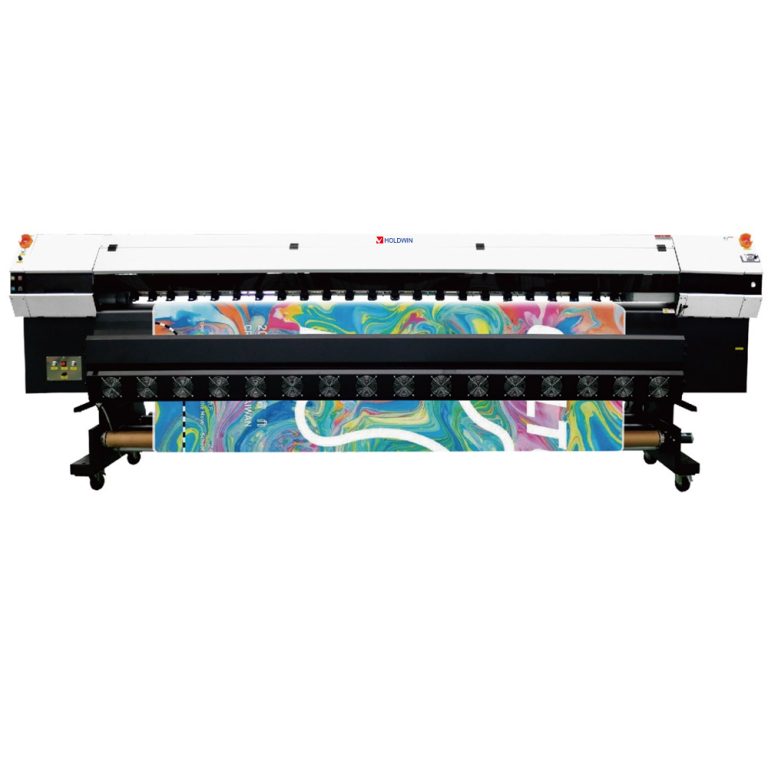

The HOLDWIN-CK32-512i is a heavy-duty industrial printer solvent designed for high-volume outdoor signage and advertising. It features an integrated all-in-one rack for maximum stability and precision during high-speed operation .

Key Specifications:

Product Type: Solvent Printer

Print Head: 4 / 8 Konica 512i heads

Printing Width: 126 inches (3210mm)

PRODUCT DETAILS

Features

Performance & Speed

Pass / Resolution	8 Print Heads (Speed)	4 Print Heads (Speed)
2-Pass (360 x 360 dpi)	220 sq.m /h	110 sq.m/h
3-Pass (360 x 540 dpi)	170 sq.m /h	75 sq.m/h
2-Pass (480 x 360 dpi)	140 sq.m /h	95 sq.m/h
3-Pass (480 x 540 dpi)	100 sq.m /h	60 sq.m/h

Key Features

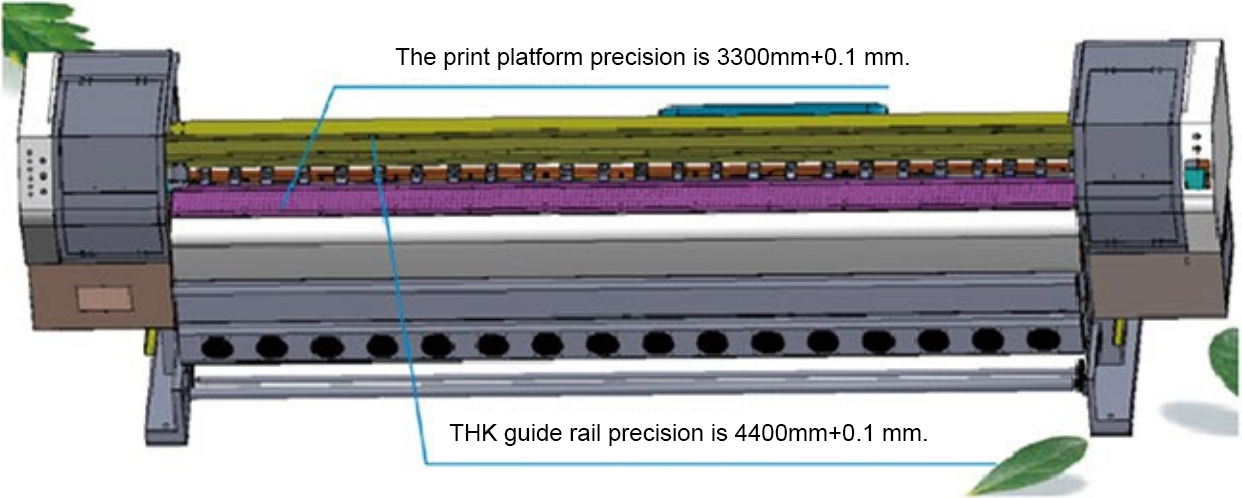

Precision Engineering: The integrated rack ensures all rollers and rods are perfectly parallel, significantly improving the quality of media feeding and receiving.
Advanced Drying System: Features an external infrared heating system with adjustable widths (1.8m to 3.2m) and temperatures (35°C–80°C
Smart Automation: The heating system automatically activates when printing starts and shuts off when printing stops to save energy.
Enhanced Durability: Infrared drying improves ink adhesion and weather resistance for long-lasting outdoor graphics.

Configuration Parameters

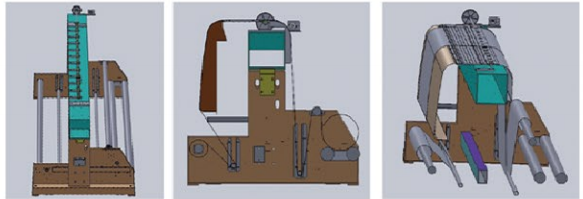

Integrated rack, higher receiving and feeding accuracy

The all-in-one rack ensures that each feeding roller, receiving roller, balance rod is highly parallel to the feeding shaft. It has greatly improved the feeding and receiving quality of the coil.

Applications

Outdoor Advertising: Massive billboards, building wraps, and fence mesh.
Transit Graphics: Bus wraps, truck side curtains, and station posters.
Commercial Displays: Shopping mall banners and exhibition graphics.

Technical Parameters

Model		HOLDWIN-CK32-512i
Print Head		4 Konica 512i Print Heads	8 Konica 512i Print Heads
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	3210 mm
	Thickness	2 mm
	Weight	80 kg
Print Resolution		720 dpi
Printing Width		210-3200 mm
Ink	Type	Solvent Ink
	Capacity	Continual Ink Supply System(5L Bottle Ink)
	Color	4 colors (Cyan,Magenta,Yellow,Black)
Media Heating System		Integrated tri-heater system
Interface		USB 2.0\HIUSB
Power Supply		AC 220V ± 10%, 16A, 50/60 Hz
Machine size / weight		4960×1150×1600 mm / 750 kg
Package size / weight		Entirety Packing:4940x1130x1810 mm Split Packing:4975×830×1130 mm /850 kg
Power		Operating status: 8000W
Environment	Power on	Temperature:15℃-32℃/Moisture content:35-80%(No condensation)
	Power off	Temperature:5℃-40℃/Moisture content:20-80%(No condensation)
Accessories		USB cable, media clamp, manual, ink cartridges, RIP software, etc.

Q&A

Q: What is the model number of the printer?
A: The model number of the printer is HOLDWIN-CK32-512i.

Q: How many Konica 512i print heads does this printer have?
A: This printer has either four or eight Konica 512i print heads, depending on the specific model.

Q: What type of inkjet technology does this printer use?
A: This printer uses Piezoelectric Inkjet technology.

Q: What types of media can this printer accept?
A: This printer can accept various types of media including indoor and outdoor PP, indoor and outdoor photo paper, car sticker, water-based lightbox film, eco solvent lightbox film, canvas, non-woven, digital textile printing.

Q: What is the maximum width that this printer can handle?
A: The maximum width that this printer can handle is 3210 mm.

Q: What is the maximum thickness of media that this printer can handle?
A: The maximum thickness of media that this printer can handle is 2 mm.

Q: What is the weight capacity of this printer?
A: The weight capacity of this printer is 80 kg.

Q: What is the print resolution of this printer?
A: The print resolution of this printer is 720 dpi.

Q: What is the printing width range of this printer?
A: The printing width range of this printer is 210-3200 mm.

Q: What type of ink does this printer use?
A: This printer uses Solvent Ink.

Q: What is the capacity of the ink supply system?
A: The ink supply system has a Continual Ink Supply System (CIS) with a capacity of 5L Bottle Ink.

Q: How many colors does this printer support?
A: This printer supports four colors: Cyan, Magenta, Yellow, and Black.

Q: What type of media heating system does this printer have?
A: This printer has an Integrated tri-heater system.

Q: What interfaces does this printer support?
A: This printer supports USB 2.0 and USB interfaces.

Q: What is the power supply voltage and frequency required by this printer?
A: This printer requires AC 220V±10%, 16A, 50/60 Hz as its power supply voltage and frequency.

Q: What are the dimensions of this printer?
A: The dimensions of this printer are 4960×1150×1600 mm / 750 kg.

Q: What are the package size and weight of this printer?
A: The entirety packing size and weight of this printer are 4940x1130x1810 mm and 850 kg respectively. The split packing size and weight are 4975x830x1130 mm and 850 kg respectively.

Q: What is the operating status power consumption of this printer?
A: The operating status power consumption of this printer is 8000W.

Q: What is the recommended temperature and humidity range when the printer is turned on?
A: When the printer is turned on, the recommended temperature range is 15℃-32℃ and the recommended humidity range is 35-80% (no condensation).

Q: What is the recommended temperature and humidity range when the printer is turned off?
A: When the printer is turned off, the recommended temperature range is 5℃-40℃ and the recommended humidity range is 20-80% (no condensation).

Q: What accessories come with this printer?
A: The accessories that come with this printer include USB cable, media clamp, manual, ink cartridges, RIP software, etc.
