What is DTF printing?
DTF Printing is revolutionizing the industry! Our cutting-edge DTF printers deliver vibrant, high-quality transfers across virtually any fabric type. Print confidently on cotton, silk, polyester, denim, leather, and countless other materials.
What is a DTF Printer?
A DTF Printer (Direct-to-Film) uses specialized DTF ink to create a DTF print onto a clear film. This printed design then becomes a DTF transfer that can be quickly and easily applied directly onto a surface, such as fabric, using heat.
In other words, We can conclude saying:

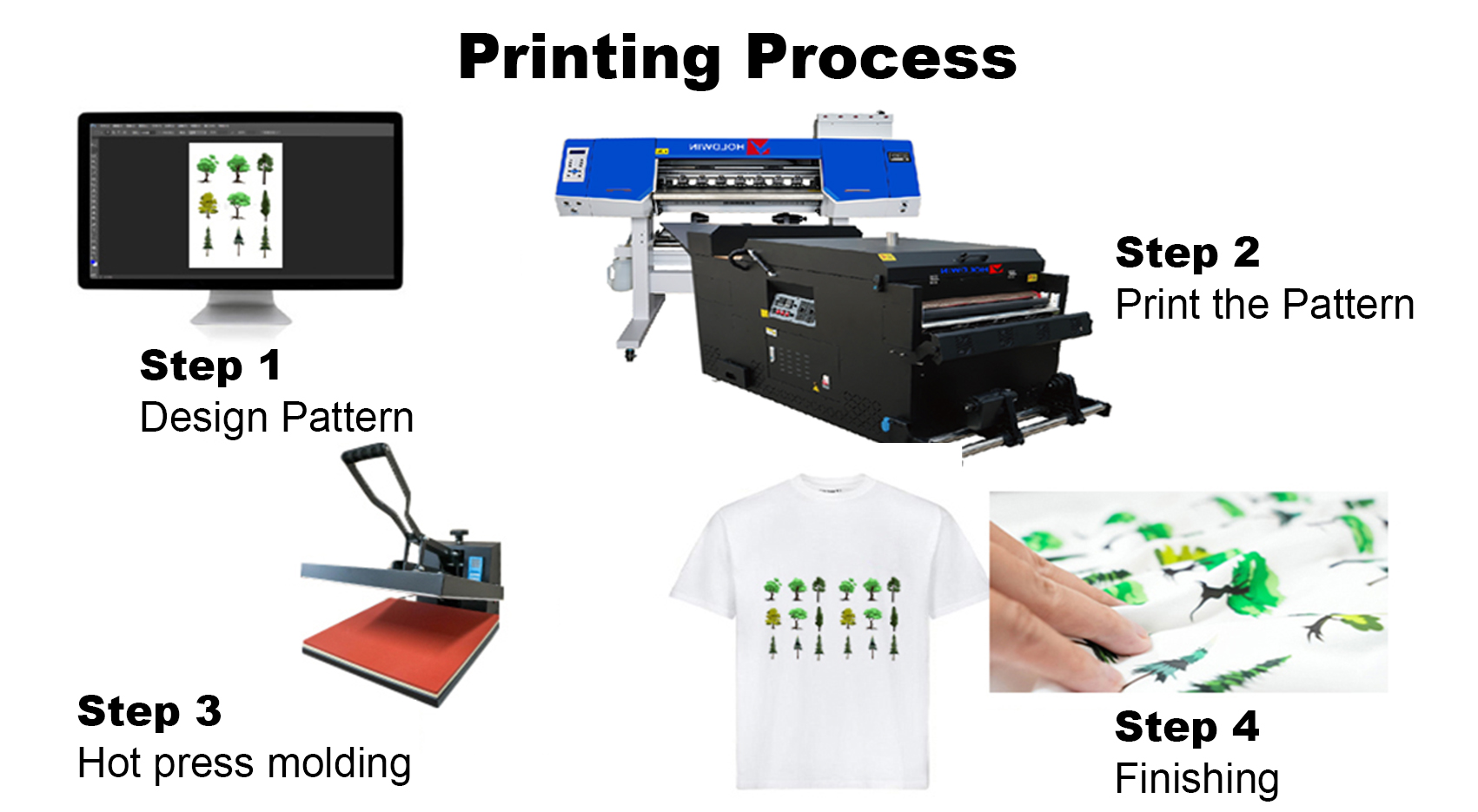

DTF Printing Process
Step-1: Creating the Transfer Film
Step-2: Applying the Design to the Garment
DTF vs Sublimation
| Feature | DTF (Direct-to-Film) | Sublimation Printing |
| Compatible Materials | Nearly any fabric (cotton, polyester, blends, nylon, leather) and certain hard surfaces. | Polyester fabrics and polymer-coated hard goods (mugs, ceramics, metal). |
| Fabric Color | Works on light and dark fabrics due to a white ink base. | Limited to white or light-colored fabrics, as the inks are translucent and won’t show on dark colors. |
| Ink Type | Uses specialized textile inks (CMYK + White) | Uses special sublimation dyes (CMYK, no white ink) |

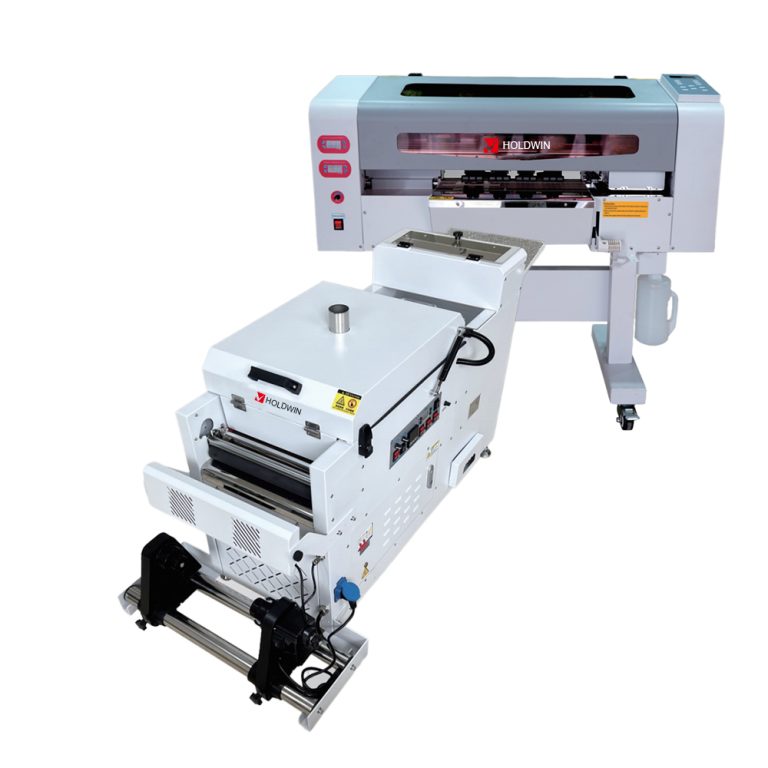

| Model | HOLDWIN-302F |
| Printer Heads | F1080×2 |
| Media transfer | pendulum film placing system |
| Work environment | Temperature:18-30℃ Humidity: 40-60% |
| Effective Width | 300mm |
| Input power supply | 200V 4.5V/110V 9A |
| Ink type | Paint ink |
| Power | 1000W |
| Ink supply method | Siphon positive pressure ink supply |
| Equipment width | Net weight 82 kg/Gross weight 102 kg |
| Ink color | CMYK+W |
| Machine dimensions | 1100×640×1020mm |
| Package size | 1440×760×660mm |
| Printer interface | High-speed Gigabit network cable transmission |
| Model | DF300 shaking powder machine |
| Drying method | Lamp Heating |
| Heating width | 300 mm |
| Heating temperature | Recommended platform heating 75°C/dry110°C |
| Power | 1500W |
| Machine dimensions | 1620X565X820mm |
| Package size | 1300X645X1010mm |
| Work environment | Temperature:18-30°c Humidity:40-60% |
| Equipment weight | Net weight 268kg/Gross weight325Kg |
Q&A
Q: What is the model of the heat transfer printer?
A: The model of the heat transfer printer is HOLDWIN-302F.
Q: What is the power consumption of the heat transfer printer?
A: The power consumption of the heat transfer printer is 1000W.
Q: How many printer heads does the heat transfer printer have?
A: The heat transfer printer has two F1080×2 printer heads.
Q: What is the media transfer method used by the heat transfer printer?
A: The media transfer method used by the heat transfer printer is pendulum film placing system.
Q: What is the effective width of the heat transfer printer?
A: The effective width of the heat transfer printer is 300mm.
Q: What is the recommended work environment for the heat transfer printer?
A: The recommended work environment for the heat transfer printer is Temperature: 18-30°C and Humidity: 40-60%.
Q: What is the ink color used in the heat transfer printer?
A: The ink color used in the heat transfer printer is CMYK+W.
Q: What is the input power supply required for the heat transfer printer?
A: The input power supply required for the heat transfer printer is 200V/4.5V or 110V/9A.
Q: What type of ink is used in the heat transfer printer?
A: The ink type used in the heat transfer printer is Paint ink.
Q: What is the interface used for connecting the heat transfer printer to other devices?
A: The interface used for connecting the heat transfer printer to other devices is High-speed Gigabit network cable transmission.
Q: What is the model of the shaker machine?
A: The model of the shaker machine is DF300 shaking powder machine.
Q: What is the drying method used by the shaker machine?
A: The drying method used by the shaker machine is Lamp heating.
Q: What is the recommended work environment for the shaker machine?
A: The recommended work environment for the shaker machine is Temperature: 18-30°C and Humidity: 40-60%.
Q: What is the heating width of the shaker machine?
A: The heating width of the shaker machine is 300mm.
Q: What is the recommended heating temperature for the platform of the shaker machine?
A: The recommended heating temperature for the platform of the shaker machine is 75°C/dry110°C.
Q: What is the power consumption of the shaker machine?
A: The power consumption of the shaker machine is 1500W.
Q: What is the package size of the shaker machine?
A: The package size of the shaker machine is 1300X645X1010mm.
Holdwin is passionate about good products, good services, and good prices to let consumers know that choosing us is the right choice! For partners and end customers, we will provide one-on-one considerate smart services and provide you with more high-quality procurement solutions.
