How does DTF printing work?
Step-1: Design Pattern (Artwork Preparation)
The workflow begins with digital design creation.
Step 2: Print the Pattern
The design is printed onto specialized DTF PET film using a DTF printer loaded with DTF pigment inks. Immediately after printing, DTF adhesive powder (hot-melt powder) is applied to the wet ink and then cured (melted) in a curing oven or heat press to create a ready-to-transfer sheet.
Step 3: Hot Press Molding (Application)
The cured DTF transfer is placed onto the garment (substrate). A commercial heat press is used to apply precise heat, pressure, and time.
Step 4: Finishing (Cold Peel)
The process concludes with the finishing touch: the cold peel.
The transfer works on ANY fabric: 100% cotton, polyester, nylon, canvas, and all blends. Even a small, best DTF printer for beginners produces vibrant, full-color prints with excellent detail and color saturation.

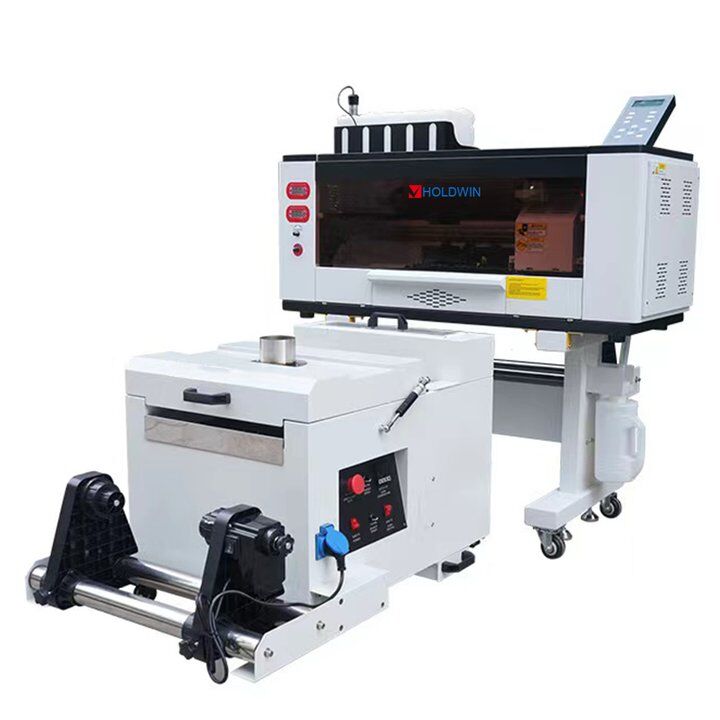

| Model | HOLDWIN-302F |
| Printer Heads | F1080×2 |
| Media transfer | pendulum film placing system |
| Work environment | Temperature:18-30℃ Humidity: 40-60% |
| Effective Width | 300mm |
| Input power supply | 200V 4.5V/110V 9A |
| Ink type | Paint ink |
| Power | 1000W |
| Machine dimensions | 1100×640×1020mm |
| Equipment width | Net weight 82 kg/Gross weight 102 kg |
| Printer interface | High-speed Gigabit network cable transmission |
| Ink supply method | Siphon positive pressure ink supply |
| Machine Model | DF300S shaking powder machine |
| Drying Method | Lamp Heating |
| Heating width | 300mm |
| Heating temperature | Recommended platform heating 75°C/dry110°C |
| Power | 1500W |
| Input power supply | 220V /110V |
| Equipment weight | Net weight 268kg/Gross weight325Kg |
| Machine dimensions | 930X621X615mm |
| Package size | 810X620X805mm |
| Work environment | Temperature:18-30°c Humidity:40-60% |
Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the model number of the heat transfer printer?
A: HOLDWIN-302F
Q: How many printer heads does the HOLDWIN-302F heat transfer printer have?
A: It has two F1080 printer heads.
Q: What is the media transfer system used by the HOLDWIN-302F printer?
A: Pendulum film placing system.
Q: What is the work environment temperature range for the HOLDWIN-302F printer?
A: 18-30°C
Q: What is the humidity range suitable for the HOLDWIN-302F printer?
A: 40-60%
Q: What is the effective width of the HOLDWIN-302F printer?
A: 300mm
Q: What is the input power supply for the HOLDWIN-302F printer?
A: 200V 4.5V/110V 9A
Q: What type of ink does the HOLDWIN-302F printer use?
A: Paint ink
Q: What is the power consumption of the HOLDWIN-302F printer?
A: 1000W
Q: How is ink supplied to the HOLDWIN-302F printer?
A: Siphon positive pressure ink supply
Q: What is the net weight of the HOLDWIN-302F printer?
A: 82 kg
Q: What is the gross weight of the HOLDWIN-302F printer?
A: 102 kg
Q: What ink colors does the HOLDWIN-302F printer support?
A: CMYK+W
Q: What are the dimensions of the HOLDWIN-302F printer?
A: 1100×640×1020mm
Q: What is the package size of the HOLDWIN-302F printer?
A: 1440×760×660mm
Q: What is the printer interface for the HOLDWIN-302F printer?
A: High-speed Gigabit network cable transmission
Q: What is the model number of the shaker?
A: DF300S shaking powder machine
Q: What is the drying method used by the DF300S shaker?
A: Lamp heating
Q: What is the heating width of the DF300S shaker?
A: 300mm
Q: What is the recommended platform heating temperature for the DF300S shaker?
A: 75°C for platform heating and 110°C for dry heating
Q: What is the power consumption of the DF300S shaker?
A: 1500W
Q: What is the input power supply for the DF300S shaker?
A: 220V/110V
Q: What is the work environment temperature range for the DF300S shaker?
A: 18-30°C
Q: What is the humidity range suitable for the DF300S shaker?
A: 40-60%
Q: What is the net weight of the DF300S shaker?
A: 268 kg
Q: What is the gross weight of the DF300S shaker?
A: 325 kg
Q: What are the dimensions of the DF300S shaker?
A: 930×621×615mm
Q: What is the package size of the DF300S shaker?
A: 810×620×805mm
