Looking for reliable sublimation printer supplier? Look no further than Holdwin. This high-performance sublimation printing machine is engineered for industrial-scale digital printing on fabric. Utilizing advanced sublimation ink, it delivers exceptional speed and vibrant color for a vast range of textile applications.
Key Specifications:
Heads: 2 x I3200-A1 Print Heads
Printing Technology: Piezoelectric Inkjet
Max Width: ≤ 1820mm
Ink Droplet: 3.5pl

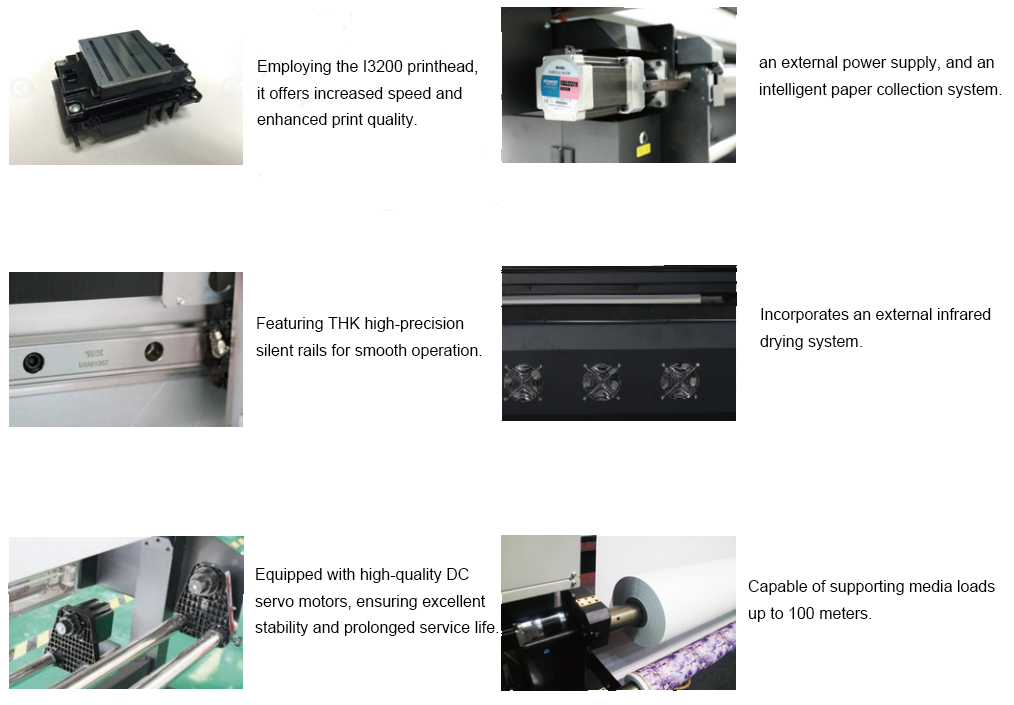

Equipped with two I3200 print heads, it achieves a printing speed of up to 80 square meters per hour.
Optimized Speed: Dual I3200 print heads enable printing speeds of up to 80 square meters per hour, boosting your production capacity.
Maximum Stability: The robust Industrial Structure features a three-story layout supported by two 3200-ton die-casting machines, ensuring maximum frame stability during high-speed operation.
Print Consistency: A sophisticated Constant Temperature Heating System isolates the printing process from ambient temperature changes, guaranteeing consistent, high-quality output.
Noise Reduction: Operational sound is significantly minimized through a fully sealed valve air mechanism and a sound-insulated suction hood.
Machine Performance Parameters
Its applications span across multiple industries, including fashion, advertising, and home decor.
| Technical Specifications | |||
| Model | HOLDWIN-1802TX | ||
| Print Head | 2 I3200-A1 Print Heads | ||
| Speed | 2-pass (360x1800dpi) | 80sqm/h | |
| 4-pass (720x720dpi) | 40 sqm/h | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Printing Width | ≤1820mm | ||
| Color | YMCK | ||
| Ink size | 3.5pl | ||
| Print resolution | 2400dpi | ||
| Interface | LAN | ||
| RIP Software | Riprint | ||
| Support image | JPG / TIFF / PDF, etc | ||
| Machine Size / Weight | 3311x740x1571mm / 350 kg | ||
| Power | Input Voltage | AC220V±5%, 60/50HZ±1 | |
| Drying system | Maximum: 7.5kW | ||
| Package Size / Weight | 3213x1150x1800 mm / 400 kg | ||
| Standard Components | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||
| Working Environment | Power on | Temperature:59F to90F [15C to 32C] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation) | ||
Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the model of this printer?
A: The model of this printer is HOLDWIN-1802TX.
Q: What type of print heads does it use?
A: It uses two I3200-A1 print heads.
Q: What is the maximum print width and weight that it can handle?
A: The maximum printing width is less than or equal to 1820mm, and the maximum printing weight is 100gk.
Q: What kind of ink size does it require?
A: It requires ink size of 3.5pl.
Q: What is the print resolution of this printer?
A: The print resolution of this printer is 2400dpi.
Q: Which interface does it support for connectivity?
A: It supports LAN interface for connectivity.
Q: What software does it come with for image processing?
A: It comes with Riprint software for image processing.
Q: What file formats does it support for printing?
A: It supports JPG, TIFF, PDF, etc. file formats for printing.
Q: What are the dimensions and weight of the machine itself?
A: The machine measures 3311x740x1571mm in size and weighs 350 kg.
Q: What voltage and frequency does it operate on?
A: It operates on AC220V±5%, 60/50HZ±1 voltage and frequency.
Q: Does it have a drying system? If so, what is its power consumption?
A: Yes, it has a drying system. Its maximum power consumption is 7.5kw.
Q: What are the dimensions and weight of the package when shipped?
A: The package measures 3360x760x1050 mm in size and weighs 620 kg.
Q: What standard components come with the printer?
A: It comes with USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
Q: What is the recommended working environment for this printer?
A: The recommended working environment is between 35F to 80F (15C to 32C) temperature and humidity between 35% to 80% (no condensation). When power is off, the recommended temperature range is between 41 F to 104 F (5C to 40C), and humidity should be between 20% to 80% (no condensation).
