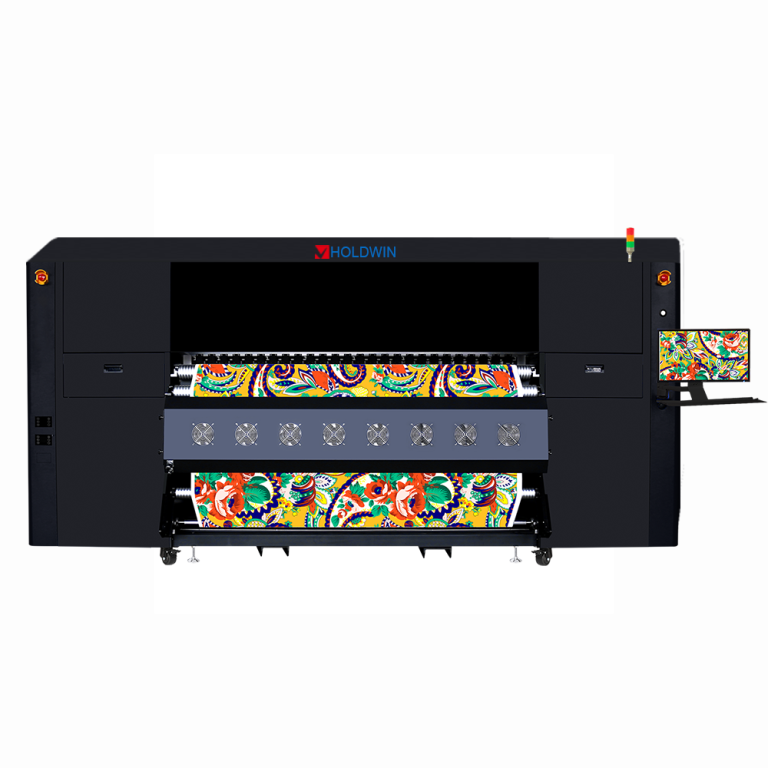

This digital printing powerhouse is driven by 12, 15, or 16 I3200-A1 Print Heads, ensuring both high speed and exceptional resolution. Features a reliable Siphon + Automatic Ink Replenishment system with 10L capacity cartridges. It supports standard CMYK, with options for 6 or 8 colors.
It adopts advanced board control technology and a high-strength industrial design structure. It is the perfect implementation of an unattended automated production scheme, allowing productivity to be fully maximized and improved. An Ink-deficient alarm beeping device provides an intuitive and convenient alert system to prevent printing errors.
The HOLDWIN-1912/1915/1916 Tx is the definitive choice for businesses seeking to achieve high-volume, cost-effective, and fully automated dye sublimation printing.
| Model | HOLDWIN-1912TX | HOLDWIN-1915TX | HOLDWIN-1916TX | |
| speed | 1Pass | 520m²/h | 550m²/h | 590m²/h |
| 2Pass | 250m²/h | 270m²/h | 295m²/h | |
| Print Head | 12/15/16 I3200-A1 Print Heads | |||
| Machine width | 1950MM | |||
| Print Width | 1900MM | |||
| ink Cartridges | Kind | High-concentration heat transfer ink | ||
| Ink supply method | Siphon + Automatic Ink Replenishment | |||
| Color | CMYK(6colors or 8colors Optional) | |||
| Capacity | 10L | |||
| Print Media | Heat Transfer Paper | |||
| Carryable materials | 3000Meter | |||
| Drying structure | External multi-stage automatic control wind and heat all-in-one dryer | |||
| Moisturizing structure | Fully automatic cleaning and moisturizing components | |||
| RIP Software | RIIN Beidou Textile version | |||
| Support image | JPG / TIFF / PDF | |||
| Computer Configuration | Operating System | Windows 7 64-bit / Windows 10 64-bit | ||
| Hardware Requirements | Hard Disk:500G Above (SSD is recommended);Running more than 8G memory; graphics card: ATI discrete graphics 4G memory; CPU: i7 processor | |||
| Data Transmission | USB 3.0 | |||
| Power | Input Voltage | AC 220V±5%, 16A, 50HZ±1 | ||
| Printing system | 2000W | |||
| Drying unit power | Maximum power: 18kW | |||
| Machine size/Weight | 3734x1232x1588 mm / 850 kg | |||
| Package size/Weight | 3860x1130x2000 mm / 890 kg | |||
| Working Environment | Temperature: 20℃-32℃; Relative humidity 40%-65% (No condensation) | |||
| Standard Assembly | External automatic control of air and heat all-in-one dryer, liquid level alarm system, double expansion shaft automatic feeding system, automatic moisturizing cleaning system | |||
Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the speed of the HOLDWIN-1912TX model?
A: The speed of the HOLDWIN-1912TX model is 1Pass: 520m²/h and 2Pass: 250m²/h.
Q: Which print heads does the HOLDWIN-1915TX model use?
A: The HOLDWIN-1915TX model uses 15-inch L3200-A1Print Heads.
Q: What is the width of the machine for all three models?
A: The width of the machine for all three models (HOLDWIN-1912TX, HOLDWIN-1915TX, and HOLDWIN-161TX) is 1950MM.
Q: What type of ink cartridges do these printers use?
A: These printers use high-concentration heat transfer ink in CMYK colors with either 6 or 8 color options available.
Q: How much ink capacity do the ink cartridges have?
A: The ink cartridges have a capacity of 10L.
Q: What drying structure is used by these printers?
A: These printers use an external multi-stage automatic control wind and heat all-in-one dryer as their drying structure.
Q: What moisturizing structure is present in these printers?
A: These printers have fully automatic cleaning and moisturizing components as their moisturizing structure.
Q: What software is included with these printers for image processing?
A: These printers come standardly equipped with the Ruiyin Beidou version RIP Software.
Q: What types of image formats can be processed using this software?
A: This software supports JPG, TIFF, and PDF image formats.
Q: What operating system is required to run these printers?
A: These printers require Windows 7 64-bit or Windows 10 64-bit operating systems.
Q: What hardware requirements must be met for running these printers?
A: A hard disk with at least 500GB storage (SSD recommended), more than 8GB memory, ATI discrete graphics card with 4GB memory, and an i7 processor CPU are required.
Q: What interface is provided for connecting these printers to other devices?
A: These printers provide a Len interface for connection.
Q: What is the input voltage required for these printers?
A: The input voltage required for these printers is AC 220 V ± 5%, 16A, 50 Hz± 1.
Q: What is the printing system power consumption?
A: The printing system power consumption is 2000W.
Q: What is the maximum power consumption of the drying unit?
A: The maximum power consumption of the drying unit is 18kW.
Q: What are the dimensions of the machine for each model?
A: The dimensions of the machine for the HOLDWIN-1912TX model are 3734x1232x1588 mm, while for the HOLDWIN-1915TX model they are 3860x1130x2000 mm, and for the HOLDWIN-161TX model they are not specified.
Q: What is the weight of the machine for each model?
A: The weight of the machine for the HOLDWIN-1912TX model is 850 kg, while for the HOLDWIN-1915TX model it is 890 kg, and for the HOLDWIN-161TX model it is not specified.
Q: What is the recommended working environment for these printers?
A: The recommended working environment for these printers is between 20°C-32°C with relative humidity ranging from 40%-65% without condensation.
