How does the multi-head configuration improve productivity of sublimation printer?

With 12–16 print heads, the printer can: - Print multiple lines simultaneously - Increase output speed significantly - Maintain consistent quality at scale

What are the advantages of the "Siphon + Automatic Ink Replenishment" ink supply method used in Holdwin industrial printers?

The "Automatic Replenishment" feature uses sensors to monitor the ink levels in the secondary cartridges. The siphon principle ensures a consistent, natural flow of ink to the print heads. In short, it is designed to solve the two biggest challenges in high-volume textile production: ink pressure stability and uninterrupted operation.

PRODUCT

Name: HOLDWIN-1912/1915/1916 pro
Availability: InStock
Rating: 5 (50 reviews)

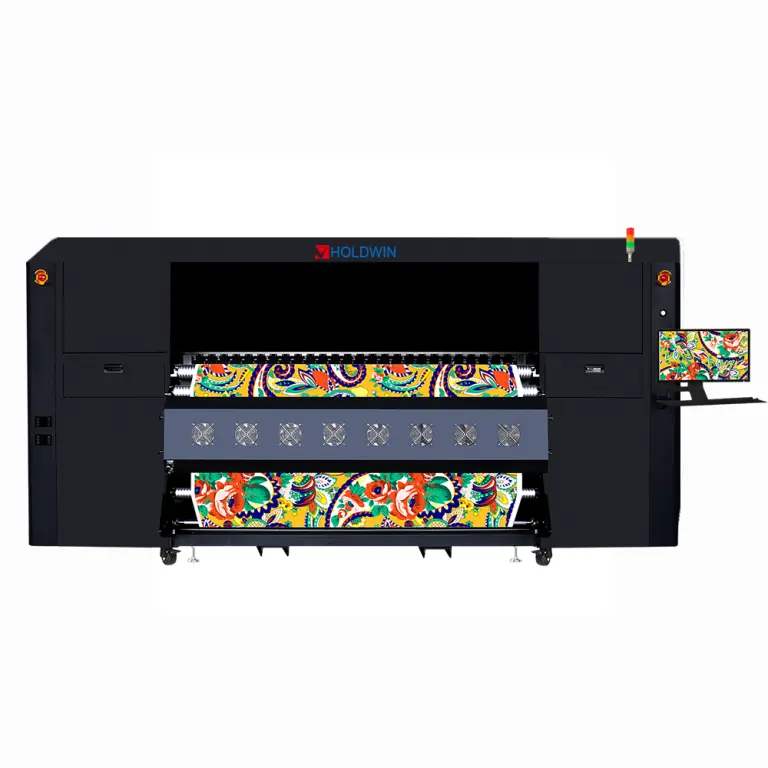

HOLDWIN-1912/1915/1916 pro

High-Speed Digital Printing Sublimation Printer

Model -HOLDWIN-1912 / HOLDWIN-1915 / HOLDWIN-1916 pro

Print Heads – 12, 15, or 16 I3200-A1 Print Heads (Configurable)

Print Width – 1900MM

Machine Width – 1950MM

Color Configuration – CMYK

PRODUCT DETAILS

Service Attributes

Customization: OEM or ODM

After-sales Service: Online Support / Video Technical Support / Engineer Support

Warranty: 12 Months

Product Features

Quad-Level Performance: Driven by 12, 15, or 16 Epson i3200-A1 printheads for maximum speed and fine-detail resolution.
Unattended Automation: Features advanced board control, an automated 10L siphon ink replenishment system, and smart low-ink alert alarms.
Flexible Color Setup: Supports standard CMYK alongside 6-color and 8-color expanded gamuts.

Engineered for uninterrupted, cost-effective dye sublimation production at scale.

Applications

Technical Specifications

Model		HOLDWIN-1912TX	HOLDWIN-1915TX	HOLDWIN-1916TX
speed	1Pass	520m²/h	550m²/h	590m²/h
	2Pass	250m²/h	270m²/h	295m²/h
Print Head	12/15/16 I3200-A1 Print Heads
Machine width	1950MM
Print Width	1900MM
Ink Cartridges	Kind	High-concentration heat transfer ink
	Ink supply method	Siphon + Automatic Ink Replenishment
	Color	CMYK(6colors or 8colors Optional)
	Capacity	10L
Print Media	Heat Transfer Paper
Carryable materials	3000Meter
Drying structure	External multi-stage automatic control wind and heat all-in-one dryer
Moisturizing structure	Fully automatic cleaning and moisturizing components
RIP Software	RIIN Beidou Textile version
Support image	JPG / TIFF / PDF
Computer Configuration	Operating System	Windows 7 64-bit / Windows 10 64-bit
	Hardware Requirements	Hard Disk:500G Above (SSD is recommended);Running more than 8G memory; graphics card: ATI discrete graphics 4G memory; CPU: i7 processor
	Data Transmission	USB 3.0
Power	Input Voltage	AC 220V±5%, 16A, 50HZ±1
	Printing system	2000W
	Drying unit power	Maximum power: 18kW
Machine size/Weight	3734x1232x1588 mm / 850 kg
Package size/Weight	3860x1130x2000 mm / 890 kg
Working Environment	Temperature: 20℃-32℃; Relative humidity 40%-65% (No condensation)
Standard Assembly	External automatic control of air and heat all-in-one dryer, liquid level alarm system, double expansion shaft automatic feeding system, automatic moisturizing cleaning system

Q&A:

1) How does the multi-head configuration improve productivity of a sublimation printer?

With 12–16 print heads, the printer can:

Print multiple lines simultaneously
Increase output speed significantly
Maintain consistent quality at scale

2) What is sublimation printing and why is it used in textiles?

Sublimation printing is a process where ink turns into gas under heat and bonds with fabric fibers, resulting in:

No cracking or peeling
Vibrant colors
Long-lasting prints

3) What is the specialty of RIIN Beidou Textile version software?

The RIIN Beidou Textile version software is engineered to handle the massive data throughput of multi-head configurations. It features dedicated profiles for neon and fluorescent inks (common in sportswear) and provides highly accurate ink consumption estimates specifically for sublimation.

4) What are the advantages of the “Siphon + Automatic Ink Replenishment” method?

The “Automatic Replenishment” feature uses sensors to monitor ink levels in secondary cartridges, while the siphon principle ensures a consistent, natural flow to the print heads. This system is designed to solve the two biggest challenges in high-volume production: ink pressure stability and uninterrupted operation.

5) Why is Heat Transfer Paper the required media for sublimation?

Heat transfer paper acts as a carrier. The machine prints your design onto the paper using specialized sublimation ink; when placed in a heat press with polyester fabric, the ink turns into gas and permanently bonds with the fabric fibers.

PRODUCT

HOLDWIN-1912/1915/1916 pro

PRODUCT DETAILS

Service Attributes

Product Features

Applications

Technical Specifications
