Key Features of Next-Level Sublimation Foil Printing
Utilizes a specialized high-strength, low-stretch tape to prevent deviation and deformation, ensuring a long, maintenance-free service life. It delivers high-precision printing with delicate patterns, natural transitions, and highly realistic output. It is designed for large-scale production, this system minimizes loading/unloading downtime to significantly boost your overall production efficiency.

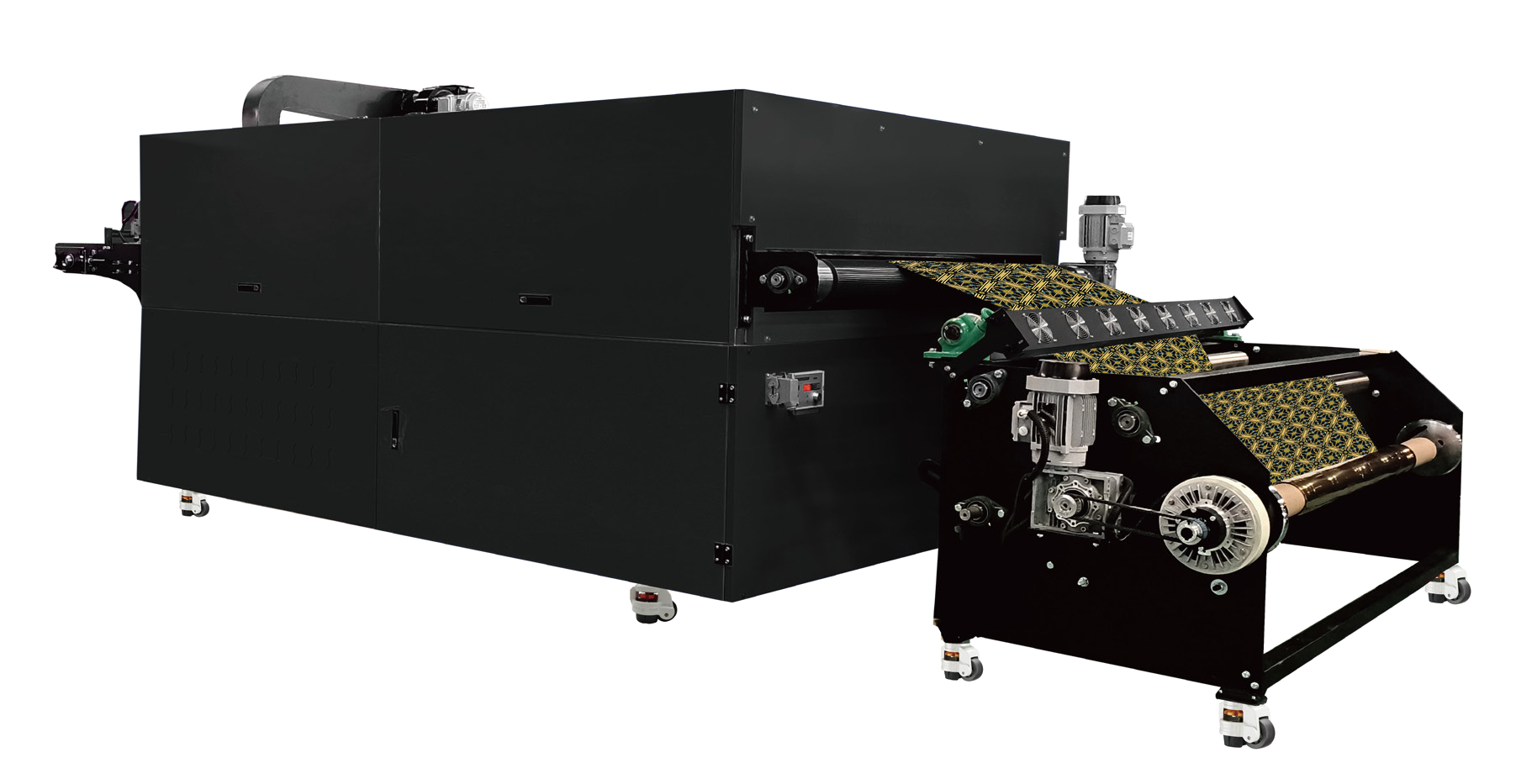

Equipped with a gas expansion shaft discharge device and professional gold film to handle full-roll raw paper efficiently. Features a thickened fully enclosed wall panel structure capable of carrying the heaviest unwinding materials, ensuring stable, long-lasting high-speed operation.
Use Foil Sublimation to integrate shimmering metallic effects directly into your designs. A must-have for customizing goods in fashion, home decor, and branding.
| Model | Holdwin – 1808 F | |
| Heads | Type | Epson i3200 – A1 X 8 |
| Speed | 2 Pass – 130M²/h | |
| 4 Pass – 75 M²/h | ||
| Width | 1820 mm | |
| Print Width | 1800 mm | |
| X – axis transmission | belt drive | |
| Rack Structure | Heavy duty wall panel | |
| RIP | Riin | |
| Support Image Formats | JPG , TIFF, PDF | |
| Computer Configuration | Hardware requirement | Hard drive: 50oG Above (recommended to use solid-state drive); Running memory of 8GB or more;
Graphics card: ATI graphics card with 4GB of dedicated memory; CPU: i7 processor |
| Interface | Gigabit Ethemet port | |
| Electric heating power of drying oven | 2KWx12=24KW | |
| Drying equipment transmission power | Machine: 750W; Fan: 2200W; Dehumidifying Fan: 250W (gap 110×110); Rubber Roller: 750W | |
Q&A

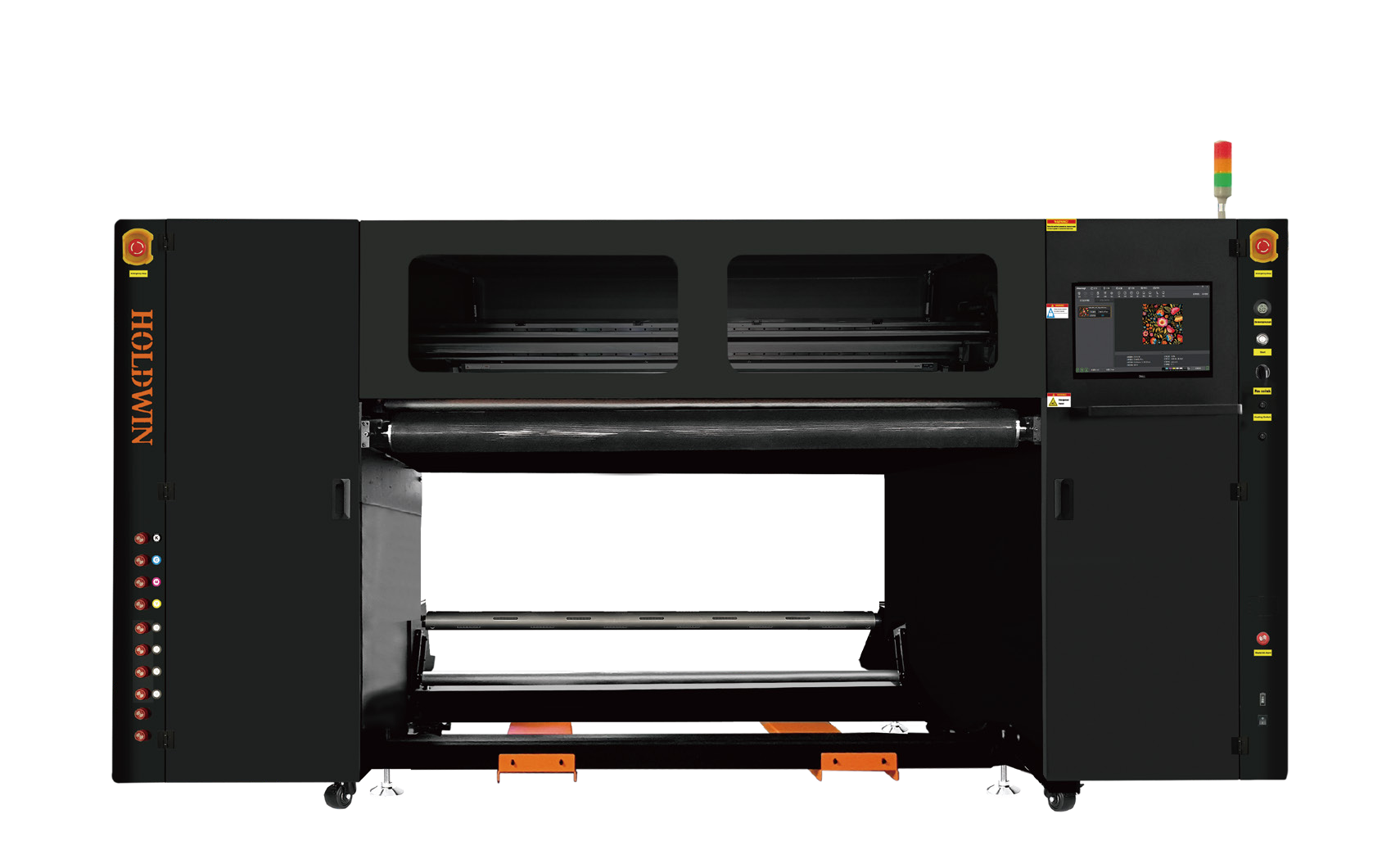

Q: What brand is the printer?
A: The brand of the printer is HOLDWIN.
Q: What are the models of the printer?
A: The model of the printer is HOLDWIN-1808F.
Q: What is the model of the print head?
A: The model of the print head is Epson I3200 A1*8.
Q: What printing software does the printer use?
A: The printer uses riin software.
Q: What is the size of the device?
A: The size of the device is 3350x1460x2065 mm.
Q: What is the printing speed at different DPI settings?
A: The printing speed of 2pass is 130M²/h, and the printing speed of 4pass is 75M²/h
Q: What image formats does the printer support?
A: The printer supports JPG, TIF, PDF and other formats.
Q: What is the voltage of the printer?
A: AC220V±5%, 16A, 50HZ.
