PRODUCT

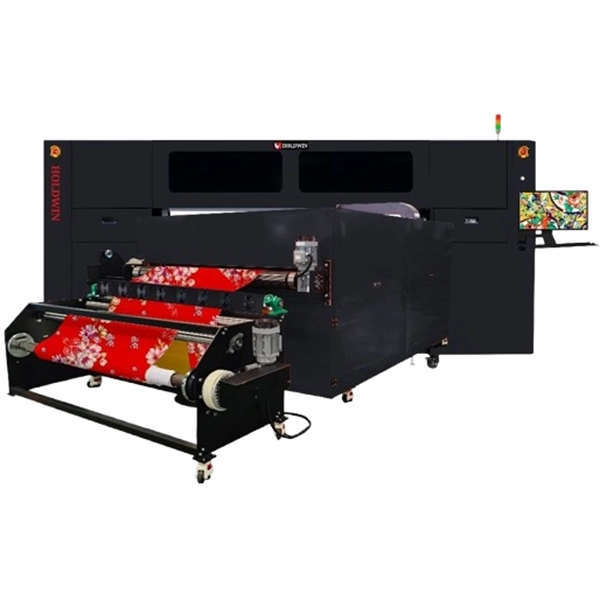

HOLDWIN – 1916F

Product Type: Foil Sublimation Printer

Specification: Industrial High – Speed digital sublimation printer & High performance Dryer

Print Head: 16 X i3200 – A1

Speed: 2 Pass – 240 m²/h , 4Pass – 120 m²/h

PRODUCT DETAILS

Features

Adopting advanced board control technology, equipped with 16 i3200 – A1 print heads and 3.5pl ink droplets. Industrial grade design ensures the durability of the print head. A new automated production solution with a high – strength fully enclosed industrial design structure, using a digital printing machine to accurately print specialized ink and glue onto the surface of the gold film material according to pattern requirements, forming desired pattern or color. After the printing is completed, the gold film is attached to the fabric using heat transfer printing technology, giving the pattern a golden texture and achieving purpose of gold wrapping.

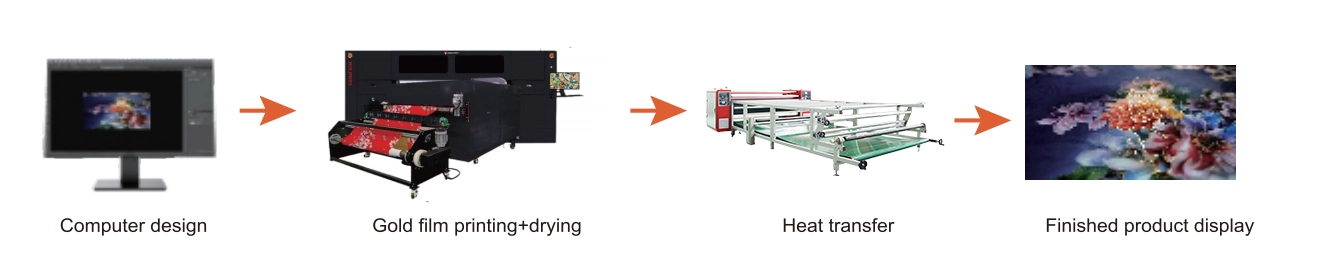

foil transfer steps

Application

applications of foil sublimation printer

Technical Parameters

features of foil sublimation printer



Model Holdwin – 1916F
Print Head 16 X i3200 – A1
Speed 2 Pass 240 m²/h
4 pass 120 m²/h
Printing Technology Piezoelectric Inkjet
Printing Width 1950mm
Machine Width 1900mm
Ink Cartridge Kind High – concentration heat transfer ink
Ink Supply Method Negative Ink supply
Capacity 10L
Color CMYK
Glue Transparent
Print Media Foil Film
Moisturizing Unit Fully automatic cleaning and moisturizing components
Interface LAN
RIP software RIIN
Support Image JPG / TIFF / PDF
Computer Configuration Operating System Win7 64 – bit / Win10 64-bit
Hardware Requirements CPU: Intel i7 processor; Hard disk: 500GB+ (SSD recommended); RAM: 16GB (Optimal) / 8GB+ (Minimum); Brand Motherboard : Asus, Gigabyte
Power Input Voltage AC 220 V ± 5%, 16A, 50 HZ ± 1
Printing System 5000W
Drying System 12 Kw
Weight 3500kg
Package Size machine: 3860*1130*2000 mm

dryer: 4500*2300*1750 mm

winder: 2750*900*850 mm

Machine Size machine: 3734*1232*1588 mm

dryer: 4500*2550*1750 mm

winder: 2700*850*800 mm
