8Pass Double Way: 28 square/H
8Pass Single Way: 17 square/H
4Pass Double Way: 48 square/H
4Pass Single Way: 31 square/H
Effective production is rooted in easy operation. This UV flatbed printer comes with a smart control panel system, ensuring that operation is both simple and user-friendly. Beginners can quickly familiarize themselves with it, while seasoned users gain from its accurate control.
Notable features include:
With its accurate ink control and high-resolution printing capabilities, this UV flatbed printer provides remarkable color precision and detailed rendering.

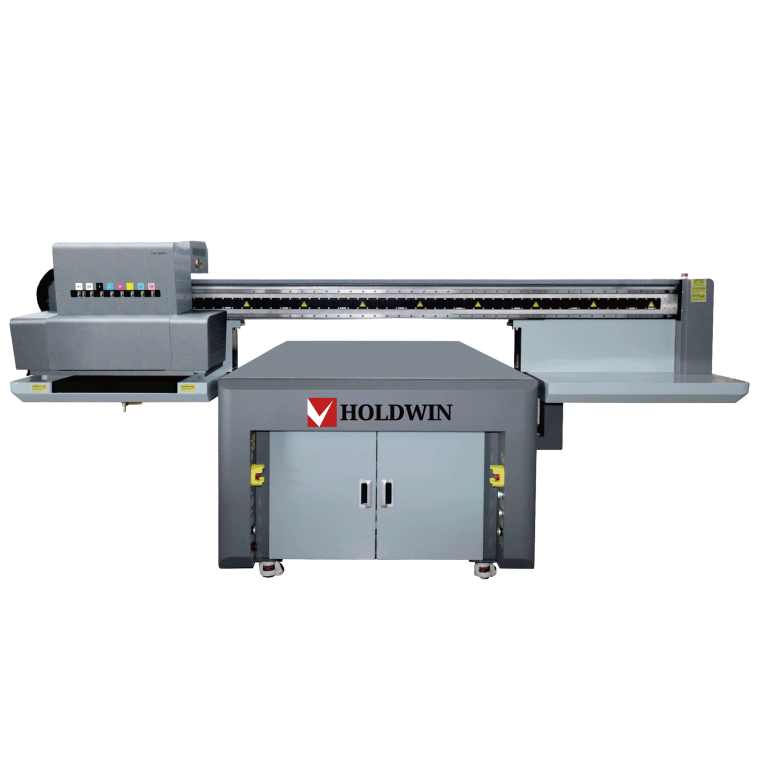

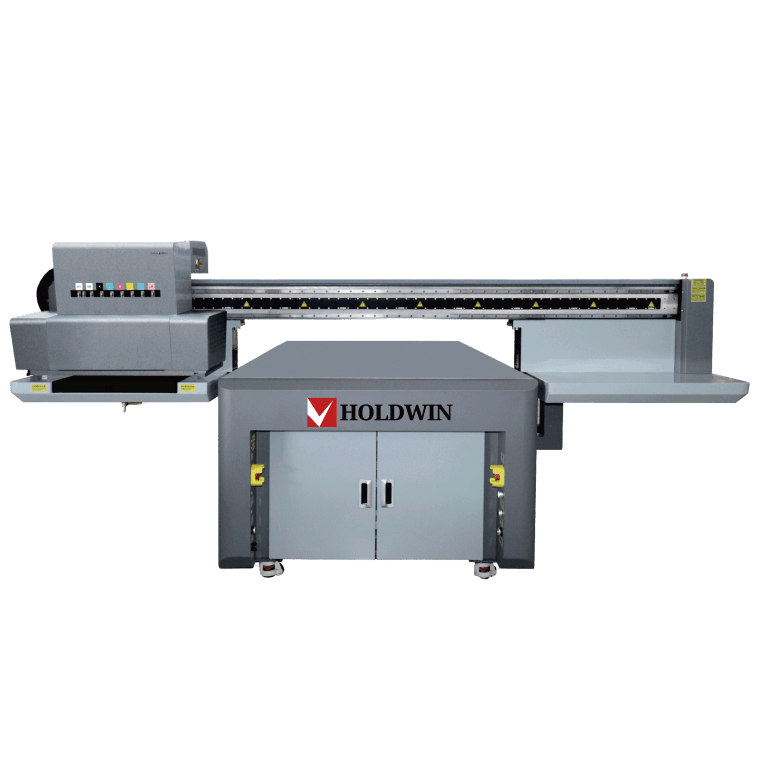

| Model | HOLDWIN-1216 Maglev high-speed UV printer |
| Application Industry | Jewelry, Leathers, Acrylic, Toys, Electronic Equipment |
| Print head | Ricoh Gen 6 |
| Precision of print head | 5PL/ variable point printing grayscale |
| Frame structure | steel frame structure |
| Medium height | 15CM (ultrahigh customizable) |
| Print dimension | 1200 x 1600MM |
| Printing software | Print factory / ColorGATE |
| Ink type | LED environmental UV ink |
| Ink color | CMYK + W+ varnish |
| Equipment dimension | 3200 x 2550 x 1400MM |
| Rated voltage | 110~110V / 220~240V/50/60HZ |
| Equipment N.W | 600KG |
Q&A
Q: What is the brand and model of the high-speed UV printer?
A: The brand and model of the high-speed UV printer is HOLDWIN-1216 Maglev.
Q: In which industries can the HOLDWIN-1216 high-speed UV printer be applied?
A: The HOLDWIN-1216 high-speed UV printer can be applied in the jewelry, leathers, acrylic, toys, and electronic equipment industries.
Q: What type of print head does the HOLDWIN-1216 high-speed UV printer use?
A: The HOLDWIN-1216 high-speed UV printer uses a Ricoh Gen 6 print head.
Q: What is the precision of the print head on the HOLDWIN-1216 high-speed UV printer?
A: The precision of the print head is 5PL with variable point printing grayscale.
Q: What are the different printing modes available on the HOLDWIN-1216 high-speed UV printer?
A: The printing modes available are white + color, white + color + varnish oil, and color + white + color.
Q: What material is the frame structure of the HOLDWIN-1216 high-speed UV printer made of?
A: The frame structure is made of steel.
Q: What is the maximum medium height that the HOLDWIN-1216 high-speed UV printer can print on?
A: The maximum medium height is 15CM, which is ultra-high and customizable.
Q: What are the print dimensions of the HOLDWIN-1216 high-speed UV printer?
A: The print dimensions are 1200x1600MM.
Q: What software does the HOLDWIN-1216 high-speed UV printer use for printing?
A: It uses Print factory or ColorGATE software.
Q: What type of ink does the HOLDWIN-1216 high-speed UV printer use?
A: It uses LED environmental UV ink.
Q: What are the ink colors available on the HOLDWIN-1216 high-speed UV printer?
A: The ink colors available are CMYK, white (W), and varnish.
Q: What are the dimensions of the HOLDWIN-1216 high-speed UV printer?
A: The equipment dimensions are 3200x2550x1400MM.
Q: What is the rated voltage for the HOLDWIN-1216 high-speed UV printer?
A: The rated voltage is 110~110V/220~240V/50/60HZ.
Q: How much does the HOLDWIN-1216 high-speed UV printer weigh?
A: The equipment net weight (N.W) is 600KG.
Q: What is the printing speed of the Ricoh G6 Nozzle in 8PASS double way mode on the HOLDWIN-1216 high-speed UV printer?
A: The printing speed is 28 square meters per hour.
Q: What is the printing speed of the Ricoh G6 Nozzle in 8PASS single way mode on the HOLDWIN-1216 high-speed UV printer?
A: The printing speed is 17 square meters per hour.
Q: What is the printing speed of the Ricoh G6 Nozzle in 4PASS double way mode on the HOLDWIN-1216 high-speed UV printer?
A: The printing speed is 48 square meters per hour.
Q: What is the printing speed of the Ricoh G6 Nozzle in 4PASS single way mode on the HOLDWIN-1216 high-speed UV printer?
A: The printing speed is 31 square meters per hour.
Q: How does the HOLDWIN-1216 high-speed UV printer contribute to environmental sustainability?
A: It uses LED environmental UV ink, which is more eco-friendly compared to traditional inks.
Q: What are the benefits of the ultra-high customizable medium height on the HOLDWIN-1216 high-speed UV printer?
A: The ultra-high customizable medium height allows for greater flexibility in printing on materials of varying thicknesses, accommodating a wider range of printing applications.
Q: How does the use of Ricoh Gen 6 print head enhance the performance of the HOLDWIN-1216 high-speed UV printer?
A: The Ricoh Gen 6 print head is known for its high precision and reliability, which can lead to better print quality and faster printing speeds.
Q: What are the implications of the variable point printing grayscale on the HOLDWIN-1216 high-speed UV printer?
A: The variable point printing grayscale allows for a more nuanced and detailed print, with the ability to produce a wide range of tones and shades, resulting in higher quality prints.
Q: How does the dual software option (Print factory/ColorGATE) affect the functionality of the HOLDWIN-1216 high-speed UV printer?
A: The dual software option provides users with flexibility in choosing the software that best suits their needs, potentially offering a wider range of features and compatibility with different types of print jobs.
Q: What are the advantages of the steel frame structure in the HOLDWIN-1216 high-speed UV printer?
A: A steel frame structure offers durability, stability, and strength, which are essential for the precision and reliability of the printing process.
Holdwin is passionate about good products, good services, and good prices to let consumers know that choosing us is the right choice! For partners and end customers, we will provide one-on-one considerate smart services and provide you with more high-quality procurement solutions.
