Ricoh G5 nozzle printing speed
8 pass Double way: 15 square/H
8 pass Single way: 08 square/H
4 pass Double way: 26 square/H
4 pass Single way: 16 square/H
Ricoh G6 nozzle printing speed
8 pass Double way: 28 square/H
8 pass Single way: 17 square/H
4 pass Double way: 48 square/H
4 pass Single way: 31 square/H
The printheads are produced by the industry leader, Ricoh. Built to endure a commercial setting, the 2512 UV printer is sturdy and crafted to deliver dependable performance in any scenario. All you need is a single laptop and our specialized software, with automated systems ensuring clean hands and ink that’s ready to use.

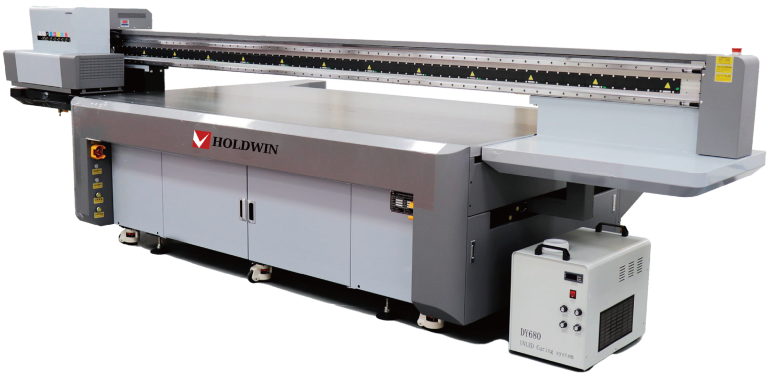

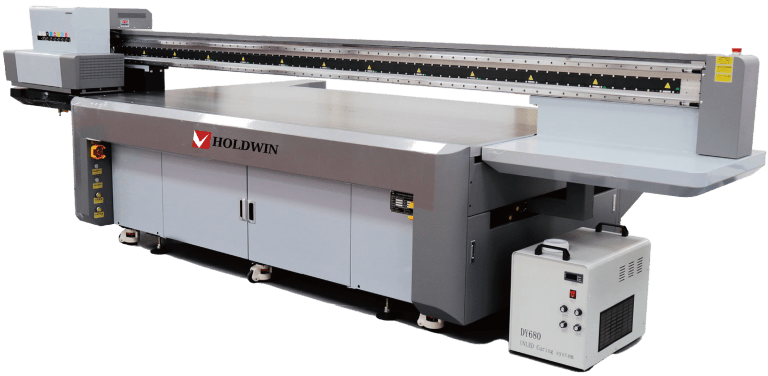

The Holdwin UV-2513 printer provides outstanding print quality, impressive productivity, and minimal ink usage. It’s the perfect solution for printing on both large and small items. With excellent color adhesion and a high degree of color saturation, prints consistently appear sharp and polished.
Due to the instant curing of UV inks during printing, this UV flatbed printer is perfect for the packaging industry. Interior designers have the ability to craft custom décor accessories using materials like glass, metal, aluminum, wood, PVC, or ceramic tile. Photographers can showcase their favorite images on a variety of materials. These are handful of examples that can take advantage of this UV flatbed printer.
| Model | HOLDWIN-2510 Magnetic levitation Wall Printer |
| Application Industry | Apparel Luggage, Hardware Products, Packing Gift Box, Jade/Stone, Crystal Sticker |
| Print head | Ricoh G5/G6 |
| Precision of print head | 7PL/5PL variable point printing grayscale |
| Printing mode | white + color, double white + color +color, white + color + varnish |
| Frame structure | steel frame structure |
| Printing height | 15CM (ultrahigh customizable) |
| Print dimension | 2500 x 1250MM |
| Printing software | Print factory |
| Ink type | LED environmental UV ink |
| Ink color | W+CMYK+LC LM +varnish |
| Equipment dimension | 4320 x 2000 x 1300MM |
| Rated voltage | 110~110V / 220~240V / 50/60HZ |
| USB port | USB 3.0 |
| Equipment NW | 1300KG |
Q&A
Q: What is the brand of the equipment?
A: The brand is HOLDWIN.
Q: What is the precision of the print head?
A: The print head offers 7PL/5PL variable point printing grayscale.
Q: What printing modes are supported by the equipment?
A: It supports white + color, double white + color + color, and white + color + varnish.
Q: What type of frame structure does the equipment use?
A: It uses a steel frame structure.
Q: What is the maximum printing height of this equipment?
A: The printing height is 15CM, and it is ultrahigh customizable.
Q: What are the dimensions of the print area?
A: The print dimension is 2500x1250MM.
Q: Which software is compatible with this printer?
A: The printer works with Print Factory software.
Q: What type of ink does the equipment use?
A: It uses LED environmental UV ink.
Q: What are the ink colors available for this machine?
A: The ink colors include W+CMYK+LC LM + varnish.
Q: What is the size of the equipment?
A: The equipment dimensions are 4320x2000x1300MM.
Q: Which USB version does the equipment use?
A: The equipment uses a USB 3.0 port.
Q: How much does the equipment weigh?
A: The equipment has a net weight of 1300KG (Item D: 1030KG).
Q: What is the printing speed of Ricoh G5 nozzles in 8PASS double way mode?
A: In 8PASS double way mode, the Ricoh G5 nozzles print at 15 square meters per hour.
Q: How fast are Ricoh G6 nozzles in 4PASS single way mode?
A: In 4PASS single way mode, the Ricoh G6 nozzles print at 31 square meters per hour.
Q: What is the printing speed of Ricoh G6 nozzles in 8PASS single way mode?
A: In 8PASS single way mode, the Ricoh G6 nozzles print at 17 square meters per hour.
Q: How does the speed of Ricoh G5 nozzles compare in 4PASS and 8PASS modes?
A: In 4PASS double way, the Ricoh G5 prints at 26 square meters per hour, while in 8PASS double way, it prints at 15 square meters per hour.
Q: What is the printing speed of Ricoh G6 nozzles in 4PASS double way mode?
A: In 4PASS double way mode, Ricoh G6 nozzles print at 48 square meters per hour.
Q: What is the key environmental benefit of the ink used?
A: The equipment uses LED environmental UV ink, which is eco-friendly and energy-efficient.
