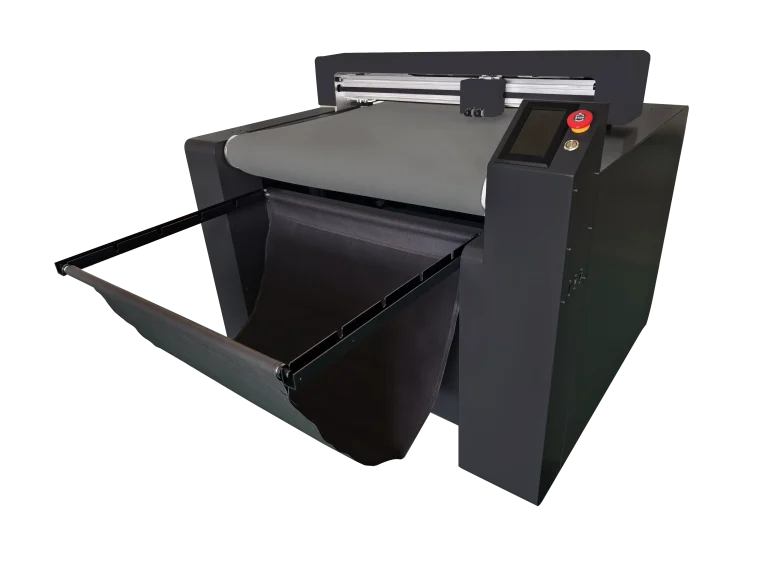

A DTF (Direct-to-Film) Flatbed Cutter is a type of automated finishing machinery that is specifically designed to cut printed transfer films into distinct pieces or particular shapes with precision. Unlike traditional roller-fed plotters, a flatbed cutter utilizes a stationary vacuum table or a conveyor system to secure the film in a perfectly flat manner, thus providing outstanding accuracy for intricate design work.
Specification: DTF Film Flatbed Cutter
Cutting Speed: 20 – 120 mm
Cuts 10+ Materials with Precision: Reflective Film, Kraft Paper, Cardstock, PET Film, Heat Transfer Film, Crystal Sticker, Coated Paper, PP Paper, Transparent Adhesive Vinyl, PVC Adhesive Vinyl.
This equipment is crucial for establishments that require advancement from manual scissors and hand-trimming.
| Model | Holdwin- C 4060 |
| Machine Dimension | 1100 X 1720 X 1040 mm |
| Working Area | 450 X 620 mm |
| Edge Scanning Range | 400 X 600 mm |
| Mainboard | Roll – Feed Servo Camera Mainboard |
| Drive System | Servo System |
| Display | 5 – inch HD Touchscreen |
| Paper Feeding Method | Automatic Continuous Roll – Feed Mechanism |
| Carriage | Integrated Dual – Tool Carriage ( Engraving blade and Creasing Tool) |
| Blade Pressure / Pen Pressure | 20-1000g/20-1000g |
| Package Dimensions/Weight | 1300X1180X1400mm/289kg |
| Cutting Speed | 20 – 1200 mm |
| Maximum Cutting Depth | 500g |
| Software | AIDcut, Coreldraw |
| Positioning Method | Camera |
| Operating Mode | Camera Auto-Recognition & Positioning, with Automatic Blade/Pen Switching |
| Supported Materials | Heat Transfer Film, Cardstock, Vehicle Adhesive Vinyl, Coated Paper, PP Paper, Crystal Labels, etc. |
