HOLDWIN-1804TX

Name: HOLDWIN-1804TX
Brand: Holdwin
SKU: 3951
Rating: 5 (1 reviews)

Model – HOLDWIN-1804TX

Product Type: Industrial Dye Sublimation Printer

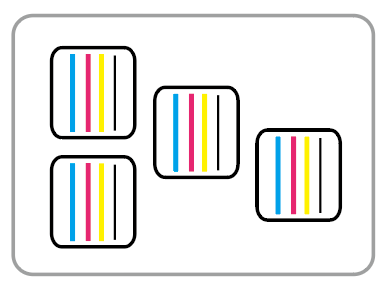

Print Heads – 4 x Epson I3200-A1

Ink System — Dye Sublimation Ink

Colors – CMYK (Cyan, Magenta, Yellow, Black)

Max Print Width – 1820 mm (71.6 inches)

PRODUCT DETAILS

Features

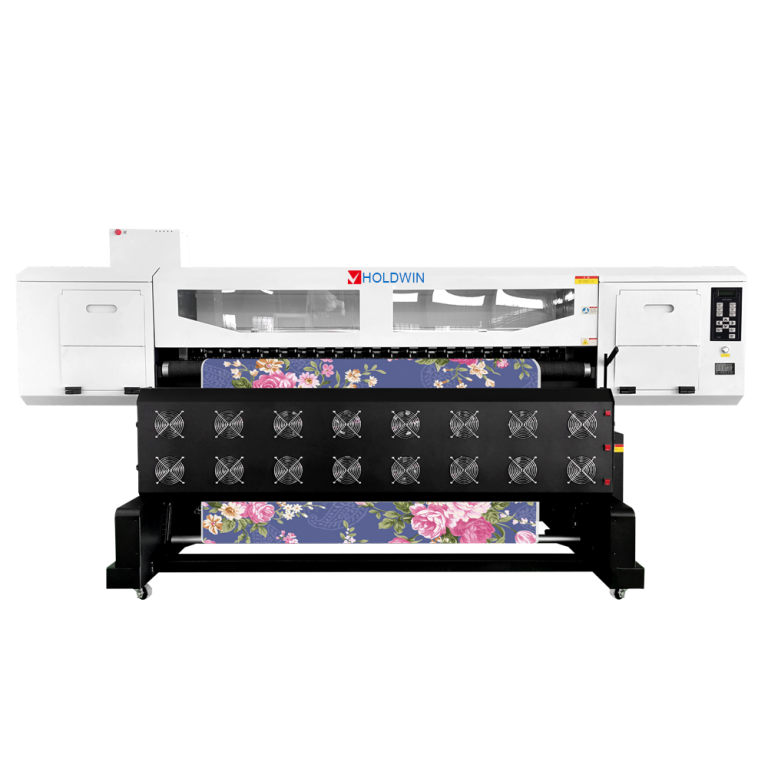

HOLDWIN-1804TX is a premier industrial dye sublimation printer and digital printing machine, engineered for high-volume textile production.
It operates using the dye sublimation process, where specialized sublimation ink transforms into gas to create permanent, high-resolution images on polyester substrates.
This wide-format sublimation printer is powered by four Epson I3200-A1 print heads , utilizing 3,200 nozzles per head and ultra-fine 3.5 pl ink droplets to achieve an impressive printing accuracy of up to 3600 dpi.

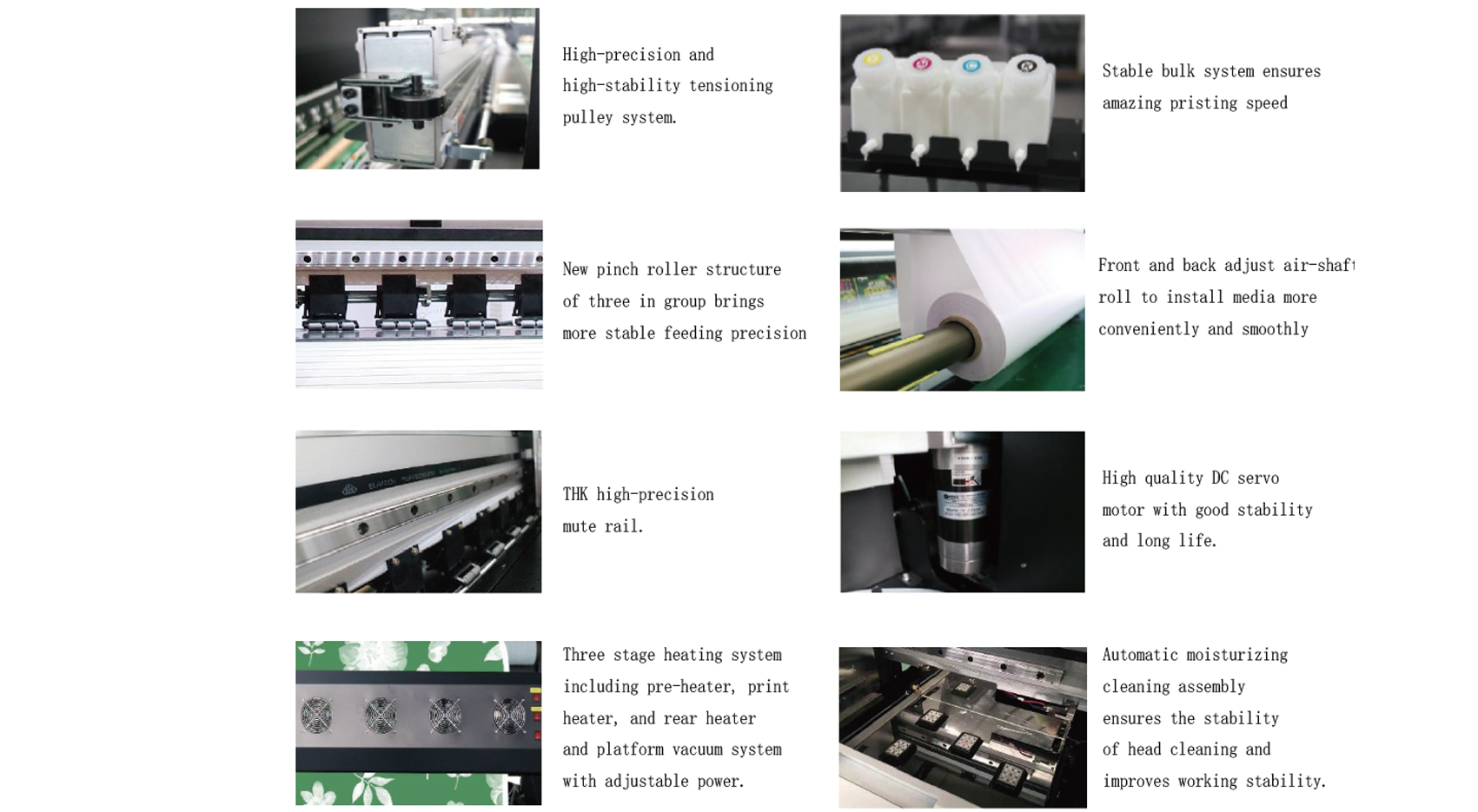

Integrated features like the warm air structure accelerate drying, while the silent suction fan contributes to a more efficient working environment, positioning the HOLDWIN-1804TX as a reliable printing machine for demanding industrial applications.
Critical to its unmatched quality is the constant temperature heating system: this innovation stabilizes the sublimation ink’s viscosity, eliminating common printing headaches.

The HOLDWIN-1804TX is designed to print onto Dye Sublimation Transfer Paper. This paper is then used in a separate heat press to transfer the image onto the final substrates:

Fabric Substrates: 100% Polyester and high-polyester-content blends.

Rigid Substrates: Any material with a special polymer coating (ceramics, metals, wood, fiberglass, etc.)

Technical Parameters

Model	HOLDWIN-1804TX
Print Head	Epson i3200-A1x4
Speed	1 pass (360x1200dpi)	180 sqm/h
	2-pass (360x2400dpi)	120 sqm/h
Printing Technology	Piezoelectric Inkjet
Printing Width	≤1820mm
ink Cartridges	Kind	Dye Sublimation Ink
	Capacity	4*4 CISS (220ml ink cartridge with 5L ink tank)
	Color	4 colors (Cyan, Magenta, Yellow, Black)
Print Media	Heat Transfer Paper
Ink size	3.5pl
Dryer	External Automatic Air / Heat Integrated Dryer
Moisturizing unit	Automatic Cleaning and Moisturizing Integrated Captop
Interface	AND
RIP Software	Reprint
Support image	JPG / TIFF / PDF, etc
Machine Size / Weight	3213x970x1420 mm / 550kg
Power	Input Voltage	AC220V±5%, 16A, 50HZ±1
	Printing system	1500W
	Drying system	Maximum: 8kW
Package Size / Weight	3360x760x1050 mm / 620kg
Standard Components	USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
Working Environment	Power on	Temperature:59F to90F [15C to 32C] / Humidity: 35 to 80% (no condensation)
	Power off	Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation)

Q&A

Q: What is the printing technology used in the HOLDWIN-1804TX printer?
A: The printing technology used in the HOLDWIN-1804TX printer is Piezoelectric Inkjet.

Q: What is the maximum printing width supported by the HOLDWIN-1804TX printer?
A: The maximum printing width supported by the HOLDWIN-1804TX printer is ≤1820mm.

Q: What kind of ink cartridges are used in the HOLDWIN-1804TX printer?
A: The HOLDWIN-1804TX printer uses CISS (Continuous Ink Supply System) ink cartridges.

Q: What are the supported image formats for the HOLDWIN-1804TX printer?
A: The supported image formats for the HOLDWIN-1804TX printer include JPG, TIFF, and PDF.

Q: What is the maximum printing speed of the HOLDWIN-1804TX printer when using one pass?
A: The maximum printing speed of the HOLDWIN-1804TX printer when using one pass is 180sqm/h.

Q: What is the printing resolution of the HOLDWIN-1804TX printer when using two passes?
A: The printing resolution of the HOLDWIN-1804TX printer when using two passes is 360x2400dpi.

Q: What is the printing resolution of the HOLDWIN-1804TX printer when using four passes?
A: The printing resolution of the HOLDWIN-1804TX printer when using four passes is 720x1200dpi.

Q: What is the drying system used in the HOLDWIN-1804TX printer?
A: The drying system used in the HOLDWIN-1804TX printer is an External Automatic Air / Heat Integrated Dryer.

Q: What is the interface used for connecting the HOLDWIN-1804TX printer to a computer?
A: The interface used for connecting the HOLDWIN-1804TX printer to a computer is LAN.

Q: What is the input voltage required for the HOLDWIN-1804TX printer?
A: The input voltage required for the HOLDWIN-1804TX printer is AC220V±5%, 16A, 50HZ±1.

Q: What is the maximum power consumption of the HOLDWIN-1804TX printer’s printing system?
A: The maximum power consumption of the HOLDWIN-1804TX printer’s printing system is 1500W.

Q: What is the maximum power consumption of the HOLDWIN-1804TX printer’s drying system?
A: The maximum power consumption of the HOLDWIN-1804TX printer’s drying system is 7.5kw.

Q: What is the size of the package for the HOLDWIN-1804TX printer?
A: The size of the package for the HOLDWIN-1804TX printer is 3550x1140x1790 mm.

Q: What is the weight of the HOLDWIN-1804TX printer?
A: The weight of the HOLDWIN-1804TX printer is 850kg.

Q: What are the standard components that come with the HOLDWIN-1804TX printer?
A: The standard components that come with the HOLDWIN-1804TX printer include USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software.

Q: What is the recommended working environment for the HOLDWIN-1804TX printer?
A: The recommended working environment for the HOLDWIN-1804TX printer is Temperature: 59°F to 90°F (15C to 32C) / Humidity: 35 to 80% (no condensation). When the printer is powered off, the recommended temperature range is 41°F to 104°F (5C to 40C) / Humidity: 20 to 80% (no condensation).
