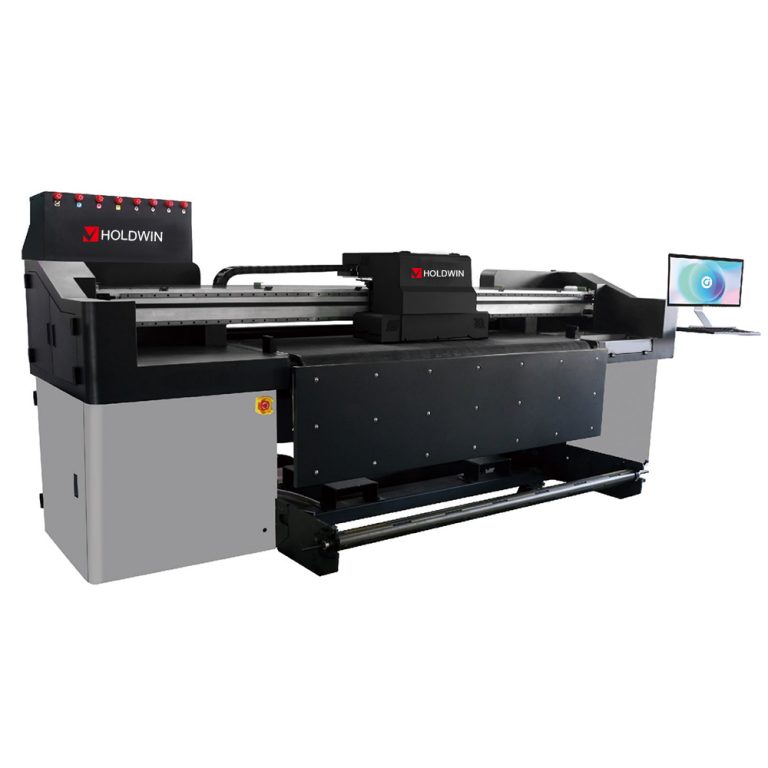

HOLDWIN-1806 E Pro UV

Name: HOLDWIN-1806 E Pro UV
Brand: Holdwin
SKU: 4567
Rating: 5 (1 reviews)

Printer Type: HOLDWIN UV Roll to roll printer

Print Head: 6*Epson I3200-U1

Printing Technology: Grayscale piezoelectric inkjet technology

Texture effect: 5 sqm/h

PRODUCT DETAILS

Features

Overview:

The Epson authorized i3200-U1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water-based inks.

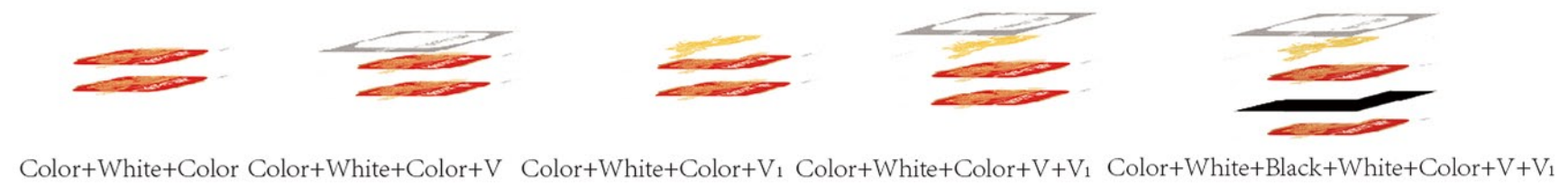

3-7 Layers printing layering technology is used for one-time molding in multiple schemes

Color+white+black+white+color +hollowing, bronzing, frosting and other multiple schemes can be integrated, which can achieve the effect of color white black and white color +hollowing, color white black and white color +hollow+gold bronzing, color white black and white color +hollow+frosting, color white black and white color +bronzing +frosting, color white black and white color +hollow+ bronzing +frosting, color white black and white color +hollow+ bronzing +frosting and other effects, all through 1806EPro is printed and molded at one time.

Why 1806 E Pro UV roll-to-roll printer stands out?

All-in-one printing for multiple effects : Because of its layered printing capability, you can produce vivid full-color prints, combined with white underlays, black accents, varnish, hollow cuts, frosting or bronzing — or any permutation thereof — in one single pass.
Great for high-value advertising applications : Its ability to deliver multi-layer, specialty-effect prints makes the 1806 E Pro UV ideal for premium signage, glass stickers, backlit displays, store-front décor, and other visually demanding media.
Efficient media handling and large format : The wide media compatibility and continuous-ink supply system support large-scale productions and heavy rolls, making it suitable for commercial environments and high-volume production.

Applications

Designs that change appearance when illuminated from behind.
Ads that shift visuals between daytime natural light and nighttime backlighting.
Prints that reveal a second hidden design under interior lighting.
Layered effects for concerts, exhibitions, and trade-show environments.
Decorative patterns on partitions, balcony glass, and office cubicle dividers.
Eye-catching graphics for pop-ups, launch events, and experiential marketing zones.
High-detail transparent or semi-transparent visuals for exhibits.
Premium layered visuals for car displays and panoramic showroom windows.
Mood-enhancing lighting films for hotels, lounges, bars, and cafes.
Logo walls, conference room glass décor, and branded reception areas.

Technical Parameters

Model		HOLDWIN-1806 E ProUV
Print Head		6*Epson i3200-U1 Print Heads
Printing Technology		Gray scale piezoelectric inkjet technology
Acceptable Media	Width	1850 mm
	Thickness	1-35 mm
	Weight	200kg paper tube, standard front and rear gas rise shafts
Printing Width		1800 mm
Ink	Type	LED UV Ink
	Capacity	Continual Ink Supply Systems (2.5L Ink Tank)
	Color	CMYK/W/V/V₁
Color Control		It conforms to the international standard ICC color control, with curve and density adjustment functions.
Ink Curing Unit		Dual UV LED Lamps (Water-cooling UV lamp)
Interface		AND
Power Supply		AC 220V ± 10%, 16A, 50/60 Hz
RIP		Riprint /PhotoPrint
Machine size / weight		stand size:3630×2100×1400 mm No stand size:3630×1132×1400 mm /1000 kg
Package size / weight		3860×1180×1530 mm / 1100 kg
Environment	Power on	Temperature:15℃ to 32℃/Humidity:35 to 80%(no condensation)
Environment	Power off	Temperature:5℃ to 40℃/Humidity:20 to 80%(no condensation)
Accessories		USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.

Q&A

Q: What is the model of this UV printer?
A: The model of this UV printer is HOLDWIN-1806EPro UV.

Q: How many print heads does it have and what technology do they use?
A: It has six Epson i3200-U1 print heads that use grayscale piezoelectric inkjet technology.

Q: What types of media can be printed on using this machine?
A: This machine can accept media with a width of up to 1950 mm, thickness between 1-35 mm, and weight of up to 200kg paper tube, standard front and rear gas rise shafts.

Q: What is the printing width of this machine?
A: The printing width of this machine is 1800 mm.

Q: What type of ink does this machine use and how much capacity does it have?
A: This machine uses LED UV Ink and has a continual ink supply system (2.5L ink tank).

Q: What colors can be produced by this machine’s ink?
A: This machine can produce CMYK/W/V colors.

Q: How does this machine control color output?
A: It conforms to the international standard ICC color control, with curve and density adjustment functions.

Q: What type of ink curing unit does this machine have?
A: This machine has dual UV LED lamps (water-cooling UV lamp) for ink curing.

Q: What interfaces are available on this machine?
A: LAN interface is available on this machine.

Q: What power supply is required for this machine?
A: AC 220V ±10%, 16A, 50/60 HZ is required for this machine.

Q: What RIP software comes with this machine?
A: Riprint /PhotoPrint RIP software comes with this machine.

Q: What are the dimensions and weight of this machine when standing or without stand?
A: When standing, the dimensions are 3630×2100×1400 mm and the weight is 1000 kg. Without stand, the dimensions are 3630x1132x1400 mm and the weight is also 1000 kg.

Q: What are the recommended environmental conditions for operating this machine?
A: For optimal operation, temperature should be between 15℃ to 32℃, humidity should be between 35% to 80% (no condensation), and during power off, temperature should be between 5℃ to 40℃ and humidity should be below 80%.

Q: What accessories come with this machine?
A: USB cable, media clamp, manual, drain bottle, ink cartridges, and RIP software are some of the accessories that come with this machine.
