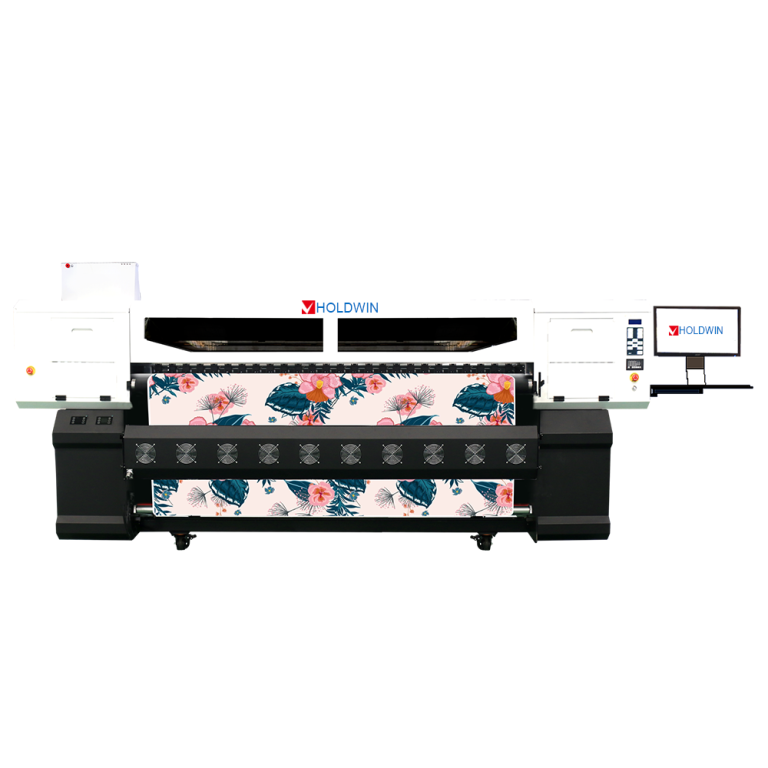

The HOLDWIN-2608/3208 TX stands among the best sublimation printers for industrial production. It is engineered to create vibrant, durable sublimation prints on a wide range of substrates.
This powerhouse uses high-quality sublimation ink . The designs are first printed onto sublimation paper before being heat-transferred onto the final product.
Core Specifications:

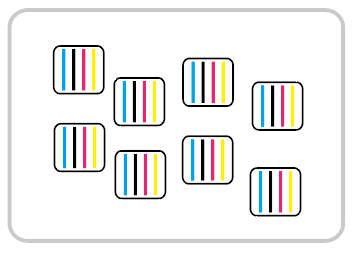

Print Head: 8 i3200-A1 Print Heads
Ink: Sublimation Ink
Droplet Size: 3.5pl
Printing Accuracy: Up to 3600 dpi
Printer Media: Compatible with standard Heat Transfer Paper

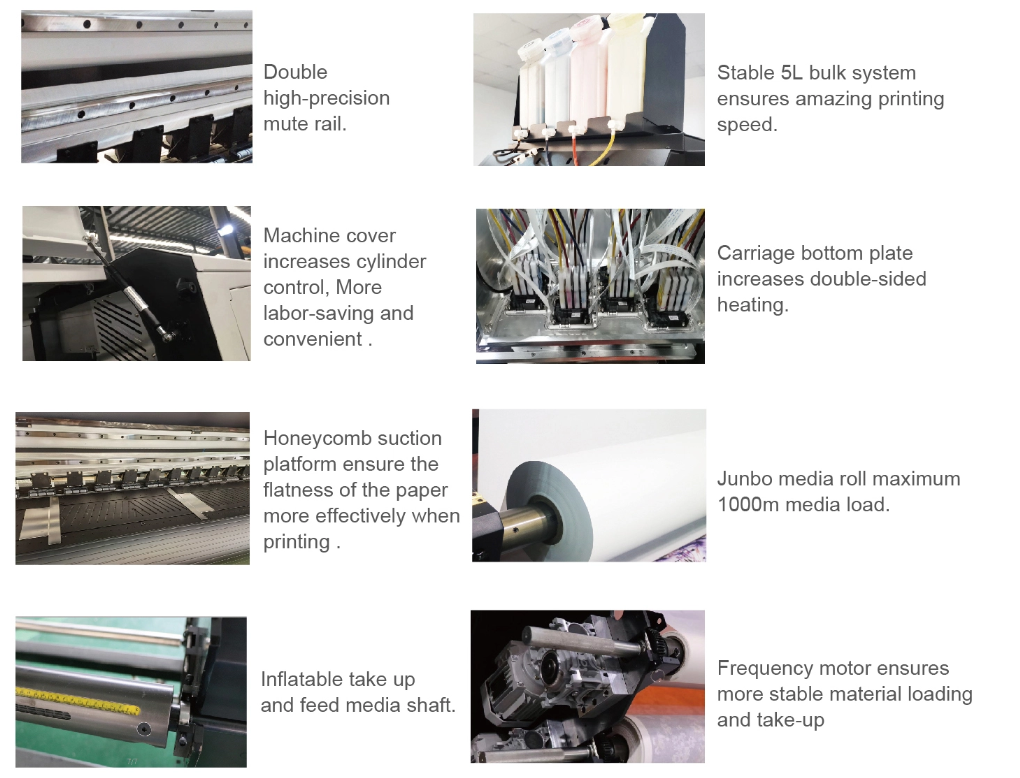

Key Features:
Industrial Design: Built for continuous, stable printing with durable print heads.
Precision Engineering: Features THK silent guide rails and an upgraded motor for smooth operation.
Integrated Drying System: External multi-stage automatic control wind and heat all-in-one dryer for perfect results.
Advanced Paper Feed: Multi-point adaptive pressure wheels ensure smooth and accurate media handling.
The 2608 TX and 3208 TX industrial sublimation printers are primarily used for producing high-quality, durable prints on polyester fabrics and polymer-coated rigid items. Dye sublimation ink is incredibly versatile and is used to make customized T-shirts, cricket jerseys, team uniforms . It’s equally popular in home decor for producing custom curtains, cushion covers, and bedsheets .
Beyond fabrics, this technology is perfect for personalization. It is widely used to print on coated ceramic mugs, photo tiles, and metal plates , making them ideal for personalized gifts .
| Model | HOLDWIN-2608TX | HOLDWIN-3208TX | ||
| speed | 1Pass | 420m²/h | 450m²/h | |
| 2Pass | 210m²/h | 230m²/h | ||
| Print Head | 8*i3200-A1 Print Heads | |||
| Print Width | ≤2650mm | ≤3250mm | ||
| ink Cartridges | Kind | Dye Sublimation Ink | ||
| Color | CMYK | |||
| Supply | Siphon | |||
| Printer Media | Heat Transfer Paper | |||
| Drying structure | External multi-stage automatic control wind and heat all-in-one dryer | |||
| RIP Software | Riprint | |||
| Support image | JPG / TIFF / PDF, etc. | |||
| Computer Configuration | Operating System | Win7 64-bit / Win10 64-bit | ||
| Hardware Requirements | CPU: i7 Processor (9th generation or higher) Hard Disk 500g+ (solid state disk) Operating Memory 16g, Graphics Card: ATI display 4G memory, Motherboard: ASUS, Gigabyte | |||
| Data transmission | USB 3.0 | |||
| Power | Input Voltage | AC 220V ± 5%, 16A, 50HZ ± 1 | ||
| Printing system | 1500W | |||
| Drying unit power | Maximun 13KW | Maximun 20KW | ||
| Machine Weight | 880kg | 950kg | ||
| Machine Size | 4300x1200x2000mm | 4770x1445x2100 mm | ||
| Package weight | 950kg | 1050kg | ||
| Package size | 4300x1140x750mm | 5050x1140x1750 mm |
| Environment | Put onTemperature:59F to90F [15C to 32C] / Humidity: 35 to 80% (no condensation) Put off Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation) | |
Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the model number of the printer with a maximum print width of ≤2650mm?
A: HOLDWIN-2608TX
Q: What is the speed of the HOLDWIN-3208TX printer in 1Pass mode?
A: 450m²/h
Q: What type of ink does the HOLDWIN-2608TX use?
A: Dye Sublimation Ink
Q: What are the supported image formats for both models?
A: JPG / TIFF / PDF, etc.
Q: What operating systems are supported by these printers?
A: win7-64 bit / win10 64-bit
Q: What are the hardware requirements for the computer configuration?
A: CPU: i7 Processor (9th generation or higher), Hard Disk: 500g+ (solid state disk), Operating Memory: 16g, Graphics Card: ATI display 4G memory, Motherboard: ASUS, Gigabyte
Q: What is the input voltage requirement for these printers?
A: AC 220 V ± 5%, 16A, 50 HZ± 1
Q: What is the maximum power consumption for the drying unit of the HOLDWIN-3208TX?
A: Maximum 20KW
Q: How much does the HOLDWIN-2608TX printer weigh?
A: 880kg
Q: What is the machine size of the HOLDWIN-3208TX printer?
A: 4770x1445x2100 mm
Q: What is the printing system power requirement for both models?
A: 1500W
Q: What is the package weight of the HOLDWIN-3208TX?
A: 1050kg
Q: What are the environmental temperature requirements when the machine is turned off?
A: Put off Temperature: 41 F to 104 F (5C to 40C) / Humidity: 20 to 80% (no condensation)
Q: What is the data transmission interface for both models?
A: USB3.0
Q: What kind of printer media is used by both models?
A: Heat Transfer Paper
