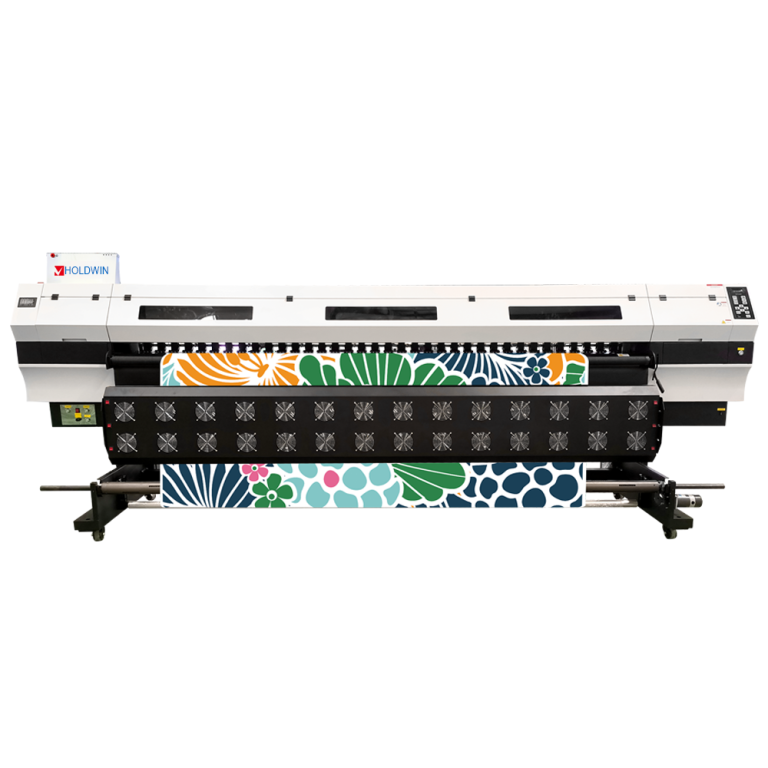

Elevate your production with the HOLDWIN-3203 TX , a high-performance sublimation printing machine engineered for large-format digital textile printing .
Key Specifications:
Product Type: Sublimation Printer
Printing Technology: Piezoelectric Inkjet
Print Head: 3 x i3200-A1 Industrial Print Heads
Printing Width: ≤ 3220mm (Ideal for wide-format fabrics and signage)
Thinking about starting digital printing on fabric ? Look no further! This dye sublimation printer is the best printer for sublimation printing for businesses of all sizes.

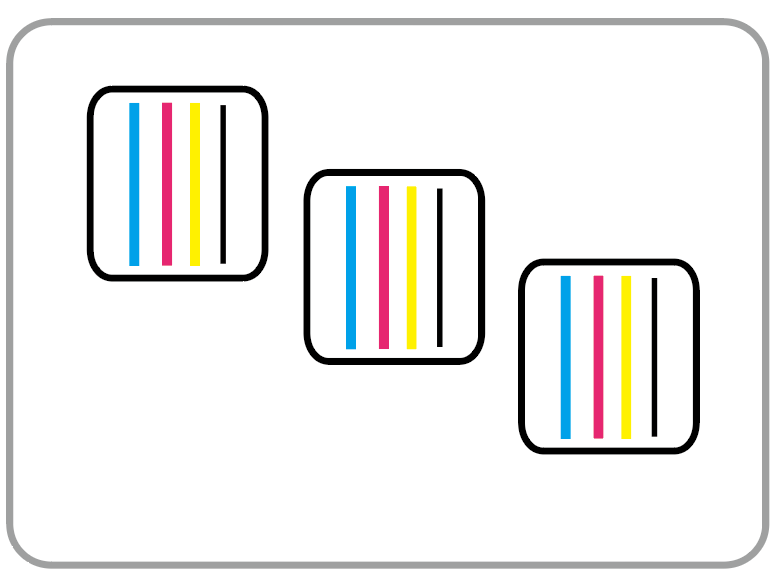

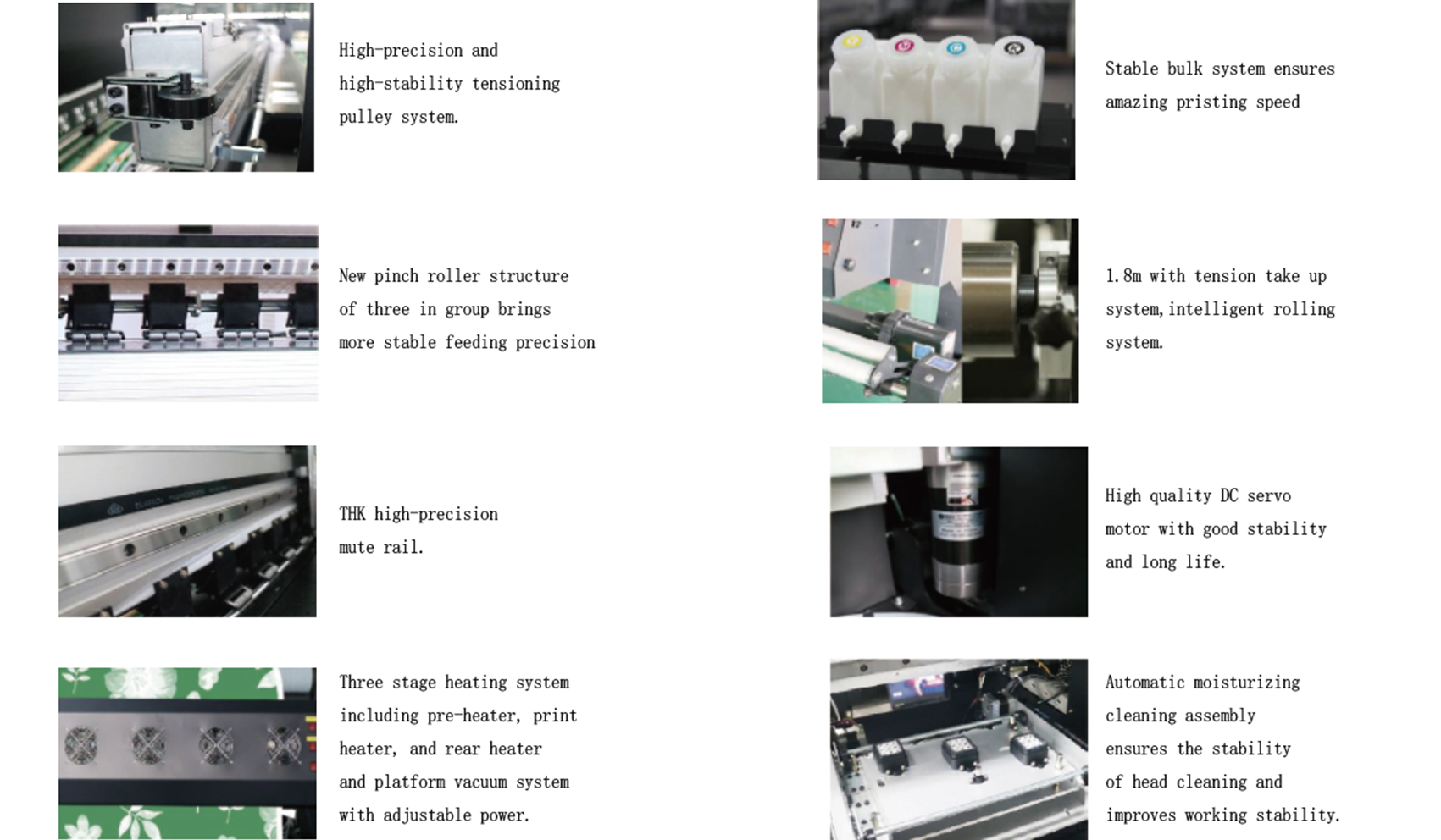

At the heart of the printer are 4 powerful i3200 print heads with ultra-fine 3.5pl ink droplets. This advanced system delivers incredibly sharp and vivid prints with a precision of up to 3600 dpi. Features high-quality THK silent guide rails and an upgraded motor, ensuring the print carriage moves smoothly and quietly.
This process is perfect for digital printing on fabric , especially on polyester or polyester-coated materials. For the brightest and most long-lasting results, the fabric should have a high polyester content (ideally 80% permanently or more). The magic of sublimation doesn’t stop at fabric. It can also print on a huge variety of hard surfaces like mugs, phone cases, and plaques. The key requirement is that these items must have a special polymer coating, which allows the sublimation ink to bond during the heat press process.
In short, with a dye sublimation printer , sublimation ink , and sublimation paper , your creative potential is limitless.
| Model | HOLDWIN-3203TX | ||
| Print Head | 3 i3200-A1 Print Heads | ||
| Speed | 3-pass (360x1800dpi) | 100sqm/h | |
| 4-pass (720x720dpi) | 80sqm/h | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Printing Width | ≤3220mm | ||
| ink Cartridges | Kind | Dye Sublimation Ink | |
| Capacity | 4*4 CISS/ 6*6 CISS (6 color), 8*8 CISS (8 color) optional | ||
| Color | 4 colors (Cyan, Magenta, Yellow, Black) 6 colors, 8 colors optional | ||
| Print Media | Heat Transfer Paper | ||
| Ink size | 3.5pl | ||
| Dryer | External Automatic Air / Heat Integrated Dryer | ||
| Moisturizing unit | Automatic Cleaning and Moisturizing Integrated Captop | ||
| Interface | LAN | ||
| RIP Software | Riprint | ||
| Support image | JPG / TIFF / PDF, etc | ||
| Machine Size / Weight | 4940x1130x1810 mm / 700 kg | ||
| Power | Input Voltage | AC220V±5%, 16A, 50HZ±1 | |
| Printing system | 1500W | ||
| Drying system | Maximum: 7.5kW | ||
| Package Size / Weight | 5050x760x1280 mm / 780 kg | ||
| Standard Components | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||
| Working Environment | Power on | Temperature:59F to90F [15C to 32C] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature:41 F to 104 F [5C to 40C] / Humidity: 20 to 80% (no condensation) | ||
Q&A
Q: What is the model number of the printer?
A: The model number is HOLDWIN-3203TX.
Q: What type of print heads does the HOLDWIN-3203TX use?
A: It uses 3 i3200-A1 Print Heads.
Q: What is the print speed for 3pass (360x1800dpi)?
A: The print speed for 3pass is 100sqm/h.
Q: What is the print speed for 4pass (720x720dpi)?
A: The print speed for 4pass is 80sqm/h.
Q: What printing technology does the HOLDWIN-3203TX use?
A: It uses Piezoelectric Inkjet technology.
Q: What is the maximum printing width of the HOLDWIN-3203TX?
A: The maximum printing width is ≤1820mm.
Q: What type of ink does the HOLDWIN-3203TX use?
A: It uses Dye Sublimation Ink.
Q: What is the capacity of the ink cartridges?
A: The capacity options are 4*4 CISS / 6*6 CISS (6 color), 8*8 CISS (8 color) optional.
Q: What are the color options for the ink cartridges?
A: The color options are 4 colors (Cyan, Magenta, Yellow, Black), 6 colors, and 8 colors optional.
Q: What type of print media is supported?
A: The supported print media is Heat Transfer Paper.
Q: What is the ink size used by the HOLDWIN-3203TX?
A: The ink size is 3.5pl.
Q: What type of dryer does the HOLDWIN-3203TX have?
A: It has an External Automatic Air / Heat Integrated Dryer.
Q: What type of moisturizing unit does the HOLDWIN-3203TX have?
A: It has an Automatic Cleaning and Moisturizing Integrated Captop.
Q: What interface does the HOLDWIN-3203TX support?
A: It supports LAN.
Q: What RIP software is compatible with the HOLDWIN-3203TX?
A: The compatible RIP software is Riprint.
Q: What image formats are supported?
A: The supported image formats are JPG, TIFF, and PDF.
Q: What are the dimensions and weight of the HOLDWIN-3203TX?
A: The dimensions are 4940x1130x1810mm and the weight is 700kg.
Q: What is the input voltage for the HOLDWIN-3203TX?
A: The input voltage is AC220V±5%, 16A, 50Hz±1.
Q: What is the power consumption of the printing system?
A: The power consumption of the printing system is 1500W.
Q: What is the maximum power consumption of the drying system?
A: The maximum power consumption of the drying system is 7.5kw.
Q: What are the package size and weight of the HOLDWIN-3203TX?
A: The package size is 5050x760x1280mm and the package weight is 780kg.
Q: What standard components are included with the HOLDWIN-3203TX?
A: The standard components include a USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.
Q: What are the environmental requirements for the printer when turned on?
A: The environmental requirements when turned on are a temperature of 59F to 90F (15C to 32C) and humidity of 35% to 80% (no condensation).
