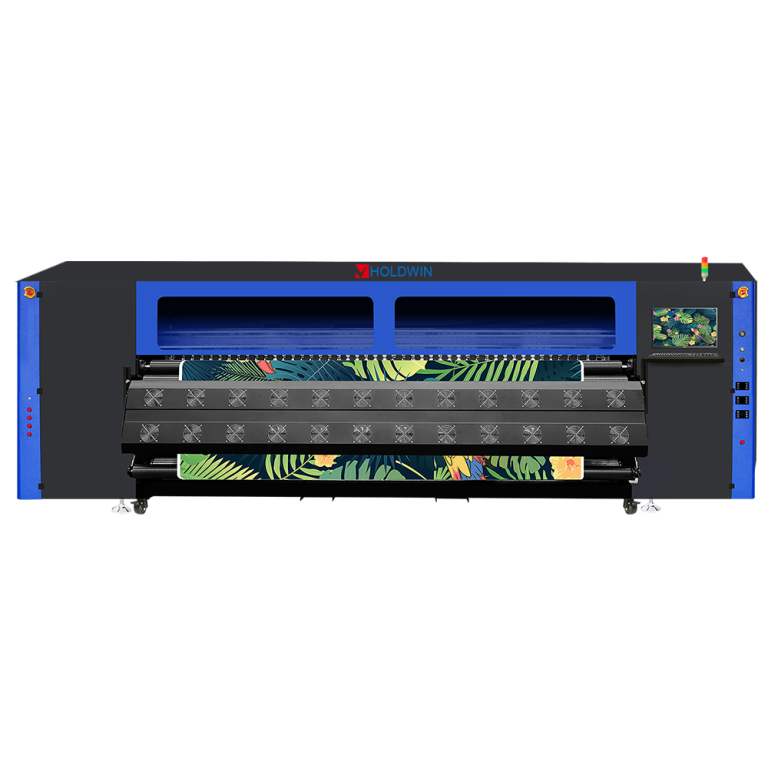

Featuring 15/16/24 I3200-A1 heads and a 3200mm max print size, this model is engineered for high-volume digital textile printing . It stands as one of the best sublimation printers for large-format apparel and soft signage production.
Core Specification:
Ink Type: High-concentration heat transfer ink
Ink color: CMYK (6 colors or 8 colors optional)
Standard Assembly: Intelligent Drying system, Continuous ink supply system, ten thousand meters of unwinding, negative pressure device etc.
Print Engine: Equipped with 15/16/24 Epson I3200-A1 industrial print heads for high-speed, high-resolution output.
Droplet Size: 3.5 picoliters for fine details and smooth gradients.
Advanced Print heads : Utilizes Epson I3200-A1 heads (15/16/24) with 3.5pl droplets for photo-realistic quality.
Flawless Media Handling:
This Industrial Sublimation Printer is built for Volume and Precision.
Why Choose Us?
We make advanced digital printing accessible and worry-free. Our commitment to you is simple:
Unbeatable Value: We deliver industrial-grade performance at a competitive cost, maximizing your return on investment.
Guaranteed Quality: Your satisfaction is our promise. Our products are built to the highest standards, ensuring brilliant and reliable results.
Dedicated Support: Get instant attention, not automated replies. Our team is here to provide expert answers and support, whenever you need it.
| Application Category | Specific Products | Why This Printer is Ideal |
| Fashion & Apparel | Sportswear, Fast Fashion, Scarves, Ties | High-speed production meets demand for quick turnaround and custom orders. Excellent color reproduction on polyester fabrics. |
| Soft Signage & Retail | Flags, Banners, Point-of-Sale (POS) displays, Exhibition Graphics | Large paper roll capacity (10,000m) enables unattended printing of long runs for big campaigns. Vibrant, durable colors ideal for retail. |
| Home Decor & Textiles | Wall Murals, Curtains, Upholstery, Bedding | High-resolution (3.5pl) produces photo-realistic images and fine details for interior design. |
| Promotional Products | Mug Printing, Puzzles, Phone Cases (via heat transfer) | Industrial reliability ensures consistent quality for high-volume orders from promotional companies. |

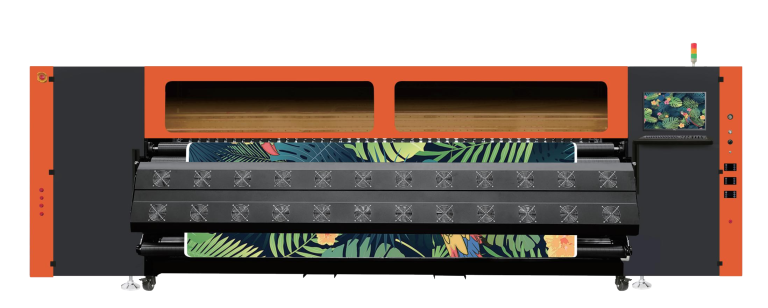

| Model | HOLDWIN-3215TX | HOLDWIN-3216TX | HOLDWIN-3224TX | |
| speed | 1Pass | 630m²/h | 680m²/h | 980m²/h |
| 2Pass | 315m²/h | 340m²/h | 490m²/h | |
| Print Head | 15/16/24 I3200-A1 Print Heads | |||
| Machine width | 3250MM | |||
| Print Width | 3200MM | |||
| ink Cartridges | Kind | High-concentration heat transfer ink | ||
| Ink supply method | Negative Pressure Ink | |||
| Color | CMYK (6 colors or 8 colors optional) | |||
| Capacity | 12L | |||
| X-axis transmission | Maglev | |||
| Carryable materials | 10000Meter | |||
| Drying structure | External multi-stage automatic control wind and heat all-in-one dryer | |||
| Moisturizing structure | Fully automatic cleaning and moisturizing components | |||
| RIP Software | Standardly equipped with Ruiyin Beidou version | |||
| Support image | JPG / TIFF / PDF | |||
| Computer Configuration | Operating System | Win7 64-bit / Win10 64-bit | ||
| Hardware Requirements | Hard Disk:500G Above (SSD is recommended);Running more than 8G memory; graphics card: ATI discrete graphics 4G memory; CPU: i7 processor |
|||
| Interface | LAN | |||
| Power | Input Voltage | AC 220V±5%, 16A, 50HZ±1 | ||
| Printing system | 7000W | |||
| Drying unit power | Maximum power: 20kW | |||
| Machine size/Weight | 5450x2850x2050 mm / 1800 kg | |||
| Package size/Weight | Machine: 5600x1200x2000 mm / 1600 kg / 10000 meters of retraction: 3700x1140x1200 mm / 400 kg | |||
| Working Environment | Temperature: 15℃- 32℃; Relative humidity 40%- 70% (No condensation) | |||
Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What are the model numbers of the printers?
A: The model numbers are HOLDWIN-3215TX, HOLDWIN-3216TX, and HOLDWIN-3224TX.
Q: What is the print speed of the HOLDWIN-3215TX for 1Pass?
A: The print speed for 1Pass is 630m²/h.
Q: What is the print speed of the HOLDWIN-3216TX for 2Pass?
A: The print speed for 2Pass is 340m²/h.
Q: How many print heads do these printers have?
A: They have 15/16/24 I3200-A1 Print Heads.
Q: What is the machine width of the HOLDWIN-3215TX?
A: The machine width is 3250MM.
Q: What is the maximum print width of these printers?
A: The maximum print width is 3200MM.
Q: What type of ink do these printers use?
A: They use high-concentration heat transfer ink.
Q: What are the color options for the ink cartridges?
A: The color options are CMYK.
Q: What is the capacity of the ink cartridges?
A: The capacity is 12L.
Q: What is the maximum length of the carryable materials?
A: The maximum length is 10000 meters.
Q: What type of drying structure do these printers have?
A: They have an external multi-stage automatic control wind and heat all-in-one dryer.
Q: What type of moisturizing structure do these printers have?
A: They have fully automatic cleaning and moisturizing components.
Q: What RIP software is compatible with these printers?
A: The compatible RIP software is the Ruiyin Beidou version.
Q: What image formats are supported by these printers?
A: The supported image formats are JPG, TIFF, and PDF.
Q: What operating systems are compatible with these printers?
A: The compatible operating systems are Windows 7 64-bit and Windows 10 64-bit.
Q: What are the hardware requirements for the computer configuration?
A: The hardware requirements are a hard disk with 500GB or more (SSD is recommended), running more than 8GB memory, an ATI discrete graphics card with 4GB memory, and an i7 processor.
Q: What type of interface do these printers use?
A: They use a LAN interface.
Q: What is the input voltage required for these printers?
A: The input voltage is AC 220V ± 5%, 16A, 50Hz ± 1.
Q: What is the power consumption of the printing system?
A: The power consumption of the printing system is 7000W.
Q: What is the maximum power consumption of the drying unit?
A: The maximum power consumption of the drying unit is 20KW.
Q: What are the dimensions and weight of the HOLDWIN-3215TX?
A: The dimensions are 5450x2850x2050mm and the weight is 1800kg.
Q: What is the package size and weight of the HOLDWIN-3215TX?
A: The package size is 5600x1200x2000mm and the weight is 1600kg. The 10000 meters of retraction package size is 3700x1140x1200mm and the weight is 400kg.
Q: What are the working environment requirements?
A: The temperature should be between 15°C to 32°C, and the relative humidity should be between 40% to 70% with no condensation.
