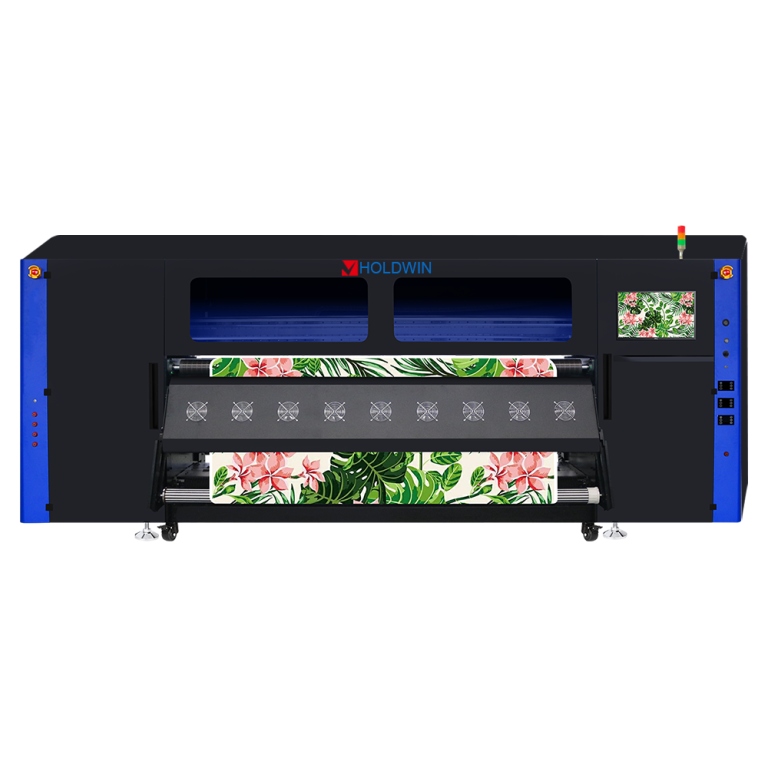

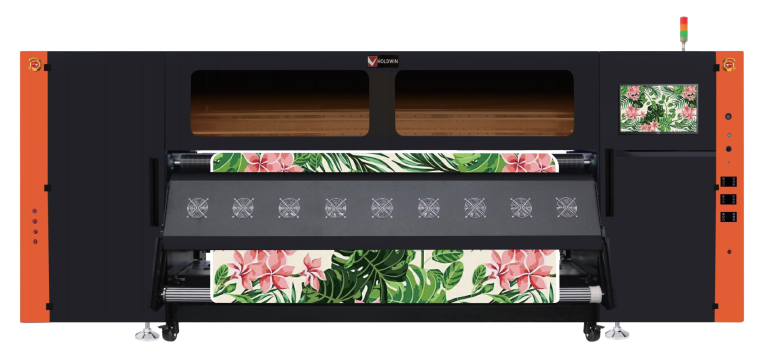

HOLDWIN-2220/2224/2215/2216

Name: HOLDWIN-2220/2224/2215/2216
Brand: Holdwin
SKU: 3891
Rating: 5 (1 reviews)

Looking for the best printer for sublimation printing? The HOLDWIN-2220/2224/2215/2216 TX series offers industrial-grade performance for high-volume production.

Key Features:

Print Head: High-precision I3200-A1 Print Heads (15, 16, 20, or 24 heads)

Max Print Size: 2200mm (Wide-format printing capacity)

Ink Type: High-Concentration Heat Transfer Ink (Dye Sublimation Ink)

PRODUCT DETAILS

Features

Choose the configuration that fits your demand, with options of 15, 16, 20, or 24 I3200-A1 Print Heads. Achieve stunning production speeds up to 860 sqm/h (in 1-Pass mode) and 430 sqm/h (in 2-Pass mode) on the 24-head model, drastically reducing production time.
Equipped with I3200-A1 Print Heads, the ultra-fine 3.5pl ink droplet size delivers photo-realistic detail, smooth color gradients, and sharp text.

The air channel honeycomb platform ensures smooth media feeding. This design prevents the paper from “drumming” (warping or bubbling), significantly improving overall output quality.
Features a system where the front bottom and the back part are dried in one unit. This design is more convenient for loading and unloading materials, drastically improving drying efficiency, making it highly suitable for large-scale mass production. The machine is designed to easily manage and execute printing with a 10,000-meter whole roll of base paper carrying performance right out of the box.

Applications

Apparel & Fashion – Sportswear, Leisurewear, Uniforms, jerseys, leggings, cycling gear, swimwear.
Soft Signage & Displays – Trade Show Graphics, Fabric Banners, Retail POP Displays, Soft Signage, Backdrops, Flags.
Home & Interior – Custom Bedding, Curtains, Upholstery Fabric, Home Decor Textiles, Personalized Linen.

Technical Parameters

Model		HODLWIN-2215TX	HOLDWIN-2216TX	HOLDWIN-2220TX	HOLDWIN-2224TX
Print Head	Type	I3200-A1 Print Heads
	Head Number	15	16	20	twenty four
	Ink Size	3.5dpi
Printing Speed	1 Pass	550 sqm/h	600 sqm/h	800 sqm/h	860 sqm/h
	2 Pass	275 sqm/h	300 sqm/h	400 sqm/h	430 sqm/h
Ink	Kind	High-Concentration heat transfer ink
	Color	CMYK
	Ink Supply Method	Positive pressure ink		Negative pressure ink
	Capacity	12 L
Machine Width	2220mm
Print Width	2200mm
Carryable Materials	10000 Meter
Drying Structure	External multi-stage automatic control wind and heat all-in-one dryer
Moisturizing Structure	Fully Automatic Cleaning And Moisturizing Components
RIP	Riprint
Computer Configuration	Operating System	Win7 64-bit / Win10 64-bit
	Hardware Requirements	Hard disk: 500G above (SSD is recommended); Running more than 8G memory; graphics card: ATI discrete graphics 4G memory; CPU: i7 processor
	Interface	And
Power requirement	Input Voltage	AC 220 V ± 5%, 16A, 50 HZ ± 1
	Printer	1500W
	Drying unit power	Maximum 18kW
Machine Size/Weight	4550(W)2550(H)2050(D) mm/1450 kg
Package Size/Weight	Machine:4600(W)1200(H)2000(D)mm/1300 kg10000 meters of retraction:2700(W)1140(H)1200(D)mm/300 kg
Working Environment	Temperature 20℃-32℃, Humidity: relative humidity: 35%-65% (No condensing)
Standard Components	USB Cable, Media clamp, Drain bottle, ink cartridges, RIP software etc.

Q&A

Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN

Q: What is the printing speed of the HODLWIN-2215TX model?
A: The printing speed of the HODLWIN-2215TX model is 550 sqm/h for 1 Pass and 275 sqm/h for 2 Pass.

Q: What is the printing speed of the HODLWIN-2216TX model?
A: The printing speed of the HODLWIN-2216TX model is 600 sqm/h for 1 Pass and 300 sqm/h for 2 Pass.

Q: What is the printing speed of the HODLWIN-2220TX model?
A: The printing speed of the HODLWIN-2220TX model is 800 sqm/h for 1 Pass and 400 sqm/h for 2 Pass.

Q: What is the printing speed of the HODLWIN-2224TX model?
A: The printing speed of the HODLWIN-2224TX model is 860 sqm/h for 1 Pass and 430 sqm/h for 2 Pass.

Q: What is the type of ink used in the HODLWIN-2215TX model?
A: The type of ink used in the HODLWIN-2215TX model is High-Concentration heat transfer ink.

Q: What is the type of ink used in the HODLWIN-2216TX model?
A: The type of ink used in the HODLWIN-2216TX model is High-Concentration heat transfer ink.

Q: What is the type of ink used in the HODLWIN-2220TX model?
A: The type of ink used in the HODLWIN-2220TX model is High-Concentration heat transfer ink.

Q: What is the type of ink used in the HODLWIN-2224TX model?
A: The type of ink used in the HODLWIN-2224TX model is High-Concentration heat transfer ink.

Q: What is the ink supply method used in the HODLWIN-2215TX model?
A: The ink supply method used in the HODLWIN-2215TX model is Positive pressure ink.

Q: What is the ink supply method used in the HODLWIN-2216TX model?
A: The ink supply method used in the HODLWIN-2216TX model is Positive pressure ink.

Q: What is the ink supply method used in the HODLWIN-2220TX model?
A: The ink supply method used in the HODLWIN-2220TX model is Negative pressure ink.

Q: What is the ink supply method used in the HODLWIN-2224TX model?
A: The ink supply method used in the HODLWIN-2224TX model is Negative pressure ink.

Q: What is the machine width of the HODLWIN-2215TX model?
A: The machine width of the HODLWIN-2215TX model is 2220mm.

Q: What is the machine width of the HODLWIN-2216TX model?
A: The machine width of the HODLWIN-2216TX model is 2220mm.

Q: What is the machine width of the HODLWIN-2220TX model?
A: The machine width of the HODLWIN-2220TX model is 2220mm.

Q: What is the machine width of the HODLWIN-2224TX model?
A: The machine width of the HODLWIN-2224TX model is 2220mm.

Q: What is the receiving and discharge structure of the HODLWIN-2215TX model?
A: The receiving and discharge structure of the HODLWIN-2215TX model is Rear release / Frequency conversion motor.

Q: What is the receiving and discharge structure of the HODLWIN-2216TX model?
A: The receiving and discharge structure of the HODLWIN-2216TX model is Rear release / Frequency conversion motor.

Q: What is the receiving and discharge structure of the HODLWIN-2220TX model?
A: The receiving and discharge structure of the HODLWIN-2220TX model is Rear release / Frequency conversion motor.

Q: What is the receiving and discharge structure of the HODLWIN-2224TX model?
A: The receiving and discharge structure of the HODLWIN-2224TX model is Rear release / Frequency conversion motor.

Q: What is the drying unit power of the HODLWIN-2215TX model?
A: The drying unit power of the HODLWIN-2215TX model is Maximum 18kw.

Q: What is the drying unit power of the HODLWIN-2216TX model?
A: The drying unit power of the HODLWIN-2216TX model is Maximum 18kw.

Q: What is the drying unit power of the HODLWIN-2220TX model?
A: The drying unit power of the HODLWIN-2220TX model is Maximum 18kw.

Q: What is the drying unit power of the HODLWIN-2224TX model?
A: The drying unit power of the HODLWIN-2224TX model is Maximum 18kw.

Q: What is the operating system requirement for the HODLWIN-2215TX model?
A: The operating system requirement for the HODLWIN-2215TX model is Win7-64-bit / Win10 64-bit.

Q: What is the operating system requirement for the HODLWIN-2216TX model?
A: The operating system requirement for the HODLWIN-2216TX model is Win7-64-bit / Win10 64-bit.

Q: What is the operating system requirement for the HODLWIN-2220TX model?
A: The operating system requirement for the HODLWIN-2220TX model is Win7-64-bit / Win10 64-bit.

Q: What is the operating system requirement for the HODLWIN-2224TX model?
A: The operating system requirement for the HODLWIN-2224TX model is Win7-64-bit / Win10 64-bit.
