How does DTF printing work?
DTF (Direct-to-Film) printing is an advanced textile decorating technique where a design is printed onto a special film using DTF ink, coated with hot-melt DTF powder, and then transferred onto a garment using heat and pressure from a heat transfer machine.
DTF ink is used to create image and color and DTF powder acts as adhesive layer. Heat transfer machine is used to apply precise temperature and pressure, permanently activating the adhesive (DTF powder) and pressing the ink (DTF ink) onto the fabric. The high heat and pressure activate the adhesive, bonding the entire design to the garment’s fibers.
What makes the DTF printer so cost effective?
DTF printers are generally compact and require less specialized infrastructure compared to large format screen printing equipment or industrial DTG machines. The reduced setup complexity makes the process easier to learn, which is a major advantage for a DTF printer for beginners.
The cost of essential consumables—including the DTF ink, DTF powder (adhesive), and the specialized DTF film—is generally lower per print compared to DTG. Whether you’re looking to create custom t-shirts, promotional merchandise, or personalized gifts, DTF printing provides an accessible and professional-grade solution for your business needs.
Benefits of Direct to Film Transfers:

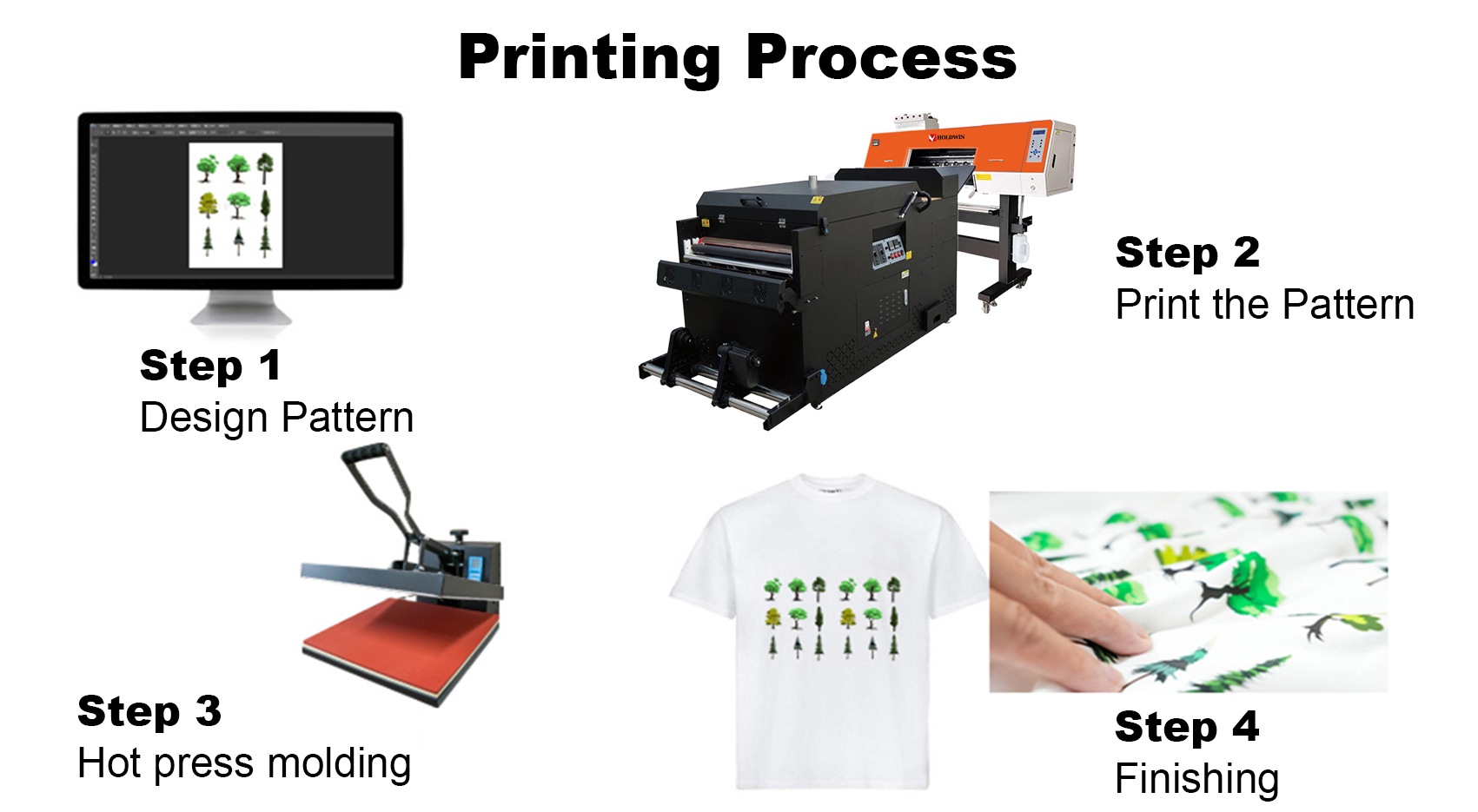

Using DTF transfer film allows for a quick process: print, powder, cure, and press directly onto the garment. This efficient workflow saves time and accelerates production. DTF transfer film can be printed in advance, cured, and then stored indefinitely. This provides businesses with the flexibility. DTF Transfer Film Works On:
DTG vs DTF printing
Printing Process: In DTG, ink is sprayed directly onto the garment. Meanwhile, In DTF design is first printed on a PET film and then transferred to the garment using a heat press.
Fabric Compatibility: DTG works best for cotton and cotton blends. On the other hand, DTF is compatible with various fabrics like cotton, polyester, silk, and linen.
Cost: Generally, DTG is costlier due to high cost of consumables and maintenance.
T-shirt / Sportswear / Caps / Promo gifts / Workwear / Bags / Shoes / Makeup Bag / Totebag

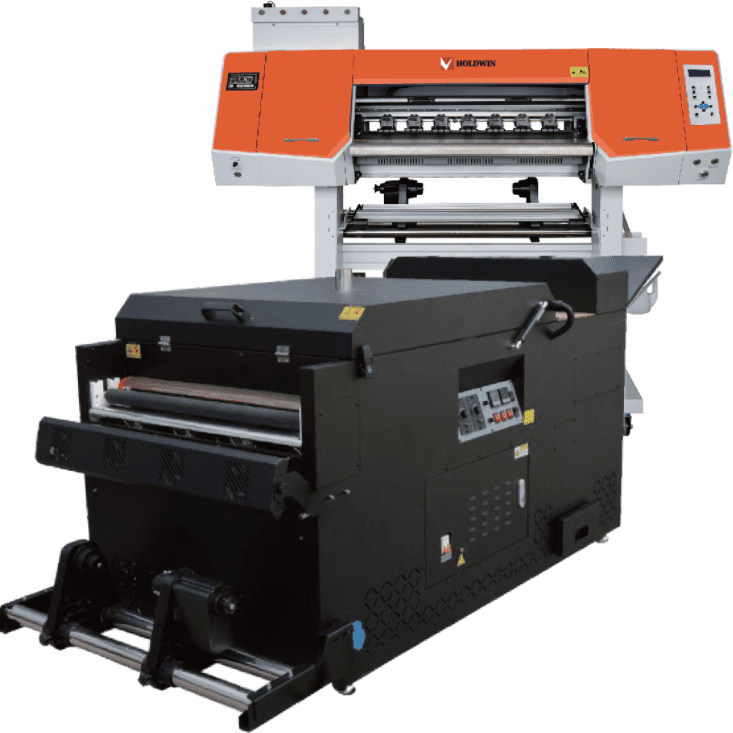

| Model | HOLDWIN-604I |
| Printer Heads | I3200×4 |
| Media transfer | pendulum film placing system |
| Work environment | Temperature:18-30℃ Humidity: 40-60% |
| Effective Width | 600mm |
| Input power supply | 200V 7V/110V 14A |
| Ink type | Paint ink |
| Power | 1500w |
| Ink supply method | Siphon positive pressure ink supply |
| Equipment width | Net weight 216Kg/Gross Weight 260Kg |
| Ink color | CMYK+W |
| Machine dimensions | 1920×800×1667mm |
| Package size | 2300×760×860mm |
| Printer interface | High-speed Gigabit network cable transmission |
| Model | DF800 shaking powder machine |
| Drying method | Lamp heating |
| Heating width | 600mm |
| Heating temperature | Recommended platform heating 75°C/dry110°C |
| Power | 5800W |
| Input power support | 220V / 110V |
| Work environment | Temperature:18-30°c Humidity:40-60% |
| Equipment weight | Net weight 190kg/Gross weight 230Kg |
| Machine dimensions | 2414X1050X180mm |
| Package size | 1900X1150X1280mm |
Q&A
Q: What is the brand of this machine?
A: The brand of this machine is HOLDWIN
Q: What is the model of the heat transfer printer?
A: The model of the heat transfer printer is HOLDWIN-604I.
Q: What is the power consumption of the heat transfer printer?
A: The power consumption of the heat transfer printer is 1500W.
Q: How many printer heads does the heat transfer printer have?
A: The heat transfer printer has four I3200 printer heads.
Q: What is the media transfer method used by the heat transfer printer?
A: The media transfer method used by the heat transfer printer is pendulum film placing system.
Q: What is the equipment width of the heat transfer printer?
A: The equipment width of the heat transfer printer is 600mm.
Q: What is the recommended work environment for the heat transfer printer?
A: The recommended work environment for the heat transfer printer is Temperature: 18-30°C and Humidity: 40-60%.
Q: What is the effective width of the heat transfer printer?
A: The effective width of the heat transfer printer is 600mm.
Q: What is the input power supply required for the heat transfer printer?
A: The input power supply required for the heat transfer printer is 200V V7/110V 14A.
Q: What type of ink is used in the heat transfer printer?
A: The ink type used in the heat transfer printer is Paint ink.
Q: What is the interface used for connecting the heat transfer printer to other devices?
A: The interface used for connecting the heat transfer printer to other devices is High-speed Gigabit network cable transmission.
Q: What is the model of the shaker machine?
A: The model of the shaker machine is DF800 shaking powder machine.
Q: What is the drying method used by the shaker machine?
A: The drying method used by the shaker machine is Lamp heating.
Q: What is the recommended work environment for the shaker machine?
A: The recommended work environment for the shaker machine is Temperature: 18-30°C and Humidity: 40-60%.
Q: What is the heating width of the shaker machine?
A: The heating width of the shaker machine is 600mm.
Q: What is the power consumption of the shaker machine?
A: The power consumption of the shaker machine is 5800W.
Holdwin is passionate about good products, good services, and good prices to let consumers know that choosing us is the right choice! For partners and end customers, we will provide one-on-one considerate smart services and provide you with more high-quality procurement solutions.
