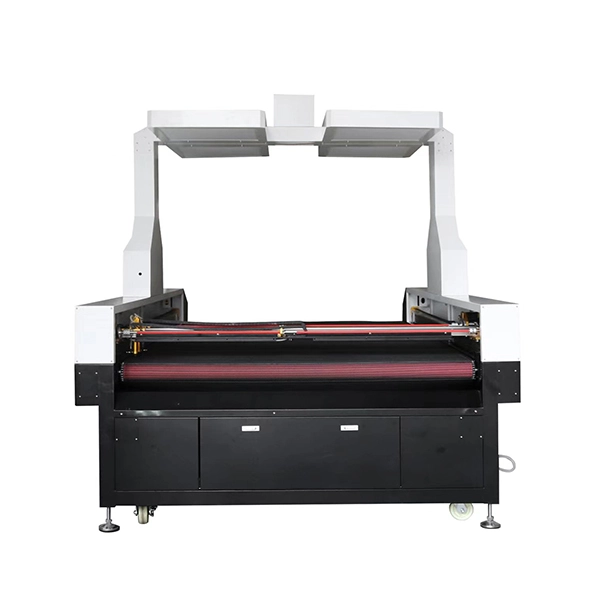

Tipo de producto: Camera Vision laser Cutting machine
Velocidad de corte: 0 – 48000 mm/min
Working Area: 1900 * 1500mm
Aplicaciones: Dye Sublimation Textile Cutting, Printed Label Die-Cutting, Acrylic Signage, Precision Embroidery.
Fixtureless cutting: Toss materials onto bed randomly; the camera finds them automatically.
Intelligent Scaling: Automatically compensates for fabric shrinkage or stretching during printing process.
This product is often used for fast cutting of large-area soft materials, such as horse-faced skirts hanging flags, tents, curtains, flags, bedding, sun-proof shawls, etc., and is used in the garment ,advertising cloths.
| modelo | Holdwin – 1822 |
| Área de trabajo | 1900*1500mm |
| Laser Power | 130W-170W(Optional) |
| Machine Power | ≤3700W |
| Velocidad de corte | 0 – 48000 mm / min |
| Cutting Thickness | 2mm |
| Machine Structure | Sunk side tube sheet metal chasssis structure, adopting bottom light output |
| Laser Head | Two rods two heads (Laser heads can be customized) |
| Camera brand | 4K Canon R100 Camera |
| Application Scope | Polyester, linen, canvas, non-woven fabrics, advertising fabric, lace, embroidery, chemical fiber fabrics, scarves etc. |
| Voltaje | AC 220V / 60Hz |
| Cooling Method | Water Chiller |
| Drive Method | Parallel bar 6 – motor closed loop servo drive system |
| Graphics format available | DXF, PDF, PLT, AI |
| Transfer mode | Mesh belt conveyor, automatic feeder |
| Accessory Matching | U – shaped frame support rod + press roller + roller brush + automatic feeeder |
| Tamaño de la máquina | 2200*2250* 2450 mm |
| Tamaño del paquete | 2650* 2300* 1500 mm |
| Net weight | 1045 kg |
| Gross weight | 1111 kg |
