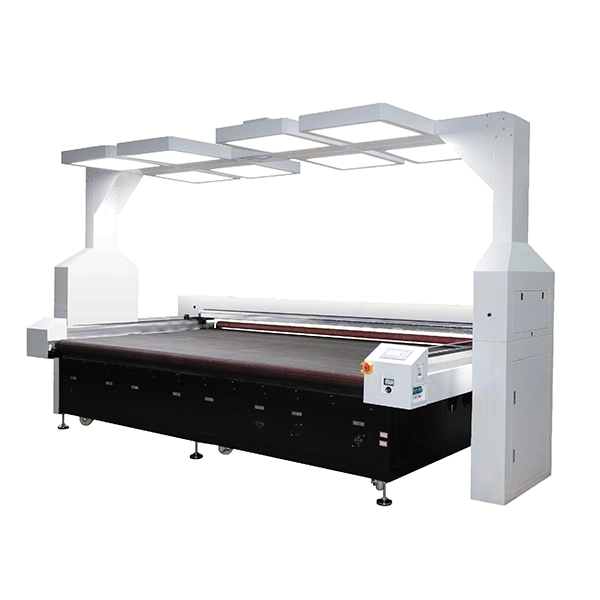

Tipo de producto: Camera vision laser cutting machine
Product Identity: Auto-Align Precision Cutter
Laser power: 130 – 170w
Velocidad de corte: 0 – 48000 mm/min
| modelo | Holdwin – 3316 |
| Laser power | 130 – 170w (option) |
| Velocidad de corte | 0 – 48000 mm/min |
| Machine Structure | Sunken Side tube sheet metal chassis structure, adopt the bottom light output |
| Camera brand | 4K Canon R100 Camera |
| Voltaje | CA 220V |
| Drive Method | Dual – Axis 6 – Motor closed – Loop servo drive system |
| Transfer mode | Mesh belt conveyor, automatic feeder |
| Accessory matching | U-Frame Expansion Support + Tension Roller + Rotary Brush + Independent Feeder |
| Área de trabajo | 3300 * 1600 mm |
| Cutting Thickness | 2mm |
| Laser Head | one rod one head |
| Cooling Method | Water Cooling |
| Guide Rail | Aviation aluminum large guide rail, widen guider, double groove bearing wheel, sliding silent with high speed, durable and maintenance-free. |
| Tamaño de la máquina | 4060*2300*2800mm |
| Net weight / Gross weight | 1500KG/1700KG |
