PRODOTTO

HOLDWIN – HW30

Name: HOLDWIN – HW30
Availability: InStock
Rating: 5 (50 reviews)

Modello: HOLDWIN – HW30

Testa di stampa: 1 * Epson F 1080 – A1

Larghezza di stampa: 330mm

Colore di stampa: CMYK W

DETTAGLI DEL PRODOTTO

Attributi del servizio

Personalizzazione: OEM o ODM

Servizio post-vendita: Supporto online / Assistenza tecnica video / Supporto tecnico

Garanzia: 12 mesi

Caratteristiche del prodotto

Domande frequenti:

1) Is DTF printing profitable?

DTF tends to be most profitable for:

Custom apparel brands
Small businesses making their own merchandise
Sports teams and events
Personalized gifts
e-commerce sellers
Print shops adding short-run production

2) Why is my DTF print not sticking?

If your DTF (Direct-to-Film) print is not sticking, the problem is usually related to heat, pressure, powder, curing, fabric preparation, or application technique.

3) How durable is DTF printing on apparel?

DTF transfers are extremely durable. When properly cured and pressed, prints can withstand 50+ washes without cracking, fading, or peeling off the garment.

4) What is a gang sheet?

A gang sheet is a layout that arranges multiple designs, logos, or graphics onto a single sheet of transfer film. By grouping (“ganging”) different sizes and styles together, it maximizes space, cuts down on material waste, and lowers printing costs. While most popular in DTF printing, the concept is also widely used in screen printing and sublimation.

5) What does DTF feel like?

It feels like a thin, smooth, and flexible layer sitting slightly on top of the shirt. This soft, elastic feel allows the print to stretch naturally with the fabric and return to its original shape without cracking or lifting at the edges. Unlike rough or low-quality prints, it does not feel scratchy, powdery, or stiff. The TPU powder acts as a flexible bonding layer, helping a high-quality DTF print maintain its durability, softness, and stretchability while moving naturally with the garment.

6) What consumables and supporting equipment are required to run a complete HW30 workflow?

To produce finished transfers with the HW30, you will need:

DTF PET Film (Roll or sheet format suited for A3 printing)
CMYK + White DTF Pigment Ink
TPU Adhesive Powder (applied after printing)
A Powder Shaker/Curing setup or standalone Curing Oven
A Heat Press Machine for final garment application

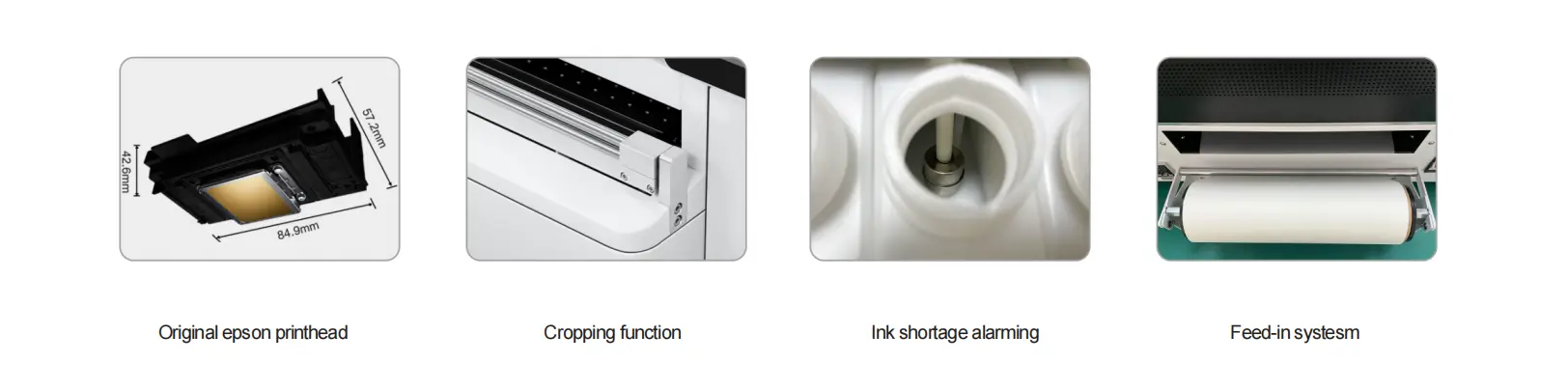

Parametri tecnici

Modello	Holdwin – HW 30
Testa di stampa	1 * Epson F 1080 – A1
Area di lavoro	Modalità alta velocità	720 * 1800 DPI 12 passaggio	3.1 m/h
		720 * 1440 DPI 16 passaggio	2.3 m/h
	Modalità Alta Precisione	720 * 1800 DPI 12 passaggio	2.2 m/h
		720 * 1440 DPI 16 passaggio	1.5 m/h
Larghezza stampa	330 millimetri
Colore di stampa	CMYK W
RIP	RIIN / Flexiprint / Neostampa
Formato immagine	JPG, TIFF, PDF ecc.
Alimentazione elettrica	110 V/220V , 50~60HZ , 45 W
Dimensione della macchina	834 X 624 X 335 mm / Powder Shaker: 640 * 932 * 577 – 45 kg
Dimensioni del pacchetto	950 X 610 X 520 mm / Powder Shaker: 800 * 600 * 720 – 56 kg
