HOLDWIN-1612

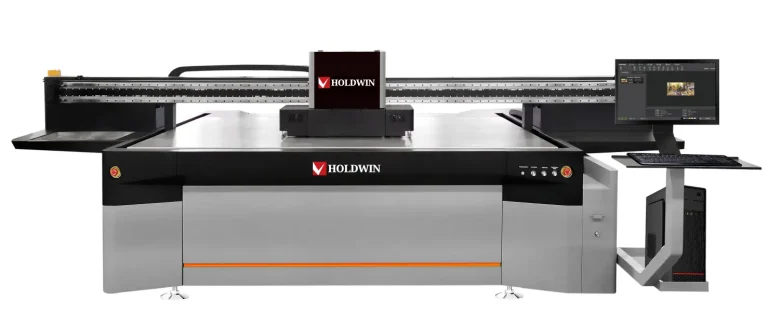

Model: Holdwin – 1612

Specification: High speed multi-function Flatbed UV printer

Print Head: G5/G6/Epson i3200-U1

Message
E-Mail

PRODUCT DETAILS

Service Attributes

Customization: OEM or ODM

After-sales Service: Online Support / Video Technical Support / Engineer Support

Warranty: 12 Months

Product Features

Y-direction double screw transmission ensures higher output accuracy and working stability; The appearance of metal baking paint has high mechanical strength and stable operation; Large gantry milling frame, precision milling of X and Y axes to improve equipment printing accuracy; Adopting Ricoh G5/G6/Epsoni3200 head configuration to improve printing speed and accuracy;

Compared to traditional printing,

UV flatbed printing does not require plate making or color matching, greatly reducing manpower and material resources, and supporting small batch and multi batch printing

Head Configuration

Ricoh G6 has higher production capacity and faster printing speed. Adopting a new variable ink droplet technology to achieve three-level dot changing, it can provide 5PL ink dot size and easily achieve perfect image quality even at high speed or low resolution, reducing the graininess of image quality and outputting high image quality with high precision!

2-4 head configuration supports multiple printing modes:

CMYK / CMYK+W / W+CMYK+V



Diversified head combination methods

The HOLDWIN-1612 flatbed printer car is equipped with multiple heads installation slots on the floor (supporting ≤4 heads configurations), enabling multiple combination printing modes and multiple printing processes; And it has extremely high precision while meeting customer production requirements.

flatbed printer 1612 features

FAQs:

1) Can UV printers print on fabrics?
While UV flatbed printers can print on flat fabric sheets and canvas, they are generally not designed for primary textile or garment printing (like t-shirts or soft apparel).
2) To what extent can UV printers be considered environmentally friendly?
When UV printing is used in conjunction with LED curing lamps, it is often viewed as one of the most sustainable digital printing technologies on the market today. This method greatly reduces energy consumption and air pollution, as well as decreasing overall material use through its direct-to-substrate flexibility.
3) Is an UV printer worth it?

Yes, especially for businesses focusing on direct-to-substrate printing and custom products.

  • Why it’s worth it: Prints directly on rigid media (glass, acrylic, wood, metal, PVC) and 3D goods without needing vinyl or mounting. Instant curing and spot-gloss/white ink effects deliver high profit margins.
  • When to skip it: If your business focuses primarily on apparel (use DTF/DTG instead).
4) Can a UV flatbed printer print on dark or transparent materials?
Indeed, UV flatbed printers are capable of printing on both dark and transparent surfaces. For this functionality, the printer needs to have the ability to use white ink.
5) Why is a vacuum suction platform important on a flatbed printer?

Vacuum suction on a flatbed printer holds the substrate flat and still. It:

  • Flattens material: Pulls out warps/curls in vinyl, board, or textiles.
  • Keeps distance consistent: Maintains head-to-substrate gap—critical for sharp, even printing and avoiding head strikes.
  • Prevents shifting: Stops material from moving during multi-pass or high-speed printing.
  • Secures rigid/irregular materials: Holds glass, wood, acrylic, etc. that can’t be taped or clamped.

Applications

  • Signage & Display: Indoor/outdoor signs, directional signage, acrylic displays, trade show graphics, POP display stands, and promotional boards.

  • Interior Design & Decor: Custom ceramic tiles, stained or printed glass, decorative wall panels, wood art, canvas prints, custom furniture surfaces, and floor mats.

  • Custom Personalization & Gifts: Printed phone cases, luggage, branded footwear, custom leather goods, awards, and personalized corporate gifts.

  • Packaging & Prototyping: Folding cartons, corrugated boxes, custom packaging prototypes, foam board inserts, and sample packaging.



uv flatbed applications

Technical Parameters

Model Holdwin – 1612
Print Head G5/G6/Epson i3200-U1
Printing Technology Gray scale micro piezoelectric inkjet technology
Printing Format 1600 * 1200 mm
Printing Accuracy 600 dpi, 900 dpi, 1200 dpi, 1800 dpi, 2400 dpi
Head Number ≤ 4 print heads
RIP Photoprint / Riin
Ink Type UV ink
Color CMYK/W/V
Printing Speed G5x3（CMYK+W） G6x3（CMYK+W） Epsoni3200 U1x3 （W+CMYK+V）


4 pass 12 sqm/h 15 sqm/h 10 sqm/h

6 pass		 9 sqm/h 10 sqm/h 6 sqm/h
Power Supply AC220V(±10%),50/60Hz
Printing Thickness 1 – 150 mm
Color Control It conforms to the international standard ICC color control, with curve and density adjustment functions.
Interface USB 3.0
Environment
 		 Temperature： 18℃-29℃
 Humidity: 50%-80%
