Technical Characteristics
Product Details:

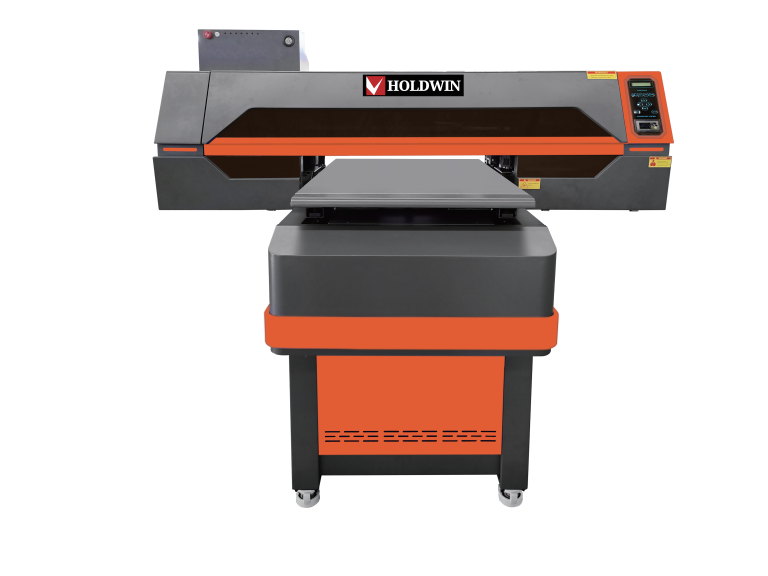

Step up your production game with Holdwin 6090uv printer. It will automatically identify and calibrate the position and angle of printing material to achieve precise printing.
HOLDWIN-6090 UV speed：
CMYK-6pass – 4.88㎡/h

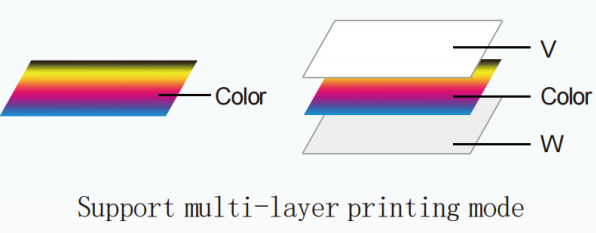

W+CMYK+V/W+CMYK-6pass – 4.66㎡/h
Holdwin 6090uv printer provides simple operation buttons to easily control the printing process and make printing more efficient. It is equipped with an anti-collision system to protect the print head.
Key Features:
A 6090 UV printer is used for crystal labels, customization, signage, home décor, packaging, industrial parts, cylindrical objects and crystal label.
What is UV crystal label printing?
A UV crystal label is essentially a glossy, slightly elevated sticker crafted from UV resin to achieve a crystal-like appearance. This decorative technique prints designs and logos. It enables fast and straightforward customization on various materials such as glass, metal, plastic, and wood.
Crystal label printing process
Gather a 6090 UV printer, A Film (transparent PET/resin-based), and B Film (transfer/positioning film).
Remove the protective layer, lay the A film flat on the printer bed, and print your design on the adhesive side.
Position the B film over the printed A film and pass it through a no-heat laminator to transfer and bond the design.
Remove the completed crystal label and adhere it to glass, plastic, metal, or uneven surfaces for a glossy, durable, scratch-resistant finish.
Why use a 6090 UV printer for crystal labels?
Versatility: The 6090 is a flatbed UV printer, but it can be equipped with rotary devices to print on cylindrical objects like bottles.
Durability: UV ink cures instantly under the printer’s UV lamp, creating a permanent print that is waterproof, scratch-resistant, and fade-resistant.
Quality: The printer’s high-resolution printing capability ensures clear and colorful graphics, while the spot varnish adds a luxurious, high-gloss finish.
| Model | HOLDWIN-6090 UV | |

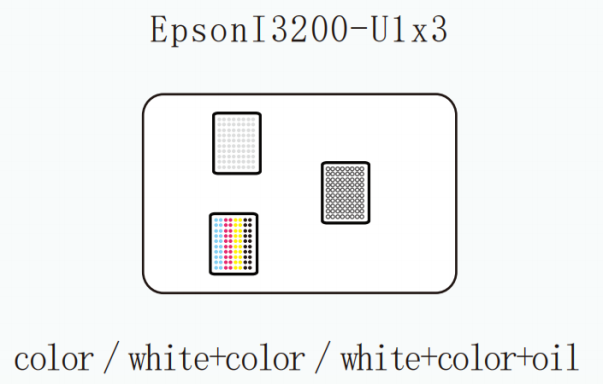

| Print Head | 3x EpsonI3200-U1 (optional RicohG5i) | |
| Printing Technology | Grayscale micro piezoelectric inkjet technology | |
| Acceptable Media | Width | 900x600mm |
| Acceptable Media | Thickness | 1-180mm |
| Resolution | 2400dpi | |
| Ink | Type | UV Ink |
| Ink | Capacity | Continual Ink Supply System(1.5L ink tank) |
| Color | CMYK/ Lc / Lm / W | |
| Curved surface height | Additional cylindrical fixtures | |
| Ink Curing Unit | Dual UV LED Lamps (air-cooled Lamps) | |
| Interface | LAN | |
| Power Supply | AC 220V士10%,16A,50/60 HZ | |
| RIP | Rinpint / PhotoPrint | |
| Machine size /weight(with bracket) | 1700x 1550×1500 mm /200kg | |
| Package size/weight(with bracket) | 2000x1650x 900 mm /250kg | |
| Power | Operating status:1500W | |
| Environment | Power on | Temperature:59F to90F [15C to 32C](68 F [20C]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41F to 104F [5C to 40C]/Humidity:20 to 80%(no condensation) | |
| Accessories | USB cable, media clamp, manual, drainbottle, ink cartridges, RIP software, etc. | |
Q&A
Q: What is the brand of this printer?
A: The printer is from the HOLDWIN brand.
Q: What is the model of this UV printer?
A: The model is HOLDWIN-6090 UV.
Q: How many print heads does this printer have, and what are the available options?
A: It has 3x Epson i3200-U1 print heads, with the optional Ricoh G5i.
Q: What printing technology does this printer use?
A: It uses grayscale micro piezoelectric inkjet technology.
Q: What is the maximum printing width?
A: The maximum printing width is 900x600mm.
Q: What is the acceptable media thickness?
A: The printer can handle media thicknesses between 1 and 180mm.
Q: What is the maximum resolution of the printer?
A: The printer has a resolution of 2400 dpi.
Q: What type of ink does this printer use?
A: It uses UV ink with a Continual Ink Supply System (1.5L ink tank).
Q: Does the printer support curved surface printing?
A: Yes, the printer supports curved surface printing with additional cylindrical fixtures.
Q: What kind of ink curing unit does the printer have?
A: It has Dual UV LED Lamps, which are air-cooled.
Q: What is the power supply requirement for this printer?
A: The printer requires an AC 220V±10%, 16A, 50/60 Hz power supply.
Q: What software is used for the RIP process?
A: The printer supports Rinprint and PhotoPrint RIP software.
Q: What is the operating environment for the printer?
A: The printer operates in temperatures from 59°F to 90°F (15°C to 32°C) with humidity levels of 35% to 80% (no condensation).
Q: What are the dimensions and weight of the machine?
A: The machine size is 1700x1550x1500mm and weighs 200kg (with bracket). The package size is 2000x1650x900mm and weighs 250kg (with bracket).
Q: What accessories are included with the printer?
A: Accessories include a USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, and more.
